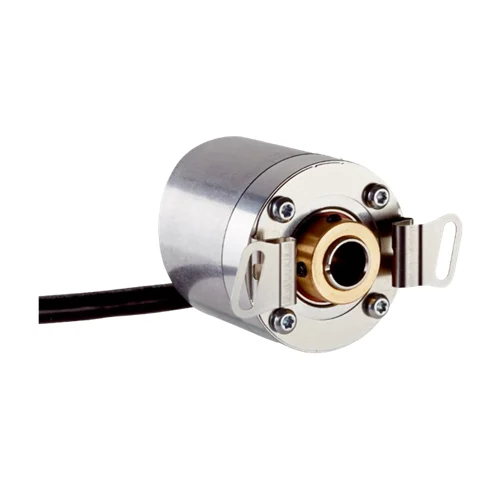

Why SICK DBS36E-BBAK00360?
The SICK DBS36E-BBAK00360 is chosen by engineers who need dependable motion feedback without adding mechanical complexity. Its blind hollow shaft design allows direct mounting onto drive shafts, reducing alignment effort and installation time. With 360 pulses per revolution, it strikes a practical balance between resolution and signal stability, making it ideal for high-speed industrial motion. Combined with robust signal output and a compact metal housing, this encoder delivers long-term reliability in machines that operate continuously under demanding conditions.
What Problem Does It Solve?
The SICK DBS36E-BBAK00360 solves the challenge of obtaining accurate, stable speed and position feedback in environments where vibration, electrical noise, and high rotational speeds can compromise standard sensors. In many machines, unreliable encoder signals lead to positioning errors, uneven motion, or unexpected downtime. This encoder provides consistent pulse output and mechanical stability, helping control systems maintain precise synchronization. As a result, it reduces motion-related faults, improves process repeatability, and supports smoother, more predictable machine operation across industrial applications.
Key Features & Specifications – SICK DBS36E-BBAK00360 (Part No. 1060525)
| Feature | Details | Benefit |
|---|---|---|
| Pulses per Revolution | 360 PPR | Balanced resolution for stable, high-speed signal processing |
| Mechanical Design | Blind hollow shaft | Fast, space-saving installation directly on motor or drive shafts |
| Shaft Diameter | 8 mm | Standard size for wide compatibility with industrial drives |
| Output Interface | TTL / RS-422 | Noise-resistant signals for long cable runs and precise control |
| Signal Channels | 6-channel (A, A-, B, B-, Z, Z-) | Accurate direction detection and reliable reference positioning |
| Maximum Output Frequency | Up to 300 kHz | Supports high-speed rotating applications without signal loss |
| Supply Voltage | 4.5 to 5.5 V DC | Stable operation with common industrial control electronics |
| Initialization Time | < 3 ms | Immediate readiness after power-up, minimizing startup delays |
| Housing Material | Aluminum | High mechanical strength and effective heat dissipation |
| Enclosure Rating | IP65 | Protection against dust and water jets in harsh environments |
| Operating Speed | Up to 6,000 rpm (max. 8,000 rpm intermittent) | Suitable for fast-moving automation and conveyor systems |
| Shock Resistance | 100 g | Reliable operation in machines with sudden movements |
| Vibration Resistance | 20 g (10–2,000 Hz) | Maintains signal integrity under continuous vibration |
| Operating Temperature Range | –20 °C to +85 °C | Consistent performance across wide industrial conditions |
| Bearing Lifetime | Up to 2 × 10⁹ revolutions | Long service life with reduced maintenance requirements |
| Electrical Protection | Short-circuit protected outputs | Improved system safety and reduced risk of electronics damage |
Download SICK DBS36E-BBAK00360 (1060525) Datasheet
Commercial Information – SICK DBS36E-BBAK00360 (Part No. 1060525)
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084320729 |
| Weight | 0.231 kg |
| Country of Origin | Malaysia |
