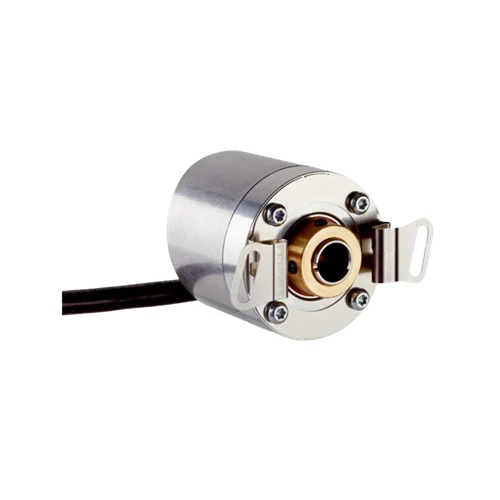

Compact SICK DBS36E-BBAK00050 incremental encoder with 50 PPR, blind hollow shaft, and TTL/RS-422 output for precise motion control in industrial automation.
The SICK DBS36E-BBAK00050 incremental encoder delivers precise 50-pulse-per-revolution feedback in a compact 36 mm housing, making it ideal for space-restricted motion control applications. Designed with a blind hollow shaft and a robust aluminum and stainless-steel build, it offers dependable performance in demanding industrial environments. Its TTL/RS-422 interface, 6-channel output, and rapid <3 ms initialization ensure fast response for real-time positioning tasks. With IP65 protection, high vibration resistance, and an operating range from –20 °C to +85 °C, this encoder provides stable feedback for conveyor systems, small automation platforms, and general-purpose rotary measurement needs.
The DBS36E-BBAK00050 encoder delivers consistent motion data with a low 0.4 Ncm operating torque and ≤300 kHz output frequency, supporting fast-moving shafts without signal distortion. Its durable bearings (rated for 2×10⁹ revolutions) and strong shock resistance enable long operational life in dynamic machines. The blind hollow shaft design simplifies installation onto motor or drive shafts, reducing downtime and improving alignment accuracy. With short-circuit-protected outputs and a stable 4.5–5.5 V supply range, it ensures reliable operation in diverse control systems. This encoder is especially effective in OEM machinery, compact drives, and light-duty automation where consistent, high-quality feedback is essential.
The DBS36E-BBAK00050 stands out because it delivers accurate motion feedback in an extremely compact and installation-friendly design. Its blind hollow shaft, fast TTL/RS-422 signals, and rugged IP65 construction make it a dependable choice for machines that demand precision without sacrificing space. It’s an encoder that quietly solves complexity while keeping your system running smoothly.
This encoder eliminates unreliable positioning by providing stable, high-quality rotary feedback even in challenging industrial environments. It solves the common issues of misalignment, vibration sensitivity, and signal noise, giving engineers a dependable measurement source for conveyors, compact drives, and automation systems. When consistent motion data is essential, this model ensures your machine always knows its exact position.
| Feature | Details | Benefit |
|---|---|---|
| Pulses Per Revolution | 50 PPR | Stable low-resolution feedback ideal for simple positioning tasks. |
| Output Interface | TTL / RS-422, 6-channel incremental | Clean, high-speed signal transmission for responsive control systems. |
| Initialization Time | < 3 ms | Fast boot-up supports systems needing immediate encoder readiness. |
| Output Frequency | ≤ 300 kHz | Handles rapid shaft speeds without signal loss. |
| Supply Voltage | 4.5 … 5.5 V | Ensures compatibility with standard low-voltage control electronics. |
| Reference Signal | 1 index pulse, gated with A & B | Supports homing and precise cycle referencing. |
| Connection Type | 1.5 m cable, 8-wire PVC | Ready-to-use wiring simplifies installation and integration. |
| Mechanical Design | 36 mm compact body, blind hollow shaft, 8 mm diameter | Fits into tight spaces and mounts easily onto drive or motor shafts. |
| Materials | Stainless steel shaft, aluminum housing | Durable construction suitable for industrial environments. |
| Torque | 0.4 Ncm operating torque | Low friction for smoother rotation and reduced load on drives. |
| Rotational Speed | Up to 6,000 rpm (max 8,000 rpm) | Supports medium-speed machinery without compromising signal quality. |
| Bearing Lifetime | 2 × 10⁹ revolutions | Long service life reduces downtime and maintenance cost. |
| Enclosure Rating | IP65 | Protection against dust and splashing water for reliable operation. |
| Temperature Range | –20 °C to +85 °C operating | Stable performance across wide industrial environments. |
| Shock Resistance | 100 g, 6 ms | Withstands harsh motion and mechanical impacts. |
| Vibration Resistance | 20 g, 10 Hz…2,000 Hz | Designed for machines with continuous high vibration levels. |
| Moment of Inertia | 0.8 gcm² rotor inertia | Faster response to speed changes and accurate dynamic feedback. |
| MTTFD | 600 years (EN ISO 13849-1) | Extremely high reliability for long-term operational safety. |
| Short-Circuit Protection | Yes, on outputs (when Us & GND correct) | Prevents accidental damage during wiring or system faults. |
Download SICK DBS36E-BBAK00050 (1079870) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084382284 |
| Weight | 0.243 kg |
| Country of Origin | Malaysia |
In modern packaging plants, products often move at high speed through filling, sealing, cutting, and inspection stages. The DBS36E-BBAK00050 can be mounted on a conveyor’s motor shaft to measure rotation and translate it into consistent timing signals. As each rotation produces a fixed number of digital pulses, the system can trigger actions like cutting film, stamping labels, or stopping bottles at the exact moment needed. Its fast response and stable TTL/RS-422 signals help maintain accurate spacing even when conveyor speeds fluctuate. This results in smoother production flow, better alignment of components, and fewer issues caused by irregular motion or slip on the belt.
Small CNC platforms and light-duty automation machinery rely on precise feedback to control tool movement or actuator travel. By attaching the encoder directly to the motor shaft, the system receives real-time data on rotation, direction, and incremental movement. The hollow-shaft design of the DBS36E-BBAK00050 makes installation simple, especially in tight spaces where standard encoders do not fit. With every pulse representing a small portion of movement, the control system can adjust feed rates, ensure consistent tool paths, and maintain stable machine behavior during rapid starts or stops. This leads to improved repeatability and higher-quality machining or assembly output.
Robotic arms and compact robotic systems need accurate rotational feedback to move smoothly between points and maintain consistent joint positions. The DBS36E-BBAK00050 provides pulse-by-pulse data that reflects the robot’s actual movement, allowing the controller to correct deviations instantly. Its resistance to vibration and shock makes it suitable for joints that experience constant acceleration and deceleration. With a low operating torque and compact construction, it fits well inside small robotic housings without adding unnecessary load. This contributes to more stable trajectories, reliable end-effector placement, and reduced wear on the robot’s drive components during repeated cycles.
Industrial lifts, vertical conveyors, and automated material transport mechanisms rely on consistent speed monitoring to ensure smooth and safe motion. When mounted on the drive shaft, the DBS36E-BBAK00050 continuously converts rotational movement into pulse signals that reflect real-time speed and direction. This allows the control system to detect overspeed conditions, manage controlled stopping, or align platforms precisely at loading points. Its strong protection against dust and vibration helps maintain stable readings even in environments with heavy mechanical movement. This leads to more predictable lift performance, reduced mechanical stress, and safer operation in facilities that handle goods continuously.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Mounting Accessory – Stator Coupling | BEF-DS-DBS36 | 2066301 | Ensures stable and accurate encoder mounting; reduces vibration and shaft misalignment impact. |
| Cable Accessory – PUR 8-Wire Shielded | LTG-2308-MWENC | 6027529 | Durable, halogen-free cable for incremental encoder signals; ideal for harsh industrial environments. |
| Cable Accessory – PUR 11-Wire Shielded | LTG-2411-MW | 6027530 | Shielded cable supporting incremental and SSI signals; suitable for longer runs and noise-sensitive setups. |
| Cable Accessory – PUR 12-Wire Halogen-Free | LTG-2512-MW | 6027531 | High-flex cable for multi-signal encoders; improved resistance to chemicals and mechanical stress. |
| Cable Accessory – UV & Saltwater Resistant 12-Wire | LTG-2612-MW | 6028516 | Heavy-duty cable for outdoor or corrosive environments; supports TTL/HTL incremental signals. |
| Connector – M12, 8-Pin Male | STE-1208-GA01 | 6044892 | Straight male connector enabling quick installation; shielded for stable incremental signal transfer. |
| Connector – M23, 12-Pin Male (Version GX) | STE-2312-GX | 6028548 | Robust connector for incremental/SSI/HIPERFACE® signals; solder terminals for secure wiring. |
| Connector – M23, 12-Pin Male (Version G01) | STE-2312-G01 | 2077273 | Reliable signal connection for advanced encoder interfaces; suitable for complex control systems. |
