USD 2,456.72

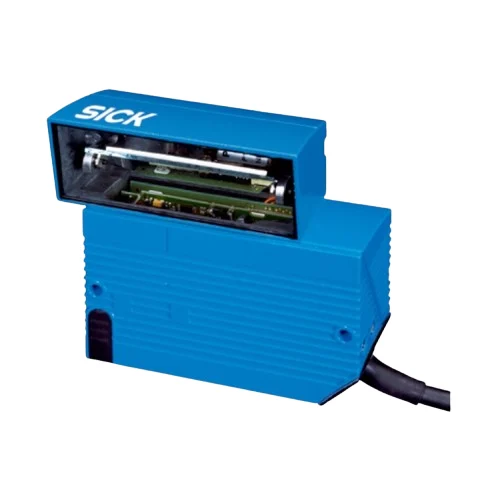

Short-range 1D fixed-focus scanner with 45-245mm sensing range, 400-1200Hz frequency, oscillating mirror, IP65 die-cast aluminum housing, and 18-30VDC power.
Short-range 1D fixed-focus scanner with 45-245mm sensing range, 400-1200Hz frequency, oscillating mirror, IP65 die-cast aluminum housing, and 18-30VDC power.
| Parameter | Value |
|---|---|
| Sensing Range | 45 mm ... 245 mm |
| Scanning Frequency | 400 Hz ... 1,200 Hz |
| Barcode Resolution | 0.2 mm ... 0.5 mm |
| Supply Voltage | 18 V DC ... 30 V DC |
| Power Consumption | 6 W |
| Light Source | Visible Red Laser (655 nm, Class 2) |
| Enclosure Rating | IP65 (EN 60529) |
| Operating Temperature | 0 °C ... +40 °C |
| Housing Material | Die-cast aluminum with glass front |
| Interfaces | CAN, RS-232, RS-422, RS-485 |
| Connection Type | 1 x 15-pin D-Sub HD male connector (0.9 m) |
| Weight | 420 g |
| Dimensions (L x W x H) | 95 mm x 107 mm x 41 mm |
| Physical Weight (kg) | 0.58 |
| Dimensions L x W x H (cm) | 9.5 x 10.7 x 4.1 |
Deployed on automated conveyor systems where parcels move at high velocities, requiring rapid and dynamic barcode identification to direct packages to correct sorting chutes.
Ensures high-speed readability and flexibility in barcode positioning using the oscillating mirror, minimizing manual intervention and read failures on moving boxes.
Installed at the end of pharmaceutical or food packaging lines to verify 1D barcodes on labels before final boxing, ensuring correct product matching and traceability.
Reliably reads compact 1D barcodes with 0.2 mm resolution within a 45 mm to 245 mm reading distance, preventing mislabeled products from reaching the supply chain.
Mounted within automated manufacturing robot cells to scan component barcodes prior to assembly. The IP65 rating protects against industrial fluids and dust.
Provides robust, short-range scanning of components in harsh industrial environments without external networking modules, communicating directly via serial interfaces.
