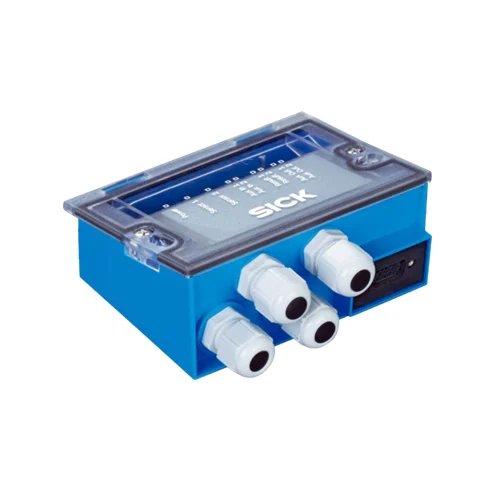

SICK 1055981 CDB730-001 TiM Connection Module

USD 190.06

TiM3xx connection module with 15-pin D-Sub HD female connector, four M16 glands and five LEDs; excludes sensors with NPN digital I/O, including S02 variants.

SKU SICK-1055981 Category
SICK CDB

SICK CDB730-001 TiM Connection Module

BrandSICK
Model IdentifierCDB730-001
Official Part Number1055981

Technical Overview

The SICK CDB730-001 connects compatible TiM3xx 2D LiDAR sensors to peripheral wiring and power through a 15-pin D-Sub HD female connector and four M16 cable glands. Its polycarbonate housing provides IP65 with the standard SICK sensor cable; NPN digital-I/O variants, including S02, are excluded.

TiM3xx peripheral/power connection module with D-Sub HD interface, four M16 glands and five LEDs, excluding NPN digital-I/O variants.

Key Features

  • Connection module for a compatible TiM3xx sensor’s peripherals and power
  • TiM31x/32x connect directly; compatible TiM35x/36x require adapter 2063181
  • NPN digital-input/output variants, including S02, are excluded
  • 15-pin D-Sub HD female sensor connector
  • Four M16 cable glands and spring terminals
  • Five LEDs: one green power and four orange output indicators
  • 9–28 V DC TiM3xx supply; SELV or PELV
  • S1 power switch; S3 sensor-ground connection fixed ON
  • No CMC, CMD, CMP or CMF expansion-module support
  • Polycarbonate housing; IP65 with standard SICK sensor connection cable

Connect a compatible TiM3xx sensor’s power and peripheral I/O through field terminals, with local power and output indications.

Technical Specification Matrix

ParameterValue
Product typeTiM3xx peripheral/power connection module
Supported configurationCompatible TiM3xx; TiM31x/32x connect directly; TiM35x/36x use adapter cable 2063181
Excluded configurationDevices with NPN digital inputs and outputs, including TiM3xx-10xxxxxS02; do not connect these to the module
Sensor connection15-pin D-Sub HD female connector
Cable glandsFour M16
Spring terminalsEight for 0.14–2.5 mm² conductors; 24 for 0.14–1 mm² conductors
Digital inputs and outputsDependent on connected sensor; module connects peripheral wiring
Expansion supportCMC cloning, CMD display, CMP power-supply and CMF fieldbus-gateway modules not supported
IndicationFive LEDs: green power with S1 ON; orange OUT1/OUT2/OUT3/OUT4 illuminate when corresponding TiM3xx output switches
Power supply9–28 V DC for TiM3xx; SELV or PELV to IEC 60364-4-41
Input currentMaximum 2.4 A at UIN terminals
Fuse0.8 A slow-blow glass tube fuse for UIN*, switched through S1
Configuration switchesS1 power ON by default; S3 SGND-to-sensor-GND connection fixed ON
Configuration softwareSOPAS ET
Housing materialPolycarbonate
Housing colorLight-blue base, RAL 5012; neutral partially transparent cover
Cover mountingCover can be removed, rotated 180° and locked in park position
Maximum mounting screw diameter4 mm
IP ratingIP65 with standard SICK sensor connection cable
Protection classIII
Electrical safetyIEC 61010-1:2010 + Cor.:2011
Operating temperature0 to +40 °C
Storage temperature−20 to +70 °C
Humidity conditionNon-condensing
EMC emissionEN 61000-6-3:2007-01/A1:2011-03
EMC immunityEN 61000-6-2:2005-08
Dimensions L x W x H (cm)12.42 x 11.31 x 5.39
