Name: SICK CDB650-204 1064114 Junction Box - INOSAKI
SKU: SICK-1064114
Price: 397.76 USD
Availability: InStock

Technical Overview

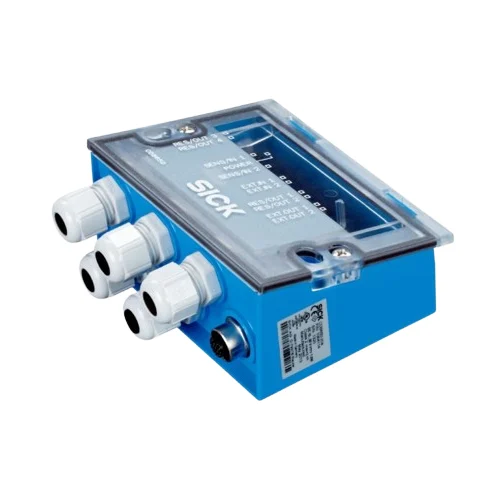

SICK CDB650-204 junction box (1064114) connects 1 sensor with a 2A fuse. Features RS-232/422/485 serial support, an IP65 housing, and a 17-pin M12 port.

Key Features

Integrates a single SICK sensor (CLV scanners, Lector, RFID, InspectorP) with a dedicated 2A fuse for secure power delivery.
Equipped with a 17-pin M12 A-coded socket for main device connection and an internal 9-pin D-Sub port for configuration.
Supports multiple communication standards including RS-232, RS-422, RS-485, and CAN (dependent on the connected sensor capabilities).
Constructed from durable polycarbonate with an IP65 rating, effectively blocking dust and low-pressure water ingress.
Features 5 built-in cable glands and high-density spring-loaded/screw terminals for neat and secure field IO wiring.
Includes 11 integrated LED optical indicators that provide immediate visual feedback for power, data traffic, and system status.
Compatible with Cloning Module (CMC) upgrades, allowing for immediate hardware parameter restoration during sensor replacement.

Technical Specification Matrix

Parameter	Value
Supply Voltage	10 V DC ... 30 V DC
Power Consumption	1 W
Sensor Power Protection	2 A fuse
Scanner Connection	1 x 17-pin M12 female connector, A-coded
Service Interface	1 x 9-pin D-Sub plug (internal)
Serial Interfaces	RS-232, RS-422, RS-485 (sensor dependent)
Fieldbus/Network	CAN (sensor dependent)
Housing Material	Polycarbonate
Enclosure Rating (IP)	IP65
Ambient Operating Temperature	-40 °C ... +50 °C
Cable Glands	5 integrated glands
Terminals	Spring-loaded (0.14 mm² to 2.5 mm²)
Physical Weight (kg)	0.27
Dimensions L x W x H (cm)	12.42 x 11.31 x 5.39

Industrial Applications

1. Automated Conveyor Barcode Scanning Station

In logistics and automated sorting centers, the CDB650-204 connects a SICK CLV63x or CLV64x barcode scanner to the primary serial network. The built-in 2A fuse protects the scanner, while the integrated 17-pin M12 connection removes the need for complex wire splicing, facilitating rapid deployment and maintenance of high-speed tracking nodes.

Problem Solved

Eliminates the complexity and vulnerability of custom-spliced sensor wiring in high-vibration conveyor systems, providing a secure, plug-and-play hub with electrical fault protection.

17-pin M12RS-232/RS-422CLV6xx scanners2A fuse protection

2. Industrial RFID Gateway for Pallet Tracking

In automotive or heavy manufacturing, this junction box safely integrates a SICK RFU63x or RFU65x RFID reader. Its IP65-rated polycarbonate enclosure shields the delicate internal terminal connections from airborne factory dust and cutting fluid vapor, cleanly passing pallet identification data via RS-485 or CAN to the centralized PLC.

Problem Solved

Prevents environmental contamination of electrical terminals while cleanly routing fieldbus data and DC power to industrial RFID sensors.

IP65 ratedPolycarbonate housingRFID read/writeCAN interface

3. Machine Vision Quality Control Node

Deployed alongside SICK InspectorP 2D machine vision cameras, the connection module provides regulated 10V-30V DC power and centralizes input/output signals for sorting actuators. The 11 diagnostic LEDs offer line operators immediate, visual status confirmation of the vision camera's power and data traffic without requiring software interrogation.

Problem Solved

Provides accessible hardware-level diagnostics (via LEDs) and secure I/O terminal management for machine vision cells, bypassing the need for a technician to connect a PC to verify basic sensor health.

Optical indicatorsSpring-loaded terminals10-30V DCInspectorP vision
