$ 1,202.90
Enhance machine safety with the SICK C40S-1004CA010 light curtain. Reliable Type 4 protection, 21 m range, and SIL 3 certified for industrial automation.

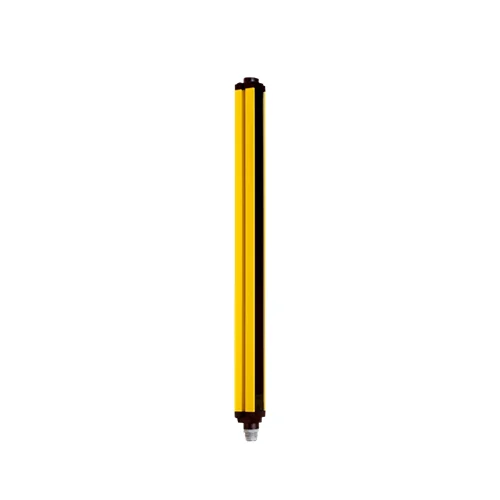

The SICK C40S-1004CA010 Safety Light Curtain, part of the C4000 Advanced series, provides reliable protection for personnel and machinery in automated environments. With a protective field height of 1,050 mm, 40 mm resolution, and a scanning range reaching 21 meters, it ensures precise detection of hazardous zones. Built for demanding industrial conditions, it meets Type 4, SIL 3, and PL e safety standards, offering a high level of risk reduction. Its rugged aluminum housing and IP65-rated enclosure make it suitable for factory floors, ensuring consistent operation and long-term durability.
The C4000 Advanced C40S-1004CA010 combines dependable sensing with smart control features for enhanced safety management. Equipped with optical synchronization, restart interlock, and external device monitoring, it supports flexible system integration. The optional UE402 module adds functionality such as mode switching and bypass for complex automation setups. A built-in display provides clear status feedback, making installation and maintenance straightforward. Designed for production lines, robotic stations, and material handling systems, this light curtain minimizes downtime, prevents accidents, and improves productivity through intelligent, fail-safe performance.
Why SICK C40S-1004CA010?
Choose the SICK C40S-1004CA010 for its fusion of intelligence, precision, and reliability. Engineered for modern automation, it protects workers while maintaining productivity. Its long-range detection, fast response, and rugged build make it the go-to solution for factories that demand safety without slowing performance — a perfect blend of innovation and industrial endurance.
What Problem Does It Solve?
The C40S-1004CA010 solves the critical challenge of balancing human safety with operational efficiency. It eliminates the risk of injury in hazardous machine zones by instantly detecting intrusions into the safety field, halting machinery before harm occurs. This ensures smooth, safe production across robotics, packaging, and assembly environments — safeguarding people and maximizing uptime simultaneously.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Safety Light Curtain – C4000 Advanced Series | Provides advanced personnel and machine protection in industrial settings. |
| Protective Field Height | 1,050 mm | Covers large working areas for reliable operator safety. |
| Resolution | 40 mm | Detects human presence or body parts for maximum protection compliance. |
| Scanning Range | Up to 21 m | Suitable for medium to large safety zones and long machine distances. |
| Safety Level | Type 4 (IEC 61496-1), SIL 3, PL e, Category 4 | Ensures the highest level of safety certification for critical operations. |
| Synchronization | Optical synchronization | Simplifies wiring and setup while reducing installation costs. |
| Functions | Restart interlock, EDM, beam coding | Prevents accidental restarts and ensures system reliability. |
| Configurable Range | 0 m to 6 m (adjustable) | Flexible setup for customized machine layouts. |
| Operating Voltage | 24 V DC (19.2–28.8 V) | Standard industrial power compatibility. |
| Display | 7-segment display | Quick visual feedback during operation and diagnostics. |
| Communication | EFI safe device communication | Enables advanced connection to safety controllers. |
| Enclosure Rating | IP65 | Resistant to dust and water, ideal for harsh environments. |
| Housing Material | Aluminum extruded profile | Durable and lightweight for long-term industrial use. |
| Ambient Temperature | 0 °C to +55 °C | Reliable operation across diverse environmental conditions. |
| Vibration Resistance | 5 g (10–55 Hz) | Withstands mechanical stress in high-speed machinery. |
| Shock Resistance | 10 g (16 ms) | Maintains performance under operational impact conditions. |
| Cable Connection | M26, 12-pin Hirschmann connector | Ensures secure, easy connection to control systems. |
| Certificates | CE, UKCA, UL, cUL, China-RoHS | Meets global industrial safety and quality standards. |
Download SICK C40S-1004CA010 (1018667) Datasheet
| Commercial Data | Description |
|---|---|
| EAN Number | 4047084169861 |
| Weight | 2.483 kg |
| Country of Origin | Germany |
In a metal fabrication plant, operators work closely with large brake presses where any unguarded motion can cause severe injury. The SICK C4000 Advanced is installed along the press front to create a light barrier that halts movement instantly if a hand enters the danger zone. Its 40 mm resolution ensures fine detection accuracy, while floating blanking allows parts to be positioned safely within the field. This configuration provides robust protection without interrupting the workflow, enhancing both safety and productivity in metal-forming environments.
Robotic work cells require a delicate balance between access flexibility and safety. The C4000 Advanced provides this by using PSDI mode and external device monitoring, ensuring the robot only activates when no object or person is in the monitored zone. During part changes or manual interventions, the curtain maintains a controlled stop condition. Its optical synchronization minimizes wiring complexity, while the durable aluminum housing endures vibration from moving robotic arms — making it a dependable safeguard for collaborative or automated operations.
In fast-moving packaging or palletizing systems, materials often pass through shared zones between humans and machines. The C40S-1004CA010 enables muting and blanking functions so pallets or boxes can move freely while still preventing human entry. Its 1,050 mm protective height and IP65 protection make it ideal for dusty or humid warehouse conditions. By allowing uninterrupted throughput with safety intact, it solves the challenge of combining efficiency with reliable personnel protection on high-speed logistics lines.
Machine tools and hydraulic presses with tight access areas require compact yet high-performance safety systems. The SICK C4000 Advanced mounts easily on small enclosures thanks to its 48 × 40 mm aluminum profile. Its fast response time and high vibration resistance ensure dependable operation even under heavy mechanical loads. By stopping motion the instant an object breaks the beam, it prevents operator injury and reduces costly downtime — a critical factor in continuous manufacturing and precision machining applications.
| Category | Manufacturer Part Number | Model / Article Number | Benefit |
|---|---|---|---|
| Extension Module | UE402 | 1023577 | Expands the safety system capabilities of the C4000 Advanced, allowing flexible configuration in complex automation environments. |
| Cleaning & Maintenance | Lens Cloth | 4003353 | Keeps optical surfaces clean for precise and consistent detection. |
| Mounting Kit – Side Bracket (Rotatable) | BEF-1SHABAZN4 | 2019506 | Simplifies alignment and ensures stable mounting in vibration-prone areas. |
| Mounting Kit – Swivel Mount | BEF-2SMMEAKU4 | 2019659 | Provides flexible positioning of sender and receiver for accurate beam alignment. |
| Mounting Kit – L-Shaped Rigid Bracket | BEF-3WNGBAST4 | 7021352 | Offers reliable and fixed installation for high-vibration machines. |
| Stainless Steel Bracket (Rotatable) | BEF-2SMMEAES4 | 2023708 | Suitable for food, beverage, or cleanroom environments due to corrosion resistance. |
| Omega Bracket | BEF-2SMMEAAL4 | 2044847 | Enables fast installation and alignment adjustment, saving setup time. |
| Laser Alignment Aid | AR60 | 1015741 | Simplifies installation, ensuring accurate beam positioning over long distances. |
| Adapter for 48×40 mm Housing | AR60 Adapter | 4032461 | Provides secure fitment for laser alignment tools and accessories. |
| Sensor/Actuator Cable – 5 m | DOL-0612G05M075KM0 | 2022545 | Connects light curtain to safety controller reliably for short installations. |
| Sensor/Actuator Cable – 10 m | DOL-0612G10M075KM0 | 2022547 | Ideal for machines with medium-range controller distance. |
| Sensor/Actuator Cable – 15 m | DOL-0612G15M075KM0 | 2022548 | Ensures stable connection and power delivery across wider layouts. |
| Sensor/Actuator Cable – 20 m | DOL-0612G20M075KM0 | 2022549 | Provides connection flexibility when the control cabinet is located farther away. |
| System Plug (Straight, Female) | DOS-0612G000GA3KM0 | 6020757 | Ensures reliable, secure wiring to the safety system. |
| System Plug (Angled, Female) | DOS-0612W000GA3KM0 | 6020758 | Offers compact cable routing and space-saving design. |
| System Plug (Straight, Male) | STE-0612G000GA3KM0 | 6021191 | Provides strong and stable connection to sender or receiver unit. |
| System Plug (Angled, Male) | STE-0612W000GA3KM0 | 6021192 | Ideal for control panels or enclosures with restricted access space. |
