$ 388.24
High-precision SICK AFS60E-S4AM004096 absolute encoder with 12-bit resolution, durable shaft design, and reliable SSI feedback for advanced motion control.

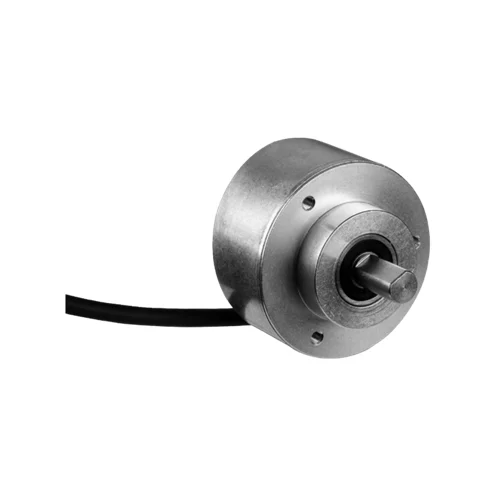

The SICK AFS60E-S4AM004096 absolute encoder is a compact 60 mm rotary feedback device designed for applications that demand stable, high-accuracy angular positioning. Delivering 4,096 steps per revolution (12-bit resolution) and fast SSI communication, it provides dependable position data even after power interruptions. Its robust mechanical build with a 10 mm solid stainless-steel shaft and sealed housing ensures consistent operation in challenging environments. Engineered for modern automation systems, the encoder addresses common motion-control problems such as drift, misalignment, and inconsistent repeatability while supporting a wide supply voltage range for flexible integration.
Designed for demanding industrial motion tasks, the AFS60E-S4AM004096 supplies precise angular feedback with excellent repeatability and minimal deviation, helping machines maintain stable trajectories and synchronized movements over long cycles. Its fast signal response supports dynamic equipment such as conveyors, robotic joints, and high-speed motors. The rugged aluminum die-cast housing and stainless-steel shaft enhance durability, reducing maintenance stops in vibration-prone production lines. With strong resistance to shock, humidity, and temperature fluctuations, the encoder performs reliably in environments where other sensing technologies may degrade. Electronic adjustment features simplify commissioning, allowing technicians to fine-tune settings quickly during installation or routine servicing.
The SICK AFS60E-S4AM004096 combines precision, speed, and rugged engineering into a compact encoder built for demanding motion-control systems. Its high resolution and exceptional repeatability ensure every rotation is captured with clarity, while the durable shaft and sealed housing maintain accuracy in harsh environments. It’s the ideal choice when absolute reliability is non-negotiable.
This encoder eliminates uncertainty in angular positioning by delivering consistent, drift-free feedback even after power loss or rapid machine movements. It solves challenges like misalignment, vibration-induced errors, and unstable motion tracking, enabling machines to maintain smooth, synchronized operation. It gives engineers confidence that every movement starts and ends exactly where it should.
| Feature | Details | Benefit |
|---|---|---|
| Resolution | 4,096 steps per revolution (12-bit) | High positional accuracy for precise motion control |
| Interface | SSI communication | Stable, noise-resistant data transmission in industrial environments |
| Position Response Time | < 1 µs | Ideal for fast-moving systems requiring real-time feedback |
| Initialization Time | 50 ms | Quick startup ensures minimal delay during machine boot cycles |
| Code Type | Gray code | Reduces bit-transition errors and improves reliability |
| Direction Parameter | CW/CCW configurable | Flexible integration into different machine designs |
| Electronic Adjustment | SET function | Faster commissioning and easy recalibration during maintenance |
| Supply Voltage | 4.5–32 V | Wide compatibility with various control systems |
| Power Consumption | ≤ 0.7 W | Low energy usage for efficient system design |
| Mechanical Design | Solid shaft, face-mount flange | Durable and stable connection to rotating equipment |
| Shaft Dimensions | 10 mm diameter, 19 mm length | Standardized sizing for broad compatibility |
| Shaft Material | Stainless steel | High resistance to wear and corrosion |
| Housing Material | Aluminum die-cast | Lightweight yet robust for long operational life |
| Enclosure Rating | IP65 (shaft side), IP67 (housing side) | Strong protection against dust and moisture |
| Operating Speed | ≤ 9,000 rpm | Suitable for high-speed machinery |
| Repeatability | 0.002° | Excellent consistency for precise angular feedback |
| Error Limit | 0.2° | Minimal deviation for accurate positioning |
| Shock Resistance | 50 g, 6 ms | Reliable performance under sudden impacts |
| Vibration Resistance | 20 g, 10–2,000 Hz | Stable sensing in high-vibration industrial setups |
| Operating Temperature | 0°C to +85°C | Supports a wide range of industrial environments |
| Cable Connection | 8-wire, 5 m universal cable | Easy routing and installation flexibility |
| MTTFD | 250 years | Very high reliability for long-term service cycles |
| Certificates | CE, UL, UKCA, cULus, China RoHS | Globally accepted for regulated markets |
Download SICK AFS60E-S4AM004096 (1037634) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084283581 |
| Weight | 0.518 kg |
| Country of Origin | Germany |
Automated packaging equipment depends on perfectly timed conveyor movements to position products for sealing, labeling, or inspection. The AFS60E-S4AM004096 supports this by providing stable, high-resolution angular data that stays accurate even when machines restart or change speed. Its fast signal response helps the controller correct timing instantly, preventing items from drifting away from alignment points. Because conveyors often run at high speed and generate vibration, the encoder’s reinforced shaft and sealed construction ensure dependable readings throughout the process. This consistent positional tracking helps packaging lines maintain efficiency, reduce misaligned packs, and minimize stoppages caused by drifting synchronization.
Robotic arms used in assembly and material-handling tasks rely on precise feedback to repeat movements without accumulating error. The AFS60E-S4AM004096 offers high repeatability and smooth position updates, allowing joint angles to remain stable even during complex multi-axis motion. Its Gray-code output helps prevent data misreads when the arm shifts direction suddenly or turns at high acceleration. The robust mechanical housing supports continuous duty cycles where oil mist, dust, or vibration might impair lesser sensors. With consistent absolute positioning available at every restart, the robot avoids re-homing and maintains accurate trajectories over long production runs, improving cycle speed and reducing mechanical wear.
CNC rotary tables require precise angular tracking to position workpieces accurately before machining operations. The AFS60E-S4AM004096 provides high-resolution absolute data that stays consistent during rapid indexing, enabling smooth rotations without overshoot. Because the encoder preserves its position after power interruption, operators save time by avoiding recalibration before each machining cycle. CNC environments often produce shock loads and intense vibration, yet the encoder’s durable shaft and sealed housing maintain stable measurements. This reliability is essential for multi-sided machining, where even minor rotational drift can lead to dimensional inaccuracies. By maintaining exact rotation angles, the encoder helps machines achieve tighter tolerances and better surface quality.
Autonomous mobile robots and AGVs rely on accurate wheel and steering feedback to follow paths, execute tight turns, and correct deviations caused by uneven flooring. The AFS60E-S4AM004096 supports these tasks with fast, high-resolution angle feedback that allows the control system to react immediately when movement changes. Its sealed construction protects the sensing components from dust and humidity commonly found in warehouses or cold storage areas. Because the encoder provides absolute position, the vehicle maintains correct orientation even after interruptions or power cycles. This consistency improves route accuracy, reduces drift during long travel distances, and enhances overall fleet performance in busy logistics environments.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Shaft Coupling | KUP-0610-B | 5312982 | High torsional stiffness for precision and stable rotary feedback |
| KUP-0610-D | 5326697 | Flexible dual-loop design absorbs misalignment and reduces stress on shafts | |
| KUP-0610-F | 5312985 | Lightweight membrane structure ideal for compact precision setups | |
| KUP-0610-S | 2056407 | Durable bar coupling for smooth torque transfer in automation | |
| KUP-0610-J | 2127056 | Elastomer damping reduces vibration impact and improves signal stability | |
| KUP-0810-D | 5326704 | Enhanced axial/radial offset handling for dynamic machinery | |
| KUP-0810-S | 5314178 | Robust polymer-metal hybrid design for industrial duty cycles | |
| KUP-0810-J | 2128267 | Jaw coupling with damping insert for high-speed, shock-prone systems | |
| KUP-1010-B | 5312983 | Precision bellows coupling for high-speed, low-backlash applications | |
| KUP-1010-D | 5326703 | Flexible double-loop coupling for absorbing mechanical misalignment | |
| KUP-1010-F | 5312986 | Stable torque transfer with reinforced membrane structure | |
| KUP-1010-S | 2056408 | Consistent performance for high-speed applications requiring low vibration | |
| KUP-1010-J | 2127054 | Shock-resistant jaw design suitable for demanding mechanical loads | |
| KUP-1010-W | 5319914 | Spring coupling allowing greater shaft offset without stressing bearings | |
| KUP-1012-B | 5312984 | High-precision bellows coupling for larger shaft combinations | |
| KUP-1012-D | 5326702 | Offset-tolerant double-loop coupling for 10/12 mm shafts | |
| KUP-1012-J | 2128265 | Vibration-damping claw design for high-speed 10/12 mm systems | |
| Mounting System | BEF-WK-SF | 2029166 | Secure servo clamp for stable encoder attachment |
| BEF-FA-036-100 | 2029161 | Converts 36 mm face mount to 100 mm servo flange for versatile installation | |
| Connector | STE-2312-G | 6027537 | Shielded M23 connector ensuring noise-resistant SSI signaling |
| STE-2312-GX | 6028548 | Enhanced mechanical durability for industrial encoder wiring | |
| STE-2312-G01 | 2077273 | Reliable communication for SSI and incremental signals | |
| Cable | STE-1208-GA01 | 6044892 | Shielded M12 cable delivering stable incremental signal transmission |
