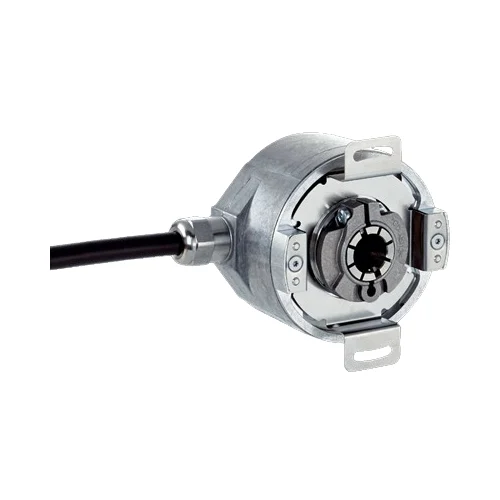

SICK AFM60B-TGKK032768 absolute encoder delivers 15-bit single-turn, 12-bit multi-turn precision for reliable motion control in demanding automation systems.
The SICK AFM60B-TGKK032768 Absolute Encoder is engineered for high-accuracy position detection in automated systems. It features 15-bit single-turn and 12-bit multi-turn resolution, offering up to 32,768 steps per revolution with exceptional repeatability. Designed with a through-hollow 14 mm stainless-steel shaft and durable die-cast aluminum housing, it withstands continuous operation in industrial environments. With SSI and Sin/Cos output interfaces, the encoder provides fast, stable feedback ideal for use in robotics, packaging machinery, and servo systems where consistent precision is essential.
The AFM60B-TGKK032768 combines high-resolution feedback with long-term durability to improve motion accuracy and system reliability. Its compact form and radial cable connection allow easy integration into tight mechanical layouts. Built to perform across temperatures from –40 °C to +100 °C, it maintains reliable output even under vibration and high speed. The electronic set function simplifies commissioning, while adjustable direction parameters reduce setup time. With low power consumption and protection up to IP67, this encoder ensures efficient, maintenance-free operation, delivering precise control and smoother motion in automated production lines.
Why SICK AFM60B-TGKK032768?
The SICK AFM60B-TGKK032768 stands out for its exceptional precision and rugged design. With high-resolution multi-turn capability, a durable hollow-shaft build, and versatile SSI + Sin/Cos outputs, it ensures reliable performance even in tough industrial conditions—making it the preferred choice for engineers demanding accuracy, stability, and long service life in motion control systems.
What Problem Does It Solve?
This encoder eliminates common positioning errors and signal instability found in lower-grade feedback devices. By delivering consistent absolute position data—even after power loss—it ensures machines restart with exact alignment. The result is smoother synchronization, reduced downtime, and precise motion control in applications like robotics, conveyors, and servo-driven automation systems.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Absolute Multi-Turn Encoder (SSI + Sin/Cos) | Ensures continuous, accurate position feedback even after power interruptions. |
| Resolution | 15-bit single-turn (32,768 steps) × 12-bit multi-turn (4,096 revolutions) | Delivers extremely fine angular precision for smooth motion control. |
| Shaft Design | 14 mm Through-Hollow Shaft, Stainless Steel | Allows flexible installation and high mechanical strength. |
| Housing Material | Aluminum Die-Cast | Offers superior protection with lightweight and durable structure. |
| Interface | SSI and Sin/Cos incremental output | Enables high-speed, low-latency communication with modern controllers. |
| Power Supply | 4.5 V … 32 V DC | Compatible with a wide range of automation systems. |
| Output Frequency | Up to 200 kHz | Supports fast position updates for high-speed operations. |
| Accuracy | ±0.05° error limit, repeatability 0.002° | Guarantees stable and repeatable measurement for precision tasks. |
| Torque | Start-up < 0.8 Ncm, Operating < 0.6 Ncm | Low torque ensures energy-efficient performance. |
| Speed Capability | Up to 9,000 rpm | Suitable for demanding rotary motion applications. |
| Protection Rating | IP65 (shaft side), IP67 (housing side) | Resistant to dust and moisture, ideal for harsh environments. |
| Operating Temperature | –40 °C to +100 °C | Performs reliably across extreme temperature ranges. |
| Vibration & Shock Resistance | 30 g vibration, 70 g shock | Built for stable performance under mechanical stress. |
| Weight | Approx. 0.2 kg | Lightweight yet rugged for easy integration. |
| Certifications | CE, UKCA, cULus, RoHS compliant | Meets international safety and environmental standards. |
| Connection Type | 12-wire radial cable, 1.5 m | Simplifies wiring and installation in compact layouts. |
Download SICK AFM60B-TGKK032768 (1069405) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084313974 |
| Weight | 0.375 kg |
| Country of Origin | Germany |
In advanced robotic assembly systems, every motion requires pinpoint accuracy to maintain efficiency and reduce alignment errors. The AFM60B-TGKK032768 delivers stable position feedback across multiple axes, ensuring consistent control even during long production shifts. Its high-resolution multi-turn capability prevents loss of reference when powered off, allowing seamless operation after restarts. This precision supports complex assembly tasks such as semiconductor component placement and automated fastening in compact manufacturing cells.
High-speed pick and place machines depend on real-time synchronization between conveyors and robotic arms. The AFM60B encoder provides precise shaft position data, allowing robots to time their movements perfectly with conveyor speed. Its low signal latency and reliable SSI + Sin/Cos interface enhance tracking accuracy, reducing missed pickups and increasing throughput. The encoder’s resilience against vibration and shock makes it ideal for dynamic industrial motion applications.
Rotary tables and additional CNC axes require exact angular measurement for consistent machining results. The AFM60B’s fine resolution and repeatability enable precise tool positioning and rotation, minimizing material waste and ensuring surface uniformity. Its rugged housing and stainless-steel shaft withstand the stresses of cutting vibrations and coolant exposure. By maintaining stable feedback during rapid rotations and pauses, it ensures reliable indexing and long-term mechanical integrity in demanding workshop conditions.
Solar trackers and renewable energy mechanisms rely on accurate angular positioning to maximize energy efficiency. The AFM60B encoder continuously reports precise shaft position, enabling panels or turbines to adjust smoothly with environmental changes. Its multi-turn memory retains orientation even after power interruptions, removing the need for recalibration at sunrise or restart. The wide temperature range and robust sealing allow dependable outdoor performance, ensuring energy systems remain efficient and low-maintenance year-round.
| Category | Model Name | Part Number | Description | Compatibility / Benefit |
|---|---|---|---|---|
| Connectors and cables | STE-2312-G | 6027537 | M23, 12-pin, straight connector, A-coded | Provides secure, shielded connection for SSI and incremental signal output. |
| STE-2312-GX | 6028548 | M23, 12-pin, shielded connector, A-coded | Offers reliable EMI protection and stable signal transmission in high-noise environments. | |
| STE-2312-G01 | 2077273 | M23 solder-type connector for SSI/RS-422 | Ensures durable connection and minimal signal interference with AFM60B encoders. |
