Name: SICK AFM60A-BBNB018x12 PROFINET Absolute Encoder - INOSAKI Automation Components
SKU: SICK-1059038
Price: 888.95 USD
Availability: InStock

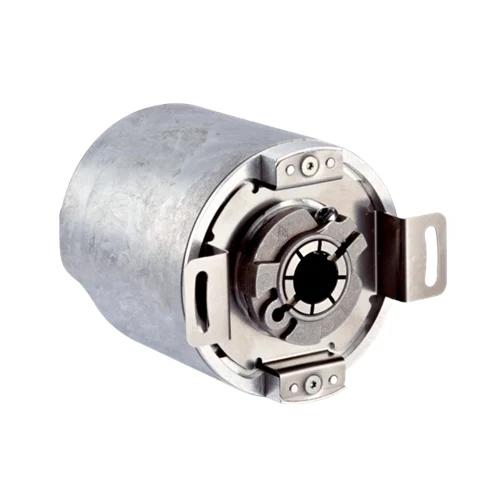

SICK AFM60A-BBNB018x12 Absolute Encoder with PROFINET Connectivity

The SICK AFM60A-BBNB018x12 Absolute Encoder offers highly accurate position and speed measurement for advanced motion control systems. With 18-bit single-turn and 12-bit multi-turn resolution, it can detect even the smallest movements across 4,096 revolutions, delivering consistent performance in precision-driven industries. The device’s rugged aluminum housing, IP65/67 protection, and broad operating temperature range (-40°C to +85°C) ensure stability in demanding conditions. Supporting PROFINET Class 3, it allows seamless communication within industrial networks, making it a reliable choice for automation environments requiring fast, stable, and synchronized feedback.

The AFM60A-BBNB018x12 encoder enhances automation reliability by providing precise digital feedback for controlling motors, conveyors, and robotic systems. Its blind hollow shaft design allows direct mounting on machine shafts, reducing mechanical complexity and maintenance effort. The encoder’s high repeatability (0.002°) ensures smooth motion even in high-speed operations. Designed for energy efficiency, it operates on 10–30 V DC with ≤3 W consumption, extending equipment lifespan. Built-in diagnostic functions—such as temperature tracking and motion counters—enable predictive maintenance, reducing downtime and improving productivity in manufacturing, logistics, and packaging automation.

Why SICK AFM60A-BBNB018x12?
Because precision matters. The SICK AFM60A-BBNB018x12 combines cutting-edge resolution with rock-solid reliability, delivering intelligent motion feedback for today’s smart factories. Its PROFINET connectivity, robust aluminum build, and high repeatability make it a trusted performer in applications where every fraction of a degree defines success.

What problem does it solve?
This encoder eliminates the uncertainty in position and speed control that can disrupt automated operations. It replaces guesswork with absolute accuracy, ensuring smooth synchronization across machines and processes. By offering real-time data and diagnostic insights, it prevents costly downtime and enables seamless integration into advanced motion control systems.

Key Features & Specifications – SICK AFM60A-BBNB018x12: Article Number 1059038

Feature	Details	Benefit
Resolution	18-bit single-turn (262,144 steps) / 12-bit multi-turn (4,096 revolutions)	Delivers ultra-fine measurement accuracy and consistent position tracking
Interface	PROFINET (Class 3, V4.1)	Ensures fast, synchronized, and reliable data exchange within automation networks
Cycle Time	≤ 1 ms	Provides real-time feedback for high-speed motion control
Power Supply	10 – 30 V DC	Compatible with a wide range of industrial systems and PLCs
Power Consumption	≤ 3 W	Energy-efficient operation reduces power costs and heat generation
Connection Type	M12 connectors (1× male, 2× female, axial)	Secure and simple connection suitable for industrial environments
Mechanical Design	Blind hollow shaft, 8 mm diameter	Easy installation directly on motor or machine shafts without coupling
Housing Material	Aluminum housing with stainless steel shaft	Durable design ensuring long service life under demanding conditions
Protection Class	IP65 (shaft side), IP67 (housing side)	Resistant to dust, moisture, and vibration, ideal for harsh environments
Operating Temperature	−40 °C to +85 °C	Reliable operation across a wide temperature range
Repeatability	0.002° standard deviation	Guarantees precise position feedback even in high-speed applications
Shock / Vibration Resistance	100 g / 30 g (EN standards)	Maintains accuracy and stability under mechanical stress
Bearing Lifetime	3 × 10⁹ revolutions	Long operating life for continuous-duty applications
Certifications	CE, UKCA, cTUVus, PROFINET, RoHS	Meets international quality, safety, and communication standards
Typical Applications	Robotics, packaging machines, conveyors, material handling	Enhances precision and uptime in dynamic industrial systems

Download SICK AFM60A-BBNB018x12 (1059038) Datasheet

Commercial Information – SICK AFM60A-BBNB018x12: Article Number 1059038

Commercial Data	Details
EAN Number	4047084301117
Weight	0.339 kg
Country of Origin	Germany

The Applications

1. Robotic Arm Precision Control

In advanced robotic assembly systems, the AFM60A-BBNB018x12 encoder ensures flawless joint feedback and orientation tracking. Its 18-bit single-turn and 12-bit multi-turn resolution provides exact angular positioning, eliminating drift and improving accuracy over long production cycles. Even after power interruptions, the encoder retains its position data, minimizing setup time. Integrated PROFINET communication enables instant feedback to the robot controller, ensuring synchronized, smooth, and repeatable motion in high-speed automation environments.

2. High-Speed Packaging Line Synchronization

On automated packaging lines where sealing, labeling, and cutting must occur in perfect sequence, the AFM60A encoder ensures precise synchronization between conveyors and machine modules. Its fast update rate (≤1 ms) supports real-time control for continuous material flow. The IP65/67 protection rating and durable aluminum housing safeguard against dust, moisture, and vibration, making it ideal for long operating hours in production areas that demand consistency and hygiene.

3. Automated Warehouse and Conveyor Systems

In warehouse automation, turntables and vertical lifts rely on accurate encoders to track positioning for pallets and bins. The blind hollow shaft of the AFM60A-BBNB018x12 simplifies mechanical integration by mounting directly onto rotating shafts, removing the need for couplers. The encoder’s diagnostic functions—such as temperature and motion counters—support predictive maintenance. This ensures minimal downtime, reduced wear, and reliable operation in high-cycle material handling systems.

4. Precision in CNC Machine Tool Spindles

CNC machines require continuous monitoring of spindle angles and rotational speeds to maintain machining accuracy. The AFM60A-BBNB018x12 provides stable, high-resolution feedback across 4,096 revolutions, maintaining exact positioning during multi-step operations. Its robust design and vibration resistance make it suitable for challenging manufacturing environments. With PROFINET connectivity, spindle positions are instantly communicated to controllers, optimizing tool alignment and improving surface finish quality during complex machining processes.

Related Products & Accessories – Compatible with SICK AFM60A-BBNB018x12 (Article No. 1059038)

Category	Part Number	Manufacturer Part Number	Purpose / Benefit
Ethernet / PROFINET Cables	6059450	SSL-2J04-F30MZ	Enables high-speed, interference-free PROFINET communication for the encoder.
	2106175	YN2D24-050P-N1XLEAX	Ideal for drag-chain applications, offering flexibility and durability in moving machinery.
	2106185	YM2D24-100P-N1MRJA4	Connects encoder directly to PLCs or industrial switches for real-time data transmission.
Sensor / Actuator Cables	2095608	YF2A14-050UB3XLEAX	Provides stable signal and power connections in automation and robotics.
Sensor / Actuator Cables	2095768	YG2A14-100UB3XLEAX	Compact cable solution for tight spaces and dynamic machine movements.
Mounting Systems	2029160	BEF-FA-036-050	Simplifies installation of the encoder onto servo motor flanges.
Mounting Systems	2034225	BEF-FA-036-063REC	Provides versatile mounting options across multiple machine configurations.
Stator Couplings	2056812	BEF-DS00XFX	Reduces vibration and compensates for alignment errors between connected shafts.
Stator Couplings	2059368	BEF-DS07XFX	Ensures precise, stable mechanical alignment for rotary encoder applications.
Clamping / Fixing Accessories	2064709	BEF-KR-M	Secures the encoder shaft connection, preventing movement or slippage.
Measuring Wheels (Optional)	2055224	BEF-MR010020R	Converts rotary motion into linear displacement for conveyor or roll measurement.
Measuring Wheels (Optional)	2049278	BEF-MR010030R	Provides extended linear measurement range for slower-moving mechanical systems.
Replacement O-Rings	2064076	BEF-OR-083-050	Maintains reliable surface traction for consistent measurement performance.
