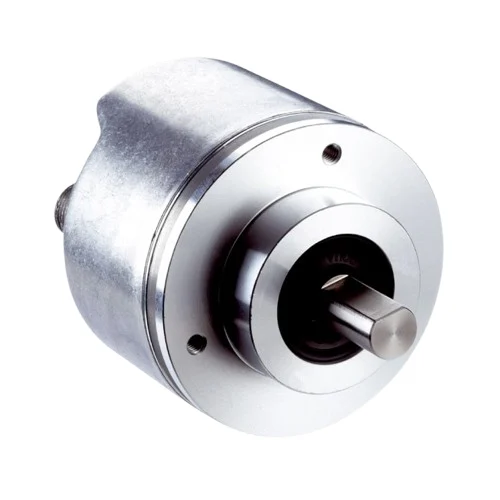

Name: SICK A3M60B-S4PB013x13 Absolute Encoder - INOSAKI
SKU: SICK-1038826
Price: 836.07 USD
Availability: InStock

Technical Overview

Precise 10mm solid shaft absolute multiturn encoder. Features 8,192 x 8,192 (13-bit) resolution, PROFIBUS DP interface, & durable IP67 aluminum housing.

Key Features

Solid shaft, face mount flange with a 10 mm x 19 mm shaft design [5.1.1]
Absolute multiturn resolution up to 8,192 x 8,192 (13-bit singleturn / 13-bit multiturn)
Integrated PROFIBUS DP (DPV0) communication interface at up to 12 MBaud
Supports maximum operating speeds up to 9,000 RPM (with 6,000 RPM nominal)
Rugged aluminum housing with stainless steel shaft offering IP65/IP67 ingress protection
Wide supply voltage range of 10 to 32 V DC with reverse polarity protection
High radial and axial shaft load capacities of 80 N and 40 N respectively

Technical Specification Matrix

Parameter	Value
Connection type	2x Male M12 (5-pin), 1x Female M12 (5-pin), Axial [5.1.1]
Supply voltage	10 V DC ... 32 V DC
Power consumption	≤ 1.5 W
Mechanical design	Solid shaft, face mount flange
Shaft diameter	10 mm
Shaft length	19 mm
Max resolution	13-bit x 13-bit (8,192 x 8,192)
Interface	PROFIBUS DP (DPV0)
Enclosure rating	IP65 (shaft side) / IP67 (housing side)
Operating temperature range	-10 °C to +70 °C
Maximum operating speed	≤ 9,000 RPM
Physical Weight (kg)	0.33
Dimensions L x W x H (cm)	8.5 x 6 x 6

Industrial Applications

1. Automated Guided Vehicle (AGV) Steering Control

Utilizes the encoder's absolute multi-turn tracking to measure exact wheel steering angles and drive motor revolutions for precise navigation. The 10-32 VDC supply range and robust communication ensure reliable data delivery even under fluctuating mobile battery power.

Problem Solved

Prevents loss of position data during power cycles or emergency stops, eliminating the need for homing routines and ensuring seamless resumption of AGV movement.

10-32 VDCPROFIBUS DP13-bit SingleturnAbsolute Multiturn

2. Overhead Crane Hoist Positioning

Monitors the exact vertical position of the crane hook by tracking the winch drum's revolutions. The IP67-rated aluminum housing and wide -10°C to +70°C operating temperature handle dusty and unconditioned environments.

Problem Solved

Accurately maps long vertical travel distances without losing count, maximizing lifting safety and enabling automated multi-level positioning in industrial warehouses.

13-bit Multiturn8,192 RevolutionsIP67 Ingress Protection-10°C to +70°C

3. High-Speed Conveyor Synchronization

Integrates into continuous automated packaging lines, communicating via the high-speed PROFIBUS interface at up to 12 MBaud to synchronize the speed and position of interconnected sorting axes.

Problem Solved

Accommodates high mechanical stresses from continuous belt operations while preventing belt slippage errors through exact multi-turn tracking.

12 MBaud80 N Radial Load40 N Axial Load9,000 RPM Max Speed
