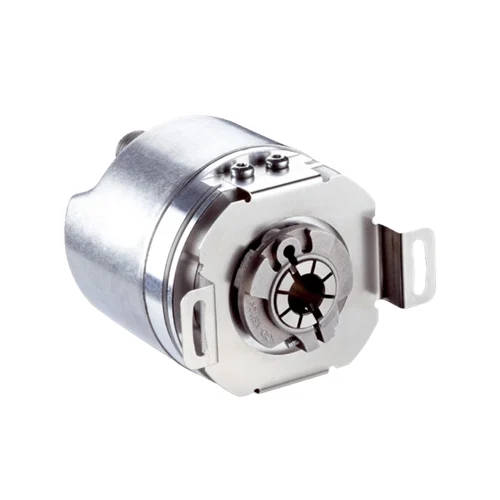

SICK A3M60B-BHPB013x13 Absolute Encoder – High-Precision PROFIBUS Motion Control
The SICK A3M60B-BHPB013x13 Absolute Encoder provides dependable and highly accurate position and speed feedback for industrial motion control systems. Using a PROFIBUS DP interface, it delivers seamless communication with automation controllers, ensuring stable and synchronized performance. Featuring 13-bit single-turn and multi-turn resolution (8,192 × 8,192 steps), it maintains precision across every cycle, even after power interruptions. Its durable aluminum body and stainless steel hollow shaft make it ideal for use in tough environments, supporting applications like robotic positioning, servo motor feedback, and conveyor automation.
The A3M60B-BHPB013x13 encoder is designed for advanced motion systems that require both accuracy and durability. It supports high-speed data transmission and can be easily configured for preset, counting direction, and revolution parameters. With IP67-rated housing and IP65 shaft sealing, it resists dust and moisture exposure during continuous operation. Its long bearing life and low energy consumption make it a reliable choice for minimizing downtime. The encoder ensures consistent feedback in challenging environments such as automated assembly lines, precision machinery, and robotic arm control, improving productivity and long-term equipment stability.
Why SICK A3M60B-BHPB013x13?
Because it transforms motion control into precision intelligence. The SICK A3M60B-BHPB013x13 offers 13-bit multi-turn accuracy, seamless PROFIBUS connectivity, and a rugged design that thrives in industrial chaos. It’s not just an encoder—it’s the heartbeat of machines demanding accuracy, endurance, and effortless communication.
What problem does it solve?
It eliminates guesswork in motion feedback and misalignment in automated systems. By delivering exact position data even after power loss, it ensures synchronization, consistency, and smooth movement across complex machinery—solving the challenges of drift, downtime, and calibration errors in precision-driven production environments.
Key Features & Specifications – SICK A3M60B-BHPB013x13: [Article Number 1051017]
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Absolute multi-turn encoder | Maintains exact position data even after power loss, ensuring continuous accuracy. |
| Communication Interface | PROFIBUS DP (DPV0), up to 12 MBaud | Enables high-speed, reliable communication with industrial control systems. |
| Resolution | 13-bit single-turn × 13-bit multi-turn (8,192 × 8,192 steps) | Offers precise angular position feedback for high-performance motion systems. |
| Shaft Design | 15 mm blind hollow shaft, front clamp | Simplifies mounting and provides stable mechanical coupling in tight spaces. |
| Housing Material | Aluminum housing, stainless steel shaft | Provides excellent corrosion resistance and long-term durability. |
| Protection Rating | IP67 (housing side), IP65 (shaft side) | Withstands dust, vibration, and moisture in demanding industrial environments. |
| Power Supply | 10…32 V DC | Wide input range for flexible system compatibility. |
| Power Consumption | ≤ 1.5 W | Low energy use supports efficient machine design and long-term reliability. |
| Mechanical Performance | Max speed: 9,000 rpm; Torque: 0.8–1.0 Ncm | Ensures smooth operation in high-speed or heavy-duty applications. |
| Bearing Lifetime | 3 × 10⁹ revolutions | Long service life reduces maintenance costs and downtime. |
| Operating Temperature | –10 °C to +70 °C | Reliable performance across a wide range of industrial conditions. |
| Vibration / Shock Resistance | 30 g / 80 g (EN standards) | Maintains signal integrity even in harsh mechanical environments. |
| Certifications | CE, UKCA, cULus, China-RoHS, ACMA | Meets global compliance standards for safety and quality assurance. |
Download SICK A3M60B-BHPB013x13 (1051017) Datasheet
Commercial Data – SICK A3M60B-BHPB013x13: [Article Number 1051017]
| Commercial Data | Details |
|---|---|
| EAN Code | 4055651442683 |
| Weight (Approx.) | 0.28 kg |
| Country of Origin | Germany |
