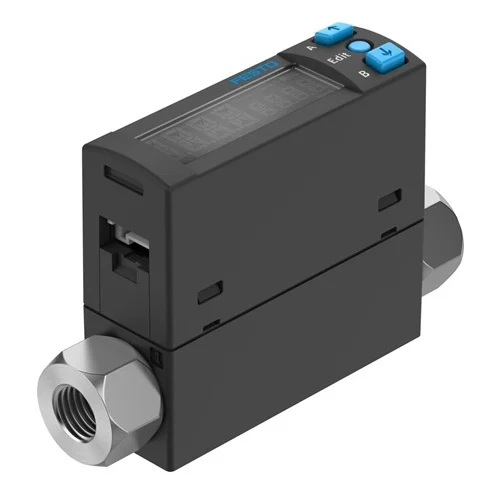

Name: SFAH-0.1U-G18FS-PNLK-PNVBA-L1 Festo Flow sensor - INOSAKI
SKU: Festo-8159375
Price: 273.26 USD
Availability: InStock

Technical Overview

The Festo SFAH-0.1U-G18FS-PNLK-PNVBA-L1 is a high-precision flow sensor utilizing a thermal heat transfer measurement method for mass and volumetric flow detection. Designed for unidirectional monitoring of compressed air and nitrogen, this sensor features a wide operating pressure range of -0.9 to 10 bar. It incorporates a multi-color illuminated LCD for clear visualization and supports both IO-Link V1.1 communication and switchable electrical outputs (PNP/NPN). Housed in a PA-reinforced casing, it provides reliable performance for industrial automation and is suitable for cleanroom and battery production environments.

Key Features

Unidirectional flow direction
IO-Link Protocol V1.1 with Smart Sensor Profile
Switchable 2xPNP or 2xNPN outputs
Multi-color illuminated LCD display
Thermal measuring principle via heat transfer
Short circuit current rating and overload protection
Suitable for Li-ion battery production with reduced Cu/Zn/Ni values
Cleanroom suitability Class 4 according to ISO 14644-1

Technical Specification Matrix

Parameter	Value
Symbol	00995795
Approval	RCM trademark c UL us listed (OL)
CE mark	To EU EMC Directive In accordance with EU RoHS Directive
UKCA marking	To UK RoHS instructions
Certificate issuing authority	UL E322346
Note on materials	RoHS-compliant
Measured variable	Mass flow rate Volumetric flow rate
Flow direction	Unidirectional
Measuring principle	Thermal
Measurement method	Heat transfer
Start value for flow rate measuring range	0.002 l/min
End value for flow rate measuring range	0.1 l/min
Operating pressure	-0.9 bar ... 10 bar
Operating medium	Compressed air to ISO 8573-1:2010 [6:4:4] Nitrogen
Media temperature	0 °C ... 50 °C
Ambient temperature	0 °C ... 50 °C
Nominal temperature	23 °C
Accuracy of flow rate	± (2% o.m.v. + 1% FS)
Repetition accuracy offset in ± %FS	0.2 %FS
Repetition accuracy span in ± %FS	0.8 %FS
Temperature coefficient span in ± %FS/K	Typ. 0.15%FS/K
Pressure influence span in ± %FS/bar	1 %FS/b.
Switching output	2 x PNP or 2 x NPN, switchable
Switching function	Window comparator Threshold value comparator Auto difference monitoring
Switching element function	N/C or N/O contact, switchable
Max. output current	100 mA
Analogue output	0 - 10 V 4 - 20 mA 1 - 5 V
Flow characteristic curve start value	0 l/min
Flow characteristic curve end value	0.1 l/min
Max. load resistance current output	500 Ohm
Min. load resistance voltage output	20 kOhm
Short circuit current rating	yes
Overload protection	Available
Protocol	IO-Link®
IO-Link, Protocol version	Device V 1.1
IO-Link, Profile	Smart sensor profile
IO-Link, Function classes	Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, communication mode	COM2 (38.4 kBaud)
IO-Link, SIO-Mode support	Yes
IO-Link, Port class	A
IO-Link, Process data length IN	3 bytes
IO-Link, Process data content IN	1 bit BDC (volume monitoring) 14 bit PDV (measured flow value) 2 bit BDC (flow monitoring)
IO-Link, Service data IN	32-bit volume/mass measurement
IO-Link, Min. cycle time	4 ms
IO-Link, Data storage required	<500 Byte
Operational voltage range	DC 22 V ... 26 V
No-load supply current	≤25 mA
Reverse polarity protection	For all electrical connections
Electrical connection 1, connection type	Plugs
Electrical connection 1, connector system	Connection pattern L1J
Electrical connection 1, number of connections/cores	4
Electrical connection 1, connection pattern	00995428
Type of mounting	With accessories
Mounting position	optional
Pneumatic connection	Female thread G1/8
Pneumatic connection, outlet direction	Straight
Product weight	90 g
Material housing	PA-reinforced
Material in contact with the medium	Silicon Silicon nitride High-alloy stainless steel
Display type	Illuminated LCD, multi-colour
Displayable units	g g/min l l/h l/min scft scft/h
Setting options	IO-Link® Teach-in Via display and keys
Protection against tampering	IO-Link PIN code
Degree of protection	IP40
Pressure drop	<5 mbar
Protection class	III
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Suitability for the production of Li-ion batteries	Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability	Class 4 according to ISO 14644-1
Pollution degree	3

Industrial Applications

1. Lithium-ion Battery Cell Leak Detection

Utilized in the quality control phase of Li-ion battery manufacturing to perform precision leak testing on battery pouches and cylindrical cells. The sensor monitors the minuscule flow of nitrogen escaping from improperly sealed cells. Its construction adheres to the F1a standard, avoiding copper, zinc, and nickel contamination.

Problem Solved

Prevents catastrophic battery failures and electrolyte dry-out by detecting micro-leaks down to 0.002 l/min, while strictly adhering to the material constraints required for safe Li-ion battery manufacturing environments.

0.002 to 0.1 l/min measuring rangeNitrogen operating mediumSuitable for battery production (reduced Cu/Zn/Ni)IO-Link Smart sensor profile

2. Semiconductor Micro-Die Pick-and-Place Verification

Integrated into semiconductor handling systems to monitor vacuum levels and bypass flow during the gripping of microscopic chips. Because the sensor operates effectively in vacuum conditions down to -0.9 bar and holds an ISO 14644-1 Class 4 cleanroom certification, it is safely deployed directly over wafer handling lines.

Problem Solved

Resolves the unreliability of standard pressure switches when handling tiny micro-dies, as the SFAH precisely measures the minute flow differences (under 0.1 l/min) indicating whether a microchip has been successfully gripped or dropped.

Operating pressure -0.9 bar ... 10 barCleanroom suitability Class 4Unidirectional thermal heat transfer2 x PNP or 2 x NPN switching output

3. Medical Device Micro-Catheter Integrity Testing

Employed in medical cleanroom assembly stations to pressure test micro-catheters and miniature fluidic channels. Compressed air is introduced at up to 10 bar, and the sensor measures the leakage rate using its high-precision thermal mass flow principle. Data is continuously logged to a PLC via the IO-Link interface.

Problem Solved

Detects microscopic manufacturing defects and imperfect seals in life-critical medical devices by identifying ultra-low continuous leakage flows that traditional pressure-decay testing might miss due to volume expansion.

Accuracy of flow rate ± (2% o.m.v. + 1% FS)Max operating pressure 10 barIO-Link Process data variable (PDV)0.002 l/min start value
