$ 287.50 $ 333.73Price range: $ 287.50 through $ 333.73
Acquires various numeric data from thru-beam type digital displacement sensor HG-T series and contact-type digital displacement sensor HG-S series and allows change of their settings.
|
| Model No. | SC-HG1-485 | |
|---|---|---|
| Regulatory compliance | EMC Directive, RoHS Directive | |
| Compatible controllers | HG-SC□, HG-TC□ | |
| Supply voltage (Note 2) | 24 V DC ±10 %, Ripple P-P 10 % or less (Within specified power supply voltage range) | |
| Current consumption | 40 mA or less | |
| Communication method | Two-wire half duplex communication | |
| Synchronization method | Start-stop synchronization | |
| Communication protocol | MODBUS (RTU / ASCII) / MEWTOCOL-COM | |
| Communication speed | 1.2 kbps / 2.4 kbps / 4.8 kbps / 9.6 kbps / 19.2 kbps / 38.4 kbps / 57.6 kbps / 115.2 kbps | |
| Electrical characteristics | Complies with EIA RS-485 | |
| Number of connectable units |
Host (RS-485) | 1 to 99 units when MODBUS (RTU/ASCII) is used, 1 to 64 units when MEWTOCOL-COM is used |
| Controllers | Maximum of 15 controllers (one master, 14 slaves) per SC-HG1-485 unit | |
| Stop bit length | 1 bit / 2 bits | |
| Parity check | Even / Odd / None | |
| Data bit length | 8 bits (RTU) / 7 bits (ASCII) | |
| Pollution degree | 2 | |
| Operating altitude | 2,000 m 6561.68 ft or less (Note 3) | |
| Environmental resistance |
Protection | IP40 (IEC) |
| Ambient temperature | -10 to +45 ℃ 14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉ | |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each | |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each | |
| Material | Enclosure: Polycarbonate | |
| Total extension distance | Communication cable: 1,200 m 3,937.008 ft or less between SC-HG1-485 (terminal) and PLC | |
| Weight | Net weight: 75 g approx., Gross weight: 120 g approx. | |
| Accessories | Termination resistor switching jumper pin: 1 pc. | |
Notes:
| 1) | Where measurement conditions have not been specified precisely, the conditions used were ambient temperature +20℃ +68 ℉. |
|---|---|
| 2 | Power is supplied from a connected controller / master controller. |
| 3 | Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m. |
| Item | Specifications |
|---|---|

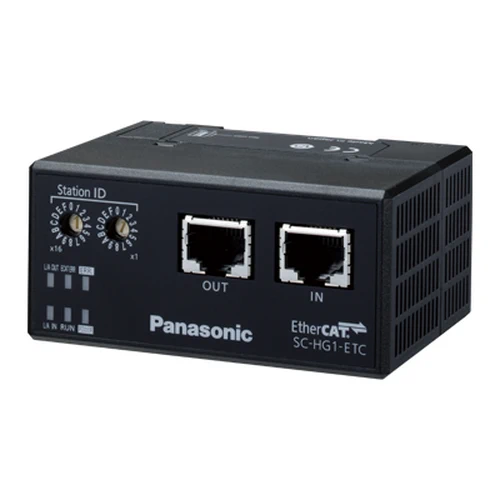

| Product Number | SC-HG1-ETC |
| Part Number | SC-HG1-ETC |
| Products Name | EtherCAT communication unit |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Compatible controllers | HG-TC□, HG-SC□ |
| Maximum number of connectable controllers | Maximum of 15 controllers (one master, 14 slaves) per SC-HG1-ETC unit |
| Supply voltage | 24 V DC ±10 %, including ripple 0.5 V (P-P) (Note) : Power is supplied from a connected controller / master controller. |
| Current consumption | 100 mA or less |
| Communication protocol | EtherCAT |
| Compliance | IEEE 802.3u (100BASE-TX) |
| Communication speed | 100 Mbps (100BASE-TX) |
| Communication connector | RJ-45×2 |
| Node-to-node distance | 100 m 328.084 ft or less |
| Supported functions | Process data object communication (cyclic communication) Mailbox communication (message communication) CoE Explicit Device Identification Station Alias |
| Degree of pollution | 2 |
| Operating altitude | 2,000 m 6,561.68 ft or less (Note) : Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m. |
| Environmental resistance : Ambient temperature | -10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉ |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MΩ or higher, using 250 V DC megger between all supply terminals connected together and enclosure |
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each |
| Environmental resistance : Shock resistance | 98 m/s2 (10 G approx.) acceleration in X, Y, and Z directions five times each |
| Grounding method | Casing: Floating type |
| Material | Enclosure : Polycarbonate |
| Communication cable | Category 5e (shielded twisted pair cable recommended) |
| Weight | Net weight: 90 g approx. Gross weight: 150 g appox. |
