USD 98.50
Enables fast field device termination to 16-position IDC flat ribbon cables. Converts standard 24-12 AWG screw connections with a 60V DC and 1A rating.

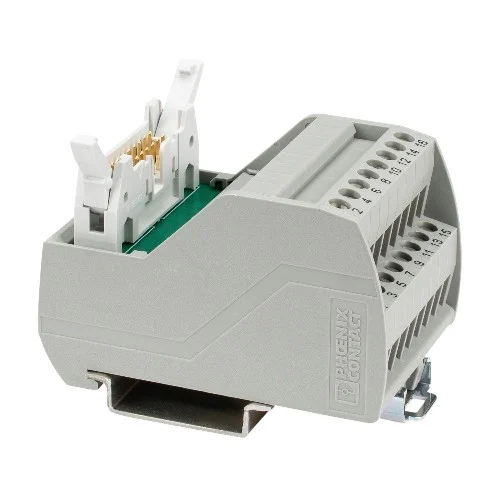

The Phoenix Contact 2315036 (Model: VIP-2/SC/FLK16) is a VARIOFACE Professional interface module designed to streamline passive discrete wiring between field devices and motion or process controllers. It features a flat-ribbon cable connector (16-position IDC/FLK pin strip) interfacing with field-level screw connections accommodating 24-12 AWG wiring. Engineered to mount effortlessly on NS 35 DIN rails, it incorporates a sliding metal mounting foot ensuring superior mechanical stability over time. Rated for up to 60 V DC / 25 V AC and carrying a maximum current of 1 A per branch, the module integrates an extended ZB marker channel to maintain highly organized control cabinet layouts.
| Parameter | Value |
|---|---|
| Product Type | Interface Module (VARIOFACE Professional) |
| Number of Positions | 16 |
| Max. Permissible Operating Voltage | 25 V AC / 60 V DC |
| Max. Current Carrying Capacity | 1 A per branch |
| Field Level Connection | Screw connection |
| Controller Level Connection | IDC/FLK pin strip |
| Conductor Cross-Section (AWG) | 24 ... 12 |
| Controller Pitch | 2.54 mm |
| Operating Temperature | -20 °C to 50 °C |
| Mounting Type | DIN rail mounting (NS 35) |
Consolidates discrete signals from field sensors into a single 16-position ribbon cable, drastically reducing point-to-point wiring complexity inside crowded automation cabinets.
Minimizes wiring errors and saves valuable DIN rail space by replacing bulky individual terminal blocks with a highly compact transition module.
Acts as a reliable passive transition point for low-voltage (up to 60V DC, 1A) limit switches and proximity sensors feeding back to a central robotic controller.
Provides secure, vibration-resistant screw terminations for field wiring while utilizing a fast IDC header for rapid controller integration.
Standardizes custom relay panels by routing inputs/outputs through standard flat-ribbon connectors (2.54 mm pitch), supporting neat integration of modern automation logic.
Eliminates hand-wiring bottlenecks during system changeovers and leverages integrated ZB marking channels for foolproof maintenance and troubleshooting.
