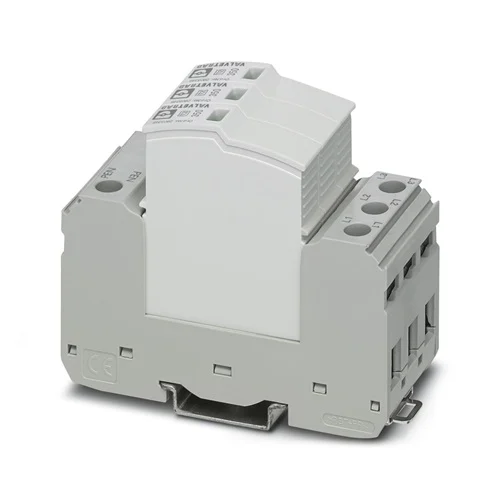

Phoenix Contact VAL-SEC-T2-3C-350-FM Surge Arrester

$ 288.42

Protect 3-phase systems with Phoenix Contact VAL-SEC-T2-3C-350-FM. Compact Type 2 surge arrester with fast response and remote fault monitoring.

SKU Phoenix-2905339 Category

Product Description

Phoenix Contact VAL-SEC-T2-3C-350-FM Type 2 Surge Arrester

The Phoenix Contact VAL-SEC-T2-3C-350-FM Type 2 Surge Arrester is designed to protect three-phase power supply systems with a combined PEN conductor. Compact in size and equipped with pluggable modules, it offers effective defense against voltage surges caused by lightning or switching operations. Its narrow profile saves valuable space in the control cabinet, while a built-in status indicator and remote fault contact allow for straightforward monitoring. With a rated voltage of 240/415 V AC and excellent limiting capacity, this device ensures safe and continuous operation for industrial and commercial facilities that rely on dependable power distribution.

The VAL-SEC-T2-3C-350-FM goes beyond standard surge protection by combining high discharge capacity with ease of maintenance. It reacts quickly to overvoltages, limiting residual energy to safe levels and preventing costly downtime. The device is engineered for long service life, even under tough environmental conditions, with an operating range from -40 °C to +80 °C. A clear visual and remote indication system makes it simple to identify module status, reducing inspection time. By ensuring compliance with international safety standards, it not only protects sensitive equipment but also lowers replacement and repair costs, securing long-term reliability for demanding applications.

Why Phoenix Contact VAL-SEC-T2-3C-350-FM?

The VAL-SEC-T2-3C-350-FM is trusted because it combines high surge discharge capacity with smart monitoring in one compact design. It’s easy to integrate into any control cabinet, offers reliable performance across harsh environments, and minimizes service interruptions with pluggable modules. This makes it the ideal choice for businesses that need dependable power protection without sacrificing space or maintenance efficiency.

What problem does it solve?

Electrical surges caused by lightning or switching operations can damage sensitive equipment, trigger costly downtime, and shorten system life. The VAL-SEC-T2-3C-350-FM solves this by responding instantly to overvoltages and limiting them to safe levels. With built-in fault indicators and remote monitoring, it provides both protection and peace of mind, ensuring smooth, uninterrupted operation for industrial and commercial facilities.




Key Features & Specifications – Phoenix Contact VAL-SEC-T2-3C-350-FM : Article Number 2905339

Feature Details Benefit
Nominal Voltage (UN) 240/415 V AC Suitable for standard industrial and commercial power networks
Maximum Continuous Voltage (UC) 350 V AC Ensures robust surge handling without nuisance trips
Nominal Discharge Current (In) 20 kA (8/20 µs) Protects against frequent transient surges
Maximum Discharge Current (Imax) 40 kA (8/20 µs) Handles high-energy surge events safely
Voltage Protection Level (Up) ≤ 1.5 kV Protects connected devices from damaging residual voltages
Response Time ≤ 25 ns Rapid surge response for sensitive equipment
Status Indication Mechanical/visual indicator + remote contact Enables quick fault detection and remote monitoring
Pluggable Modules Yes Easy replacement and reduced maintenance downtime
Operating Temperature -40 °C … +80 °C Reliable performance in harsh environments
Mounting Type 35 mm DIN rail Quick and secure installation in panels
Backup Fuse Up to 315 A gG Flexible integration without additional protective devices
Approvals & Standards IEC 61643-11, EN 61643-11, UL Recognized Global compliance for safe and certified use

Download Phoenix Contact VAL-SEC-T2-3C-350-FM 2905339 Datasheet




Commercial Data – Phoenix Contact VAL-SEC-T2-3C-350-FM : Article Number 2905339

Commercial Data Details
GTIN Number 4046356948050
Customs Tariff Number 85363090
Weight 222 g (net), 323.9 g (with packaging)
Country of Origin Germany




The Applications of Phoenix Contact VAL-SEC-T2-3C-350-FM

1. Protecting Capacitor Banks in Substations

Capacitor banks used for reactive power compensation in substations are highly susceptible to voltage surges during switching. Without proper protection, sudden restrikes can overstress insulation and lead to equipment failure. By using a three-phase Type 2 surge arrester, transient overvoltages are safely limited, preventing damage to the capacitor sections. This ensures stable grid operation, reduces downtime caused by unexpected breakdowns, and extends the overall service life of costly power infrastructure.

2. Safeguarding Industrial Control Panels

In industrial environments, main distribution panels supply power to automation devices such as drives, controllers, and sensors. Surges from upstream switching or electrical faults can quickly propagate to these sensitive components, resulting in malfunctions or failures. Installing a DIN-rail mounted surge arrester directly at the main panel diverts transient energy before it spreads further. This approach not only protects critical automation systems but also simplifies maintenance thanks to the arrester’s modular, pluggable design.

3. Storm-Resilient Protection for Outdoor Systems

Outdoor electrical systems, including water pumps, HVAC units, and cooling towers, are often exposed to voltage surges from lightning activity or grid fluctuations. These transients can damage motors and electronic control modules, causing costly downtime. Placing a robust three-phase surge arrester at the service entry point of outdoor installations ensures harmful energy is discharged before reaching sensitive components. The result is greater resilience against storms, fewer repair interventions, and increased operational continuity in demanding environments.

4. Reliable Defense in Renewable Energy Farms

Wind turbines and solar inverters face frequent exposure to transient surges caused by both weather conditions and grid switching events. High-energy surges can quickly compromise inverter electronics, leading to expensive replacements. By deploying a Type 2 surge arrester at the AC output side of inverter stations, excess energy is safely redirected. Its high discharge capacity and compact form factor make it ideal for modular renewable energy systems, providing ongoing protection for inverters, transformers, and other essential components.




Related Products & Accessories – Phoenix Contact VAL-SEC-T2-3C-350-FM

Category Model Part Number Benefit
End Clamp CLIPFIX 35 3022218 Ensures secure DIN rail mounting with additional stability and marking option
Label (White) EML (20XE)R 0803452 Unmarked roll labels for clear identification, compatible with THERMOMARK printers
Label (Yellow) EML (20XE)R YE 0803453 Color-coded marking option for quick circuit differentiation
Zack Marker Strip (Unmarked) ZBN 18:UNBEDRUCKT 2809128 Customizable strip markers for terminal blocks, easy labeling
Zack Marker Strip (Pre-Labeled) ZBN 18,LGS:L1-N,ERDE 2749576 Pre-marked strips for phase and ground identification
Zack Marker Strip (Ground) ZBN 18,LGS:ERDE 2749589 Dedicated ground symbol markers for terminal strips
Flat Zack Marker Sheet ZBFM 5/WH:UNBEDRUCKT 0803595 Sheet form markers for compact marking needs
Pick-off Terminal Block VAL-SEC-AGK-25 1452282 Dedicated accessory for VAL-SEC-T2 series, supports branching and testing
Zack Marker Strip (Custom) ZBN 18 CUS 0825059 Factory-customizable labeling for specific project requirements
Marker Pen X-PEN 0,35 0811228 Fine-line permanent marker for manual labeling of accessories
Screwdriver SZK PZ2 VDE 1206463 VDE-insulated screwdriver for safe installation and maintenance
Replacement Plug VAL-SEC-T2-350-P 2905346 Spare surge protection plug for quick replacement of worn modules
