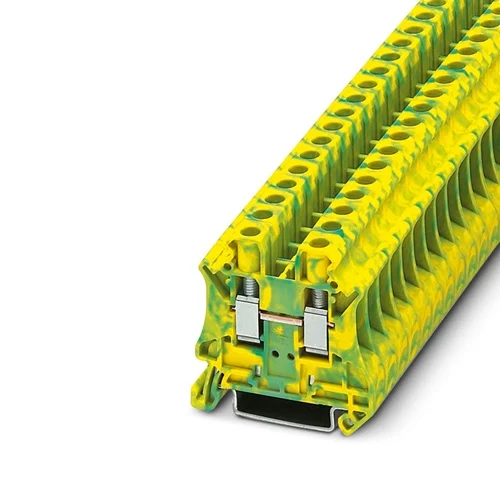

Name: Phoenix Contact UT 6-PE Protective Conductor Terminal Block - INOSAKI
SKU: Phoenix-3044157
Price: 8.21 USD
Availability: InStock

Technical Overview

DIN rail protective conductor terminal block with screw connection. Handles 0.2-10mm² conductors; -60°C to 110°C; 8kV surge. Vibration-resistant.

Key Features

Screw connection for 0.2 mm² to 10 mm² (AWG 24-8) conductors
Direct DIN rail contact for fast, error-free grounding without additional wiring effort
Maintenance-free and vibration-resistant connection via patented Reakdyn principle
Compact design enables user-friendly wiring in small spaces
Tested for railway applications (compliant with DIN EN 50155)
Wide operating temperature range of -60°C to 110°C
Compatible with CLIPLINE complete bridging, marking, and testing accessories
Optimum screwdriver guidance through closed screw shafts
Large wiring space accommodates solid and stranded conductors without ferrules
Cable entry funnel facilitates use of conductors with ferrules and plastic collars

Technical Specification Matrix

Parameter	Value
Number of Connections	2
Number of Levels	1
Connection Method	Screw connection
Screw Thread	M4
Tightening Torque	1.5 Nm - 1.8 Nm
Stripping Length	10 mm
Nominal Cross Section	6 mm²
Conductor Cross Section (Rigid)	0.2 mm² - 10 mm²
Conductor Cross Section (Flexible)	0.2 mm² - 10 mm²
Conductor Cross Section (AWG)	24 - 8
Rated Surge Voltage	8 kV
Overvoltage Category	III
Degree of Pollution	3
Operating Temperature Range	-60 °C to 110 °C
Insulating Material	PA (Polyamide)
Flammability Rating (UL 94)	V0
Mounting Type	NS 35/7,5, NS 35/15 (DIN rail)
Color	Green-yellow
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	4.69 x 0.82 x 4.77

Industrial Applications

1. Grounding in Industrial Control Panels for Harsh Environments

This protective conductor terminal block is ideal for ensuring reliable grounding in industrial control panels exposed to extreme temperatures or mechanical vibrations. Its wide operating temperature range (-60°C to 110°C) and robust design provide stable performance in demanding conditions.

Problem Solved

Provides a safe, low-resistance, and stable ground connection for electrical components in harsh industrial environments with significant temperature fluctuations and mechanical stress.

Control PanelHarsh EnvironmentGroundingVibration ResistanceWide Temperature Range

2. Protective Earth for Railway Rolling Stock Electrical Systems

Specifically tested for railway applications and compliant with DIN EN 50155, this terminal block offers a highly reliable protective earth connection for electrical systems in trains and railway infrastructure. Its proven shock and vibration resistance ensures operational integrity under dynamic railway conditions.

Problem Solved

Ensures critical protective grounding in railway applications, withstanding constant vibration and shock to maintain electrical safety and system reliability.

RailwayRolling StockGroundingShock ResistanceDIN EN 50155

3. Surge Protection Grounding in Process Industry Cabinetry

With a rated surge voltage of 8 kV and overvoltage category III, this terminal block is suitable for grounding protective conductors in process industry cabinets, safeguarding sensitive equipment from transient overvoltages. The secure screw connection accommodates various wire sizes (0.2-10 mm²) for robust, dependable installations.

Problem Solved

Offers robust, high-integrity grounding for sensitive electronic equipment in process control systems, protecting against damaging electrical surges and ensuring operational continuity.

Process ControlSurge ProtectionGroundingOvervoltage Category IIIRobust Connection
