Name: Phoenix Contact UK 16 Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3006014
Price: 12.58 USD
Availability: InStock

Technical Overview

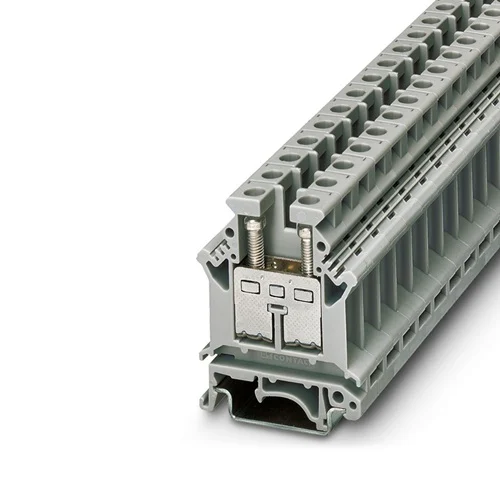

800V/76A feed-through terminal block with screw connection for 0.5-16mm² wire. DIN rail mountable, operating from -60°C to 110°C.

Key Features

Screw connection for secure and reliable wiring of conductors.
Accommodates a wide conductor cross-section range from 0.5 mm² to 16 mm² (20-6 AWG).
Designed for convenient mounting on standard DIN rails (NS 35/7,5, NS 35/15, NS 32).
Constructed with Polyamide (PA) insulating material for durability and safety.
Provides a high nominal voltage of 800 V and a nominal current of 76 A for demanding electrical systems.
Operates effectively in temperatures ranging from -60 °C to 110 °C, suitable for various industrial environments.
Features Overvoltage Category III and Degree of Pollution 3, enhancing electrical safety and reliability.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	800 V
Nominal Current	76 A
Number of Connections	2
Connection Method	Screw connection
Conductor Cross Section (Min)	0.5 mm² (20 AWG)
Conductor Cross Section (Max)	16 mm² (6 AWG)
Mounting Type	DIN rail (NS 35/7,5, NS 35/15, NS 32)
Color	Gray
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage	8 kV
Maximum Power Dissipation (Nominal Condition)	1.82 W
Operating Temperature Range	-60 °C to 110 °C
Insulating Material	Polyamide (PA)
Relative Insulation Material Temperature Index (UL 746 B)	125 °C
Temperature Index of Insulation Material (DIN EN 60216-1)	125 °C
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	4.25 x 1.02 x 4.25

Industrial Applications

1. Industrial Control Panel Wiring

Utilized for organizing and connecting high-power circuits within industrial control panels, facilitating easy installation and maintenance of machinery and ensuring robust power distribution.

Problem Solved

The 800V/76A rating and 16mm² wire capacity allow for reliable connection of power distribution lines and motor controls, ensuring safety and robust performance in demanding industrial control environments. Its DIN rail mounting simplifies panel layout and wiring organization.

Control panelpower distributionmotor controlDIN rail800V76A16mm² wirescrew connection

2. HVAC/R System Power Connections

Provides secure and robust electrical connections for the power supply and control wiring in commercial and industrial heating, ventilation, air conditioning, and refrigeration (HVAC/R) units, capable of withstanding environmental fluctuations.

Problem Solved

The wide operating temperature range (-60°C to 110°C) allows this terminal block to function reliably in temperature-fluctuating environments typical of HVAC/R equipment, while the high voltage and current ratings accommodate various compressor motors and heating elements safely.

HVAC/Rhigh temperaturelow temperaturepower connectionsmotorcompressor800V76A-60°C to 110°C

3. Renewable Energy Inverter/Converter Wiring

Ideal for connecting DC power lines from solar arrays or battery banks to inverters/converters, or for AC distribution from these systems in renewable energy installations, ensuring secure and high-capacity current flow.

Problem Solved

The 800V rating is well-suited for higher voltage DC strings in solar power applications, and the 76A current capacity efficiently handles significant power flow. The screw connection offers secure, vibration-resistant terminals, crucial for long-term reliable operation in outdoor or industrial energy installations.

Solar powerDC stringinverterconverterbattery storage800V76Ascrew connectionhigh current
