Compact surge protection for measurement and control circuits. Phoenix Contact TTC-6P-1X2-12DC-PT-I ensures safety, reliability, and easy monitoring.

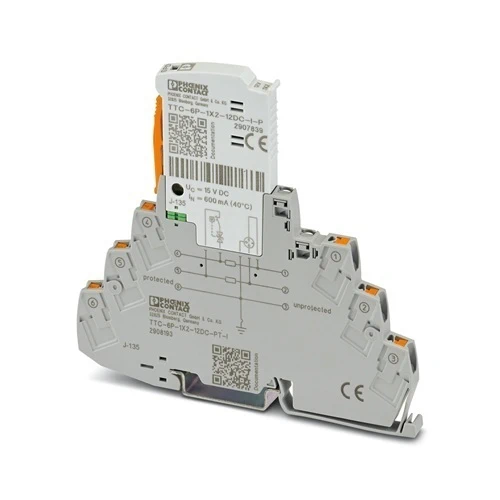

The Phoenix Contact TTC-6P-1X2-12DC-PT-I is a slim surge protection module designed to shield sensitive measurement and control circuits. With only 6 mm installation width, it provides efficient space usage while protecting 2-wire floating signal lines against voltage surges. An integrated visual status indicator allows quick condition checks, helping operators spot issues instantly. Built for demanding industrial environments, this protective device is approved for use in safety applications up to SIL 3, ensuring both system integrity and operator confidence. It combines compact design, proven durability, and reliable performance to prevent unexpected failures in automation systems.
The TTC-6P-1X2-12DC-PT-I is engineered to provide protection without interrupting ongoing processes. Its impedance-neutral plug design ensures signals remain unaffected during insertion or removal, simplifying maintenance activities. Operators benefit from continuous monitoring and fault signaling, reducing downtime and minimizing repair costs. The module supports easy functional checks with Phoenix Contact’s testing tools, streamlining documentation and compliance tasks. Suitable for operation across extreme temperatures, it is particularly useful in process control, power distribution, and safety-critical industries. By extending equipment life and ensuring uninterrupted plant operations, this surge protector represents both a performance safeguard and a cost-saving solution.
Why Phoenix Contact TTC-6P-1X2-12DC-PT-I?
Choose the TTC-6P-1X2-12DC-PT-I because it delivers maximum surge protection in the smallest possible space. Its ultra-slim design frees valuable DIN rail room while offering continuous monitoring and fault indication. Built for safety-critical circuits up to SIL 3, it combines reliability, easy maintenance, and compliance support, making it a smart choice for modern automation environments.
What problem does it solve?
Unplanned downtime and equipment failures from voltage surges can cripple industrial systems. The TTC-6P-1X2-12DC-PT-I prevents these issues by shielding sensitive measurement and control signals. It ensures operations remain stable even under extreme conditions, helping plants avoid costly repairs, maintain productivity, and safeguard operator safety—all while keeping signal integrity intact during routine servicing.
| Feature | Details | Benefit |
|---|---|---|
| Width | 6.2 mm | Space-saving design for narrow DIN rail installations |
| Nominal Voltage | 12 V DC | Tailored for low-voltage measurement and control systems |
| Max. Continuous Voltage (UC) | 15 V DC / 10 V AC | Protects against overvoltage in sensitive circuits |
| Rated Current | 600 mA (at 56 °C) | Reliable current handling in critical conditions |
| Discharge Current Capacity | 5 kA (line-line/line-ground) | Strong defense against transient surges |
| Response Time | ≤ 1 ns (line-line), ≤ 100 ns (line-earth) | Ultra-fast reaction to overvoltage events |
| Operating Temperature | -40 °C to +85 °C | Stable protection in harsh environments |
| Functional Safety | SIL 3 capable | Approved for use in safety-critical applications |
| Connection Method | Push-in connection | Fast, tool-free wiring for reduced installation time |
| Testing & Maintenance | Compatible with CHECKMASTER 2 | Easy functional checks and compliance documentation |
| Status Indicator | Integrated optical display | Quick visual confirmation of device health |
| Mounting Type | DIN rail TH 35 | Standardized installation across control cabinets |
Download TTC-6P-1X2-12DC-PT-I 2908193 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626282688 |
| Customs Tariff Number | 85363010 |
| Weight (excl. packing) | 34.59 g |
| Country of Origin | Germany (DE) |
Chemical plants rely on continuous readings from sensors monitoring flow, temperature, and pressure. Long cable runs across busy production floors are vulnerable to switching surges and lightning-induced spikes. By installing the TTC-6P-1X2-12DC-PT-I directly on the DIN rail, engineers can safeguard each measurement loop without losing cabinet space. Its rapid response time ensures transients are suppressed before damaging sensitive transmitters. The integrated status window provides a quick health check, making inspections faster during routine shutdowns. This ensures production quality is maintained, minimizes downtime, and prevents costly damage to instrumentation in harsh chemical environments.
Wind and solar installations often operate in wide-open areas where lightning strikes and power fluctuations are common. Remote monitoring systems transmit low-voltage signals that are highly sensitive to transient events. The TTC-6P-1X2-12DC-PT-I helps stabilize these inputs by absorbing surges up to several kiloamps, while maintaining normal operation at just 12 V DC. Its rugged construction supports extreme weather conditions from freezing nights to scorching summer heat. With minimal space requirement, it is easy to integrate into compact control boxes at remote towers or photovoltaic arrays. This protection prevents unexpected failures, reduces service costs, and ensures continuous monitoring of renewable energy assets.
Food and beverage processing plants use a variety of sensors to track conductivity, liquid levels, and flow rates. Frequent equipment cleaning, high-power motor switching, and extensive stainless-steel piping often create electrical noise and transient surges. The TTC-6P-1X2-12DC-PT-I keeps these sensitive measurement signals stable by reacting to spikes in nanoseconds, preventing false readings or device failures. Its push-in terminals allow maintenance teams to quickly replace units during shift changes without tools, maintaining hygiene standards by limiting panel exposure. This results in reliable data collection, fewer stoppages, and extended equipment life in facilities that must maintain strict operational uptime.
Refineries depend on critical safety systems such as pressure sensors, gas detectors, and emergency shutdown instruments. These devices must function reliably even in electrically harsh conditions, where lightning, ground faults, or switching surges can occur. The TTC-6P-1X2-12DC-PT-I is well suited here, offering multiple protection modes—line-to-line, line-to-ground, and signal shielding—without degrading signal quality. Certified up to SIL 3, it supports compliance with stringent safety standards. Maintenance crews benefit from the clear optical status indicator, which reduces time spent testing each circuit. Its slim profile allows protection of many channels in one cabinet, ensuring refinery safety systems remain online and dependable.
| Category | Model / Name | Part Number | Benefit |
|---|---|---|---|
| Replacement Plug | TTC-6P-1X2-12DC-I-P | 2907839 | Replacement surge protection plug with integrated status indicator for 2-wire circuits |
| Remote Signaling Module | TTC-6-FMRS-PT | 2907811 | Enables optical monitoring and floating remote signaling for surge protective devices |
| DIN Rail End Bracket | CLIPFIX 35-5 | 3022276 | Secure end clamp for DIN rail mounting, provides stability and marking option |
| Terminal Marker Strip (Custom Print) | ZBF 6 CUS | 0825027 | Custom-labeled marker strips for easy identification of terminal blocks |
| Terminal Marker Strip (Unmarked, 10 pcs) | ZBF 6:UNBEDRUCKT | 0808710 | Blank strips for flexible in-house labeling with plotters |
| Terminal Marker Strip (Unmarked, 1000 pcs) | ZBF 6/WH-100:UNBEDRUCKT | 0808736 | Bulk unmarked strips for cost-effective mass labeling |
| Terminal Marker Strip (Sequential Numbers) | ZBF 6,QR:FORTL.ZAHLEN | 0808765 | Pre-printed strips with consecutive numbers for quick circuit identification |
| Shield Connection (3–6 mm) | SSA 3-6 | 2839295 | Fast shield termination for small-diameter cables, ensuring effective grounding |
| Shield Connection (5–10 mm) | SSA 5-10 | 2839512 | Shield termination for larger cables, improves EMC protection |
| Marker Pen | X-PEN 0,35 | 0811228 | Fine-tip pen for durable manual marking of terminal strips |
