$ 526.47

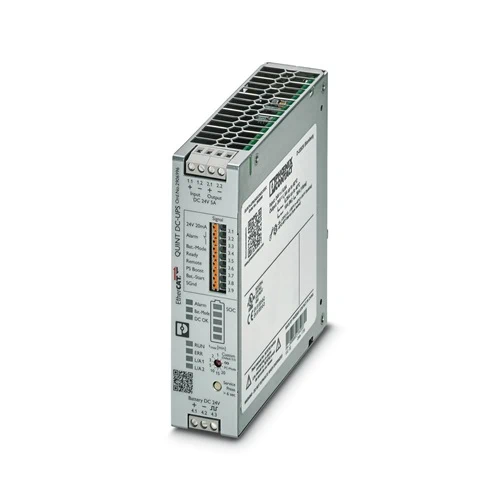

Phoenix Contact QUINT4-UPS/24DC/24DC/5/EC ensures uninterrupted 24V DC, 5A output. Smart battery management maximizes uptime in critical industrial systems.
The Phoenix Contact QUINT4-UPS/24DC/24DC/5/EC is an advanced uninterruptible power supply that delivers stable 24 V DC output at up to 5 A, even during unexpected power interruptions. Built with intelligent monitoring and control, it ensures consistent operation of industrial equipment where reliability is essential. Its integrated technology continuously evaluates battery performance and system status, giving users early insight to plan maintenance before downtime occurs. With robust compatibility for modern automation networks, this UPS provides dependable support for critical applications where system availability and efficiency are top priorities.
This UPS combines smart energy management with rugged industrial design to keep processes running smoothly. It automatically identifies the connected battery type and adapts charging for optimal lifespan and performance. Fault isolation technology quickly disconnects problematic loads without affecting other devices, keeping production lines active. High efficiency reduces wasted energy and heat, making it suitable for long-term operation in demanding environments. From protecting programmable controllers in factories to ensuring continuous operation in transportation, energy, and marine systems, this model offers assurance that critical operations will not be disrupted when the power supply is at risk.
The QUINT4-UPS/24DC/24DC/5/EC is more than a backup device—it’s a safeguard for mission-critical automation. With intelligent monitoring, adaptive charging, and seamless network integration, it delivers assurance that your equipment never loses power when it matters most. Designed for engineers who value reliability, it transforms potential downtime into uninterrupted productivity.
Unplanned power failures can halt production, damage equipment, and disrupt entire operations. This UPS solves the problem by instantly taking over when supply voltage drops, ensuring smooth continuity without delays. Its advanced battery management anticipates failures before they happen, keeping systems protected, maintenance predictable, and operations resilient even under the most demanding industrial conditions.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage Range | 18–32 V DC (nominal 24 V DC) | Flexible operation across varied industrial conditions |
| Output Voltage | 24 V DC / 5 A | Stable supply for critical industrial controllers and devices |
| Static Boost | 6.25 A | Supports short-term overloads without shutdown |
| Dynamic Boost | 10 A (5 s) | Provides extra power for demanding startup loads |
| Efficiency | Up to 97% | Reduces energy loss and heat generation |
| Switch-Over Time | 0 ms | Ensures uninterrupted transitions during outages |
| Battery Compatibility | VRLA, VRLA-WTR, Li-ion | Wide flexibility for energy storage options |
| IQ Technology | Monitors SOC & SOH | Predictive maintenance and extended battery life |
| SFB Technology | 30 A for 15 ms | Trips faulty circuits while keeping others active |
| Interfaces | EtherCAT®, PROFINET, EtherNet/IP, USB | Easy integration into modern automation networks |
| Mounting | DIN Rail (NS 35/7.5, NS 35/15) | Quick installation in control cabinets |
| Operating Temp. Range | -25 °C … +70 °C | Reliable performance in harsh industrial environments |
| Protection Class | IP20 | Suitable for protected cabinet installations |
Download QUINT4-UPS/24DC/24DC/5/EC (2906996) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626171210 |
| Tariff Number | 85371091 |
| Weight (Excl. Packing) | 456 g |
| Country of Origin | China |
Modern robotic systems and automated assembly lines rely on uninterrupted 24 V DC power to maintain accuracy. A single voltage dip can disrupt sequences, causing alignment errors and costly downtime. The QUINT4-UPS/24DC/24DC/5/EC eliminates this risk with its instant switchover capability, keeping actuators and controllers running without interruption. Its intelligent battery management ensures that backup reserves are always ready, reducing maintenance surprises. By safeguarding motion control systems, this UPS allows manufacturers to sustain productivity, protect equipment, and meet tight production schedules with greater confidence.
Material handling conveyors are especially vulnerable to sudden power losses, which can leave heavy loads stranded or cause abrupt stops that damage goods. With the QUINT4-UPS/24DC/24DC/5/EC in place, control systems continue operating long enough to bring conveyors to a safe, controlled stop. Its ability to supply clean DC power during a fault means programmable logic controllers can execute predefined routines without disruption. This ensures that transport operations remain safe, equipment is preserved, and valuable materials reach their destinations without incident, even in environments where power fluctuations are common.
Remote monitoring stations, building automation nodes, and IoT sensors often operate in areas prone to unstable power. The QUINT4-UPS/24DC/24DC/5/EC provides a direct DC backup solution, ensuring that communication devices, gateways, and sensors continue transmitting data without interruption. Its compact DIN rail design makes integration simple, while advanced monitoring features help predict battery condition and replacement needs. With this level of resilience, businesses can maintain visibility of critical parameters, avoid data gaps, and ensure infrastructure remains connected regardless of grid reliability, making it a reliable safeguard for smart industrial and environmental systems.
Industrial PCs and embedded controllers are central to production monitoring, data logging, and automation control. An unexpected power failure can cause data corruption, damaged software, or extended restart times. The QUINT4-UPS/24DC/24DC/5/EC prevents these issues by instantly bridging supply gaps, giving systems the time to either continue operating or shut down gracefully. Its ability to communicate health status and battery readiness enables predictive planning and prevents unplanned outages. By providing seamless backup for IPCs, this UPS helps facilities protect valuable process data, maintain operational integrity, and keep critical digital systems running smoothly under demanding industrial conditions.
| Category | Model | Part Number | Description | Benefit |
|---|---|---|---|---|
| Battery Module | UPS-BAT/PB/24DC/1.2AH | 1274520 | VRLA-AGM, 24 V DC, 1.2 Ah | Compact backup for shorter runtime needs |
| UPS-BAT/PB/24DC/4AH | 1274117 | VRLA-AGM, 24 V DC, 4 Ah | Extended runtime in compact control systems | |
| UPS-BAT/PB/24DC/7AH | 1274118 | VRLA-AGM, 24 V DC, 7 Ah | Mid-range energy storage with automatic detection | |
| UPS-BAT/PB/24DC/12AH | 1274119 | VRLA-AGM, 24 V DC, 12 Ah | Long runtime with tool-free battery change | |
| UPS-BAT/PB/24DC/20AH | 1348516 | VRLA-AGM, 24 V DC, 20 Ah | High-capacity storage for longer buffering | |
| UPS-BAT/PB/24DC/40AH | 1354641 | VRLA-AGM, 24 V DC, 40 Ah | Maximum runtime for critical systems | |
| UPS-BAT/LI/24DC/64WH | 1460921 | Li-ion (LiFePO4), 64 Wh | Lightweight, long cycle life option | |
| UPS-BAT/LI/24DC/128WH | 1396415 | Li-ion (LiFePO4), 128 Wh | Extended runtime with faster recharge | |
| UPS-BAT/LI/24DC/189WH | 1460922 | Li-ion (LiFePO4), 189 Wh | Higher storage capacity for demanding loads | |
| UPS-BAT/LI/24DC/284WH | 1460923 | Li-ion (LiFePO4), 284 Wh | Maximum lithium capacity for long backup | |
| UPS-BAT/VRLA-WTR/24DC/13AH | 2320416 | Lead AGM VRLA, 13 Ah | Rugged, tool-free battery change | |
| UPS-BAT/VRLA-WTR/24DC/26AH | 2320429 | Lead AGM VRLA, 26 Ah | Extended runtime, water-resistant design | |
| Redundancy Module | QUINT-ORING Series | – | Active decoupling for parallel UPS use | Enhances system availability and redundancy |
| Power Supply | QUINT POWER (24 V DC range) | – | High-performance PSU family | Provides reliable primary DC input for UPS |
