$ 1,047.65

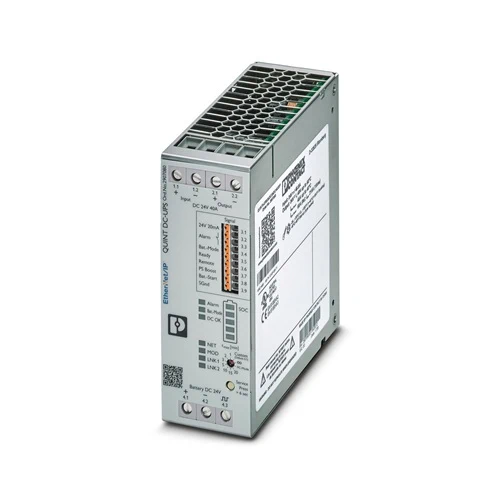

Phoenix Contact QUINT4-UPS/24DC/24DC/40/EIP delivers 24V DC, 40A backup with smart monitoring for maximum reliability in industrial operations.
The Phoenix Contact QUINT4-UPS/24DC/24DC/40/EIP is a powerful uninterruptible power supply built to maintain stable 24 V DC power in demanding industrial environments. With an output of up to 40 A, it guarantees operational continuity even if the main power source fails. Its intelligent monitoring technology continuously evaluates system and battery conditions, ensuring predictive maintenance and higher availability. Designed for seamless integration into automation systems, this UPS gives manufacturers and operators peace of mind that production lines and safety-critical applications will not be interrupted during voltage fluctuations or outages.
The QUINT4-UPS/24DC/24DC/40/EIP combines advanced battery management with robust circuit protection to provide dependable power security. It automatically detects connected energy storage types, including VRLA and lithium-ion batteries, and optimizes charging accordingly. Thanks to high efficiency and selective fuse breaking, it safeguards connected loads while minimizing energy loss. In practical use, it prevents production downtime, protects sensitive control equipment from data loss, and ensures emergency systems remain active during disruptions. Compact DIN-rail mounting and network-ready communication interfaces make it ideal for industries requiring reliable, intelligent, and space-saving power continuity solutions.
Why QUINT4-UPS/24DC/24DC/40/EIP?
The Phoenix Contact QUINT4-UPS/24DC/24DC/40/EIP is chosen for its ability to deliver rock-solid 24 V DC power even under the harshest operating conditions. With intelligent monitoring, automatic battery recognition, and high-efficiency performance, it ensures that mission-critical equipment keeps running without interruption. Its compact DIN-rail design, combined with network integration and predictive diagnostics, makes it a smart investment for industries where every second of uptime counts.
What problem does it solve?
This model eliminates the risks associated with unexpected power outages and unstable voltage in automation systems. By providing a continuous power bridge, it prevents machinery downtime, protects sensitive controllers from data loss, and keeps safety functions active during disturbances. Instead of reacting to power failures after they occur, the QUINT4-UPS actively manages energy storage and system health, solving the costly problem of unplanned downtime and equipment damage before it even begins.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage | 24 V DC (range 18…32 V DC) | Ensures stable operation across varied supply conditions |
| Output Current | 40 A nominal, up to 60 A with Dynamic Boost | Supports high inrush loads and short-term peak demand |
| Switch-Over Time | 0 ms | Guarantees seamless transition during power loss |
| Efficiency | Up to 97% | Reduces energy waste and operating costs |
| IQ Battery Management | Automatic recognition of VRLA, VRLA-WTR, and Li-ion | Maximizes service life and optimizes charging performance |
| Interfaces | EtherNet/IP, Modbus/TCP, USB, PROFINET, EtherCAT | Easy integration into modern industrial networks |
| Protective Technology | Selective Fuse Breaking (SFB) up to 215 A | Keeps parallel loads running and avoids full shutdowns |
| Mounting Type | DIN rail, 47 × 130 × 125 mm | Compact installation saves control cabinet space |
| Weight | 592 g (net), 752 g (with packaging) | Lightweight design for flexible installation |
| Operating Temperature | -25 °C … +70 °C | Reliable performance in harsh industrial environments |
| Approvals | UL, CSA, DNV, BV, RINA, ABS | Certified for global use, including hazardous locations |
Download QUINT4-UPS/24DC/24DC/40/EIP (2907080) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626171715 |
| Tariff Number | 85371091 |
| Weight | 592 g (net), 752 g (with packaging) |
| Country of Origin | China |
In highly automated factories, sudden power disruptions can bring robotic arms and conveyors to a standstill, leading to lost production and misaligned processes. The QUINT4-UPS keeps the 24 V DC supply stable without interruption, ensuring robots finish their programmed cycles safely. With its 40 A output and instant switchover, it prevents costly downtime while maintaining synchronization across connected machinery.
Control cabinets house sensitive electronics such as HMIs, PLCs, and data loggers that cannot afford a sudden reset. The QUINT4-UPS delivers seamless backup power, shielding devices from voltage dips or outages. Its intelligent battery management system constantly monitors charge and health, reducing the risk of unexpected failures. This ensures continuous process visibility, stable communication, and reliable recording of operational data.
Renewable installations like solar-powered microgrids often face fluctuations in supply. By deploying the QUINT4-UPS at critical nodes, operators can maintain uninterrupted 24 V DC for monitoring and control devices. Its dynamic boost handles inrush currents, while predictive diagnostics provide insights into system readiness. This stability allows renewable energy systems to operate efficiently and consistently, even when environmental conditions create unstable input power.
Emergency systems, such as access control, alarms, or fire suppression units, must function without fail during outages. The QUINT4-UPS instantly switches to battery operation, keeping critical safety circuits powered. Its Selective Fuse Breaking technology isolates faulty branches while ensuring other connected loads remain active. This capability guarantees that essential protective equipment stays online, safeguarding both personnel and assets during critical events.
| Category | Model | Part Number | Description | Benefit |
|---|---|---|---|---|
| Battery Module | UPS-BAT/PB/24DC/7AH | 1274118 | VRLA-AGM, 24 V DC, 7 Ah | Compact backup for shorter runtime, space-saving |
| UPS-BAT/PB/24DC/12AH | 1274119 | VRLA-AGM, 24 V DC, 12 Ah | Balanced capacity for medium buffer times | |
| UPS-BAT/PB/24DC/20AH | 1348516 | VRLA-AGM, 24 V DC, 20 Ah | Extended runtime for higher availability | |
| UPS-BAT/PB/24DC/40AH | 1354641 | VRLA-AGM, 24 V DC, 40 Ah | Large capacity for long-duration buffering | |
| UPS-BAT/LI/24DC/128WH | 1396415 | Lithium-Ion (LiFePO4), 128 Wh | Lightweight, longer life, higher cycle stability | |
| UPS-BAT/LI/24DC/189WH | 1460922 | Lithium-Ion (LiFePO4), 189 Wh | High-capacity Li-ion for critical loads | |
| UPS-BAT/LI/24DC/284WH | 1460923 | Lithium-Ion (LiFePO4), 284 Wh | Maximum runtime with compact design | |
| UPS-BAT/VRLA-WTR/24DC/13AH | 2320416 | Lead AGM, 13 Ah | Tool-free replacement, rugged design | |
| UPS-BAT/VRLA-WTR/24DC/26AH | 2320429 | Lead AGM, 26 Ah | Longer buffer time, robust field use | |
| Software | POWER MANAGEMENT SUITE | 1252232 | Configuration & monitoring software | Centralized UPS configuration and management |
| UPS-CONF | 2320403 | Setup software for QUINT UPS IQ & TRIO UPS | Quick configuration and parameterization |
