$ 299.92
Reliable 24 V DC power with Phoenix Contact QUINT4-UPS/24DC/24DC/20/USB. Instant backup, smart monitoring, and secure uptime for industrial systems.

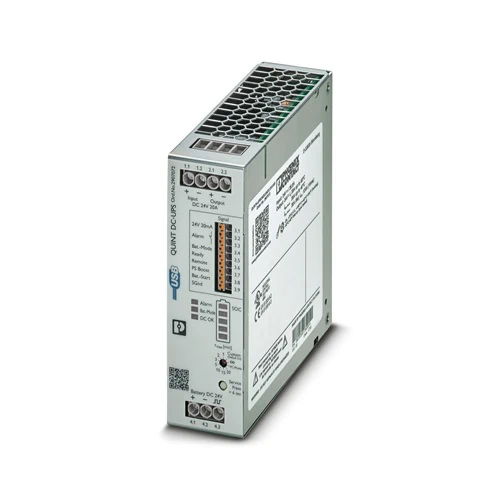

The Phoenix Contact QUINT4-UPS/24DC/24DC/20/USB is a rugged 24 V DC uninterruptible power supply built to secure continuous operation in demanding industrial settings. Delivering up to 20 A, it bridges power interruptions instantly, keeping essential equipment online. Intelligent control technology continuously monitors the condition and charge of the connected battery, optimizing its service life and ensuring readiness. Thanks to its compact DIN-rail design and communication options via USB and industrial networks, the unit integrates seamlessly into automation environments. This makes it a powerful safeguard against unplanned downtime in production, processing, and infrastructure applications.
This industrial DC UPS is engineered for environments where equipment failure cannot be tolerated. Its zero-delay switching maintains uninterrupted power, preventing resets or shutdowns during outages. Advanced fuse management technology isolates faults without disturbing other circuits, keeping parallel systems active. Flexible support for different battery types, including lithium-ion and VRLA, allows tailored backup strategies, while a strong charging current ensures quick recovery. Engineers benefit from clear diagnostic data that enables proactive maintenance and system reliability planning. In practice, the QUINT4-UPS reduces costly downtime, extends battery performance, and guarantees consistent energy supply for automation systems, machinery, and critical control equipment.
The Phoenix Contact QUINT4-UPS/24DC/24DC/20/USB is chosen for its unmatched ability to keep automation systems alive during unexpected power losses. With intelligent monitoring, zero-switching delays, and compatibility with multiple battery types, it ensures critical operations never miss a beat. Its compact form and smart communication features make it an essential upgrade for industrial reliability.
Power interruptions can halt production lines, reset controllers, and damage sensitive electronics. The QUINT4-UPS/24DC/24DC/20/USB solves this by providing instant, seamless backup power that bridges outages without disruption. It isolates faults, protects equipment, and extends system uptime, giving engineers confidence that their processes remain stable, even in unpredictable conditions.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage | 24 V DC (18–32 V range) | Flexible use in standard DC power environments |
| Output Voltage / Current | 24 V DC / 20 A | Provides stable and reliable power to critical loads |
| Switch-Over Time | 0 ms | Seamless backup without equipment resets or downtime |
| Efficiency | Up to 98% | Reduced energy loss and heat generation |
| Charging Current | Configurable up to 5 A | Fast battery recharging and improved availability |
| Battery Compatibility | VRLA, VRLA-WTR, Li-Ion | Supports multiple storage technologies for flexibility |
| IQ Technology | State-of-charge & health monitoring | Extends battery life and enables predictive maintenance |
| Communication Interfaces | USB, PROFINET, EtherNet/IP, EtherCAT | Easy integration into industrial networks |
| SFB Technology | Selective Fuse Breaking | Trips only faulty circuits, ensuring other loads stay powered |
| Operating Temperature | -25 °C to +70 °C | Suitable for harsh industrial environments |
| Mounting | DIN rail, screw connection | Quick and secure installation in control cabinets |
Download Phoenix Contact QUINT4-UPS/24DC/24DC/20/USB (2907072) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626171289 |
| Tariff Number | 85371091 |
| Weight (Net / Packaged) | 519.7 g / 592.3 g |
| Country of Origin | China |
In automated factories, even the shortest power disruption can freeze conveyor systems or disrupt robotic operations, resulting in expensive downtime and defective products. With its zero-delay switching, this DC UPS keeps controllers, drives, and sensors powered seamlessly. Intelligent monitoring of battery condition ensures maintenance teams are alerted before failures occur, reducing the risk of surprise breakdowns. The result is uninterrupted production flow and consistently high output quality.
Remote telecom towers and communication hubs rely on stable DC power to maintain signal integrity. When the mains supply fails, downtime can lead to lost connections and service interruptions. This UPS bridges those gaps instantly, while its smart battery management allows operators to see charge levels and remaining capacity in real time. This ensures reliable communication services and simplifies planning for battery replacement or servicing in hard-to-reach locations.
Medical imaging systems and patient monitoring devices are highly sensitive to even brief voltage drops. A DC UPS provides immediate backup, preventing equipment resets and data loss during outages. Selective circuit protection means non-essential loads are isolated while critical systems remain powered. This reliability supports smooth diagnostic operations, protects patient data, and helps healthcare facilities comply with strict uptime and safety requirements without costly service interruptions.
Mining equipment, oil and gas control cabinets, and outdoor automation units often face vibration, dust, and wide temperature swings. A rugged DIN-rail mounted DC UPS ensures that sensitive electronics remain powered under such demanding conditions. Its high efficiency reduces heat stress, while wide temperature tolerance makes it dependable across challenging environments. Engineers benefit from consistent uptime of control panels and critical devices, avoiding costly interruptions and improving site safety.
| Category | Model | Part Number | Description & Benefit |
|---|---|---|---|
| Battery Module | UPS-BAT/PB/24DC/4AH | 1274117 | VRLA-AGM 24 V DC, 4 Ah. Compact module with automatic detection for short-term backup. |
| UPS-BAT/PB/24DC/7AH | 1274118 | VRLA-AGM 24 V DC, 7 Ah. Provides longer buffer times with seamless UPS IQ integration. | |
| UPS-BAT/PB/24DC/12AH | 1274119 | VRLA-AGM 24 V DC, 12 Ah. Medium-duration backup with robust industrial compatibility. | |
| UPS-BAT/PB/24DC/20AH | 1348516 | VRLA-AGM 24 V DC, 20 Ah. Extended runtime for critical applications needing longer autonomy. | |
| UPS-BAT/PB/24DC/40AH | 1354641 | VRLA-AGM 24 V DC, 40 Ah. High-capacity module designed for long buffer times. | |
| UPS-BAT/LI/24DC/64WH | 1460921 | Lithium-Ion (LiFePO4) 24 V DC, 64 Wh. Lightweight, compact, suited for frequent cycling. | |
| UPS-BAT/LI/24DC/128WH | 1396415 | Lithium-Ion (LiFePO4) 24 V DC, 128 Wh. Higher energy density for space-sensitive systems. | |
| UPS-BAT/LI/24DC/189WH | 1460922 | Lithium-Ion (LiFePO4) 24 V DC, 189 Wh. Reliable extended buffering with efficient charging. | |
| UPS-BAT/LI/24DC/284WH | 1460923 | Lithium-Ion (LiFePO4) 24 V DC, 284 Wh. Longest runtime in LI range, optimized for critical loads. | |
| UPS-BAT/VRLA-WTR/24DC/13AH | 2320416 | Lead AGM VRLA 24 V DC, 13 Ah. Tool-free replacement, auto recognition, ideal for quick swaps. | |
| UPS-BAT/VRLA-WTR/24DC/26AH | 2320429 | Lead AGM VRLA 24 V DC, 26 Ah. High-capacity, safe integration for extended runtime needs. | |
| Data Cable | MINI-SCREW-USB-DATACABLE | 2908217 | Mini-USB cable for connecting UPS to PCs, enabling monitoring and configuration. |
| Software | POWER MANAGEMENT SUITE | 1252232 | Software for advanced system configuration, monitoring, and control. |
| UPS-CONF | 2320403 | Free tool for setup and diagnostics of QUINT UPS IQ and TRIO UPS units. |
