$ 481.16
Phoenix Contact QUINT4-UPS/24DC/24DC/20/EIP ensures 24V DC backup power with IQ Technology, seamless switch-over, and smart monitoring for industrial systems.

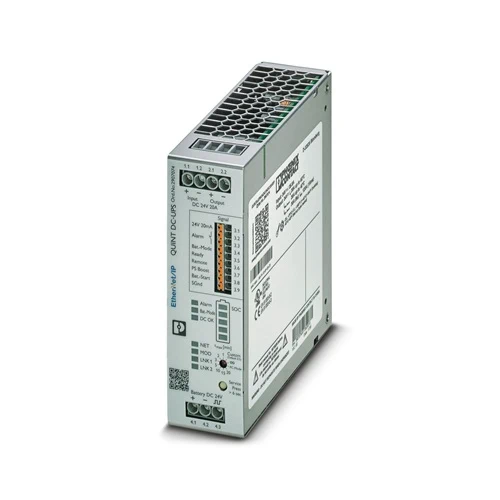

The Phoenix Contact QUINT4-UPS/24DC/24DC/20/EIP is a compact and intelligent 24 V DC uninterruptible power supply engineered for maximum system reliability. It safeguards industrial equipment from unexpected power interruptions by providing seamless switch-over without downtime. With a 20 A output current and exceptional energy efficiency, this UPS ensures dependable performance while conserving resources. The integrated IQ Technology monitors battery condition and charge level in real time, enabling proactive maintenance. Designed for DIN rail installation, it is a versatile solution that keeps mission-critical processes running smoothly even in challenging industrial environments.
The Phoenix Contact QUINT4-UPS/24DC/24DC/20/EIP combines durability, intelligence, and flexibility to deliver continuous protection for sensitive automation systems. Its advanced battery management recognizes different storage technologies, optimizes charging, and extends operational life. The selective fuse breaking function ensures downstream loads remain active, preventing full system shutdowns. With built-in network interfaces such as EtherNet/IP and Modbus/TCP, operators can monitor system health and status remotely, reducing unplanned downtime. Whether supporting controllers, safety systems, or production lines, this UPS minimizes costly interruptions, enhances equipment reliability, and provides peace of mind in demanding industrial operations.
Because it’s more than a backup—it’s intelligent power insurance for your automation. With IQ Technology, robust 20 A output, and seamless 0 ms switch-over, it guarantees your equipment never feels the difference when the grid falters. Designed for industrial reliability, it delivers both performance and peace of mind in one compact package.
It eliminates the costly risk of downtime from sudden power failures. By keeping controllers, safety circuits, and production lines continuously powered, the QUINT4-UPS/24DC/24DC/20/EIP ensures processes run without disruption. Its intelligent monitoring prevents battery surprises, allowing maintenance teams to stay ahead of failures before they become expensive shutdowns.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage Range | 18…32 V DC (nominal 24 V DC) | Wide input range ensures stable operation |
| Output Voltage | 24 V DC (19…32 V DC battery operation) | Delivers consistent power for sensitive equipment |
| Output Current | 20 A (25 A Static Boost, 30 A Dynamic Boost) | Handles peak demands with robust load support |
| Efficiency | Up to 97% | Reduces energy losses and operating costs |
| Switch-over Time | 0 ms | Guarantees seamless operation during mains failure |
| Battery Management | IQ Technology with SOC & SOH monitoring | Extends battery life and prevents unexpected failures |
| Battery Compatibility | VRLA, VRLA-WTR, Li-Ion | Supports multiple energy storage technologies |
| Charging Current | Configurable up to 5 A | Optimized charging for different battery capacities |
| Interfaces | EtherNet/IP, Modbus/TCP, USB, PROFINET, EtherCAT | Flexible integration into modern industrial networks |
| Protection Features | Reverse polarity protection, SFB Technology | Enhances system safety and prevents overload shutdowns |
| Mounting | DIN rail, 40 × 130 × 125 mm | Space-saving design for control cabinet integration |
| Environmental Conditions | -25 °C to +70 °C operation, IP20 | Reliable performance in harsh industrial environments |
| Certifications | UL, CSA, DNV, KC, EAC, CE | Ensures compliance with global safety standards |
Download Phoenix Contact QUINT4-UPS/24DC/24DC/20/EIP – Article 2907074 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626171708 |
| Customs Tariff Number | 85371091 |
| Weight (Net / With Packaging) | 542.22 g / 594 g |
| Country of Origin | China |
In modern food production plants, conveyors must run without interruption to keep products moving and avoid spoilage. The QUINT4-UPS/24DC/24DC/20/EIP ensures that even if the main supply fluctuates, power remains stable. Its integrated EtherNet/IP interface allows continuous communication with automation systems, while the zero-millisecond transfer time prevents line stoppages. With IQ Technology monitoring battery status, maintenance teams can act before failures disrupt operations.
Automotive assembly lines demand high reliability, especially for safety circuits and robotic arms. The QUINT4-UPS provides instant switchover to backup power and employs selective fuse-breaking to isolate only faulty loads. This means critical safety devices remain active even when part of the system experiences issues. By preventing full shutdowns, the UPS keeps production flowing while protecting both personnel and equipment.
Water and wastewater treatment facilities rely on remote pump stations that cannot afford downtime. The QUINT4-UPS secures operations with robust battery compatibility, whether VRLA or Li-Ion, and optimizes charging cycles to extend service life. With its ability to report battery condition and system status in real time, operators gain early warning of performance issues. This proactive approach reduces emergency repairs and ensures uninterrupted water flow.
In renewable energy farms, monitoring devices and inverters require continuous 24 V DC supply to record performance data. The QUINT4-UPS maintains power stability during sudden drops or grid disturbances. Its high efficiency reduces energy waste, while dynamic boost capacity supports short-term peak demands. With intelligent diagnostics, engineers can remotely track system health, ensuring accurate data collection and minimizing costly site visits.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Energy Storage – VRLA Battery Module | UPS-BAT/PB/24DC/4AH | 1274117 | Compact 4 Ah VRLA module, auto-detected by UPS, ideal for short backup times |
| UPS-BAT/PB/24DC/7AH | 1274118 | 7 Ah capacity for moderate runtime, maintenance-friendly VRLA design | |
| UPS-BAT/PB/24DC/12AH | 1274119 | 12 Ah module extends buffer time for critical loads | |
| UPS-BAT/PB/24DC/20AH | 1348516 | Larger 20 Ah module, supports long-lasting backup operations | |
| UPS-BAT/PB/24DC/40AH | 1354641 | High-capacity 40 Ah VRLA battery for extended runtimes | |
| Energy Storage – Lithium-Ion Battery Module | UPS-BAT/LI/24DC/64WH | 1460921 | Lightweight 64 Wh Li-Ion pack, fast recharge and long service life |
| UPS-BAT/LI/24DC/128WH | 1396415 | 128 Wh module, stable operation under varied temperatures | |
| UPS-BAT/LI/24DC/189WH | 1460922 | Medium capacity, optimized for frequent cycling | |
| UPS-BAT/LI/24DC/284WH | 1460923 | High energy storage for maximum uptime in demanding systems | |
| Energy Storage – VRLA-WTR Battery Module | UPS-BAT/VRLA-WTR/24DC/13AH | 2320416 | Tool-free replaceable VRLA module, ensures quick maintenance |
| UPS-BAT/VRLA-WTR/24DC/26AH | 2320429 | Larger 26 Ah VRLA-WTR module for long buffer durations | |
| Software Accessory | POWER MANAGEMENT SUITE | 1252232 | Configuration and monitoring software for QUINT UPS management |
| UPS-CONF | 2320403 | Free configuration tool for UPS setup and diagnostics |
