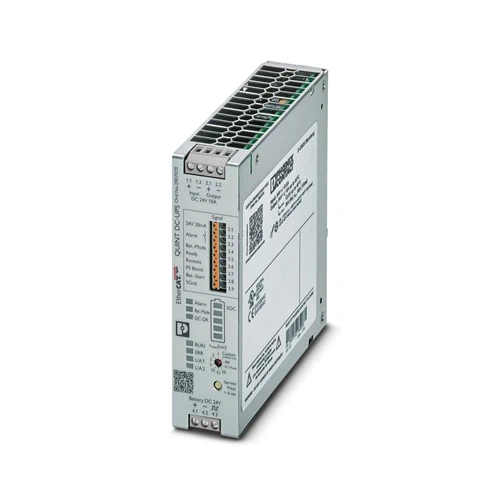

Phoenix Contact QUINT4-UPS/24DC/24DC/10/EC – Smart 24 V DC Uninterruptible Power Supply

The Phoenix Contact QUINT4-UPS/24DC/24DC/10/EC is a compact and intelligent 24 V DC UPS designed to maintain uninterrupted power in automation and control systems. With a 10 A output and seamless transfer during power interruptions, it ensures critical equipment continues operating without disruption. Built with IQ Technology® for advanced monitoring and diagnostics, this UPS enhances system availability and protects processes against costly downtime. Its DIN rail design saves space in control cabinets, while multi-battery compatibility and fast charging provide reliable backup in demanding industrial environments.

The QUINT4-UPS/24DC/24DC/10/EC combines powerful performance with smart energy management. Its battery management continuously evaluates charge levels and battery health, helping operators plan maintenance effectively. Boost and selective fuse breaking technologies safeguard circuits and keep essential loads running under heavy demand. With flexible integration through industrial communication interfaces, it easily adapts to complex networks. This UPS delivers peace of mind by preventing system interruptions, extending battery life, and supporting both VRLA and Li-ion storage modules. Ideal for applications like production lines, machine controls, and safety systems, it ensures that operations remain stable even during unexpected power outages.

Why Phoenix Contact QUINT4-UPS/24DC/24DC/10/EC?

The QUINT4-UPS/24DC/24DC/10/EC stands out as a highly intelligent UPS that doesn’t just provide backup—it actively manages and protects your power system. With advanced monitoring, fast charging, and seamless integration into industrial networks, it ensures your processes never pause. Its compact DIN rail design and multi-battery flexibility make it a future-ready choice for demanding automation environments.

What Problem Does It Solve?

Power failures and voltage drops can cripple automation, leading to costly downtime and damaged equipment. The QUINT4-UPS/24DC/24DC/10/EC eliminates this risk by delivering instant, uninterrupted 24 V DC power. It monitors battery health in real time, adapts to different storage technologies, and safeguards circuits during overloads. This ensures stable operations, protects sensitive machinery, and keeps production running without interruptions.

Key Features & Specifications – Phoenix Contact QUINT4-UPS/24DC/24DC/10/EC : Article Number 2907070

Download QUINT4-UPS/24DC/24DC/10/EC (2907070) Datasheet

Commercial Data – Phoenix Contact QUINT4-UPS/24DC/24DC/10/EC : Article Number 2907070

The Applications

1. Automated Conveyor Lines in Manufacturing

In fast-moving production environments, conveyors and robotic handlers cannot afford even a brief power cut. A 24 V DC UPS ensures the line continues to run smoothly during voltage dips or outages, avoiding material jams and costly resets. Its rapid switch-over maintains continuous operation, while boost technology handles sudden inrush currents from motors. The intelligent monitoring system provides operators with clear status updates on load and battery condition. With these insights, maintenance teams can plan ahead instead of reacting to failures. This makes the UPS a vital safeguard for uninterrupted manufacturing flow and consistent product output.

2. Remote Building Automation and Energy Systems

Building control units for HVAC, lighting, and safety systems often operate in remote or inaccessible panels. A compact 24 V DC UPS protects these controllers from sudden power loss, ensuring essential functions stay active. By maintaining stable energy supply, facility managers can prevent system resets, comfort disruptions, and safety risks. The smart battery management extends life expectancy and reduces unexpected replacements. Integrated communication interfaces allow the UPS to report real-time operating status back to central monitoring platforms. This guarantees building systems remain efficient and responsive, even during temporary blackouts or maintenance interruptions.

3. Process Control Panels with Safe Shutdown Capability

In industrial plants, control panels manage machinery that must shut down in a controlled manner if power is lost. A 24 V DC UPS provides the buffer time needed to save data, move actuators to safe positions, and protect sensitive electronics. Its zero-millisecond switchover prevents system crashes, while selective fuse breaking ensures only faulty circuits are isolated without taking down the entire panel. The unit’s compact DIN rail design saves space inside crowded enclosures. This controlled power assurance not only prevents equipment damage but also enhances worker safety by reducing the chance of sudden machine stops.

4. Edge Computing and Industrial IoT Devices

Modern factories rely on edge devices and IoT gateways to process data in real time. When deployed in harsh or remote areas, these devices are vulnerable to unstable supply conditions. A DIN-rail mounted 24 V DC UPS provides reliable backup, allowing edge processors to continue logging, analyzing, and transmitting data during power disturbances. Built-in monitoring ensures operators know the exact battery health and load conditions, enabling predictive maintenance. Its rugged design tolerates wide temperature ranges, making it dependable in demanding sites. This prevents data loss, keeps communication channels alive, and ensures continuous insight into industrial operations.
