$ 272.32
Ensure uninterrupted 24V DC power with Phoenix Contact QUINT-UPS/24DC/24DC/10. Intelligent UPS with IQ tech, fast charging, and reliable system protection.

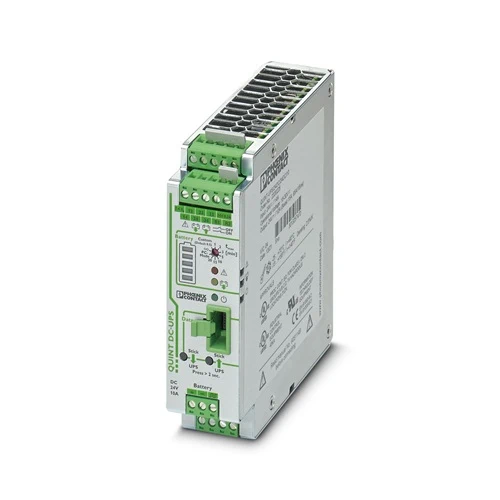

The Phoenix Contact QUINT-UPS/24DC/24DC/10 Uninterruptible Power Supply provides a secure 24 V DC power source to keep automation and control systems running without interruption. Delivering up to 10 A output current, it integrates advanced IQ technology to monitor energy storage in real time, ensuring optimal use of buffer time and proactive battery management. Its compact DIN rail design and high efficiency make it suitable for industrial control panels where reliability and space are crucial. By maintaining consistent power during outages or fluctuations, this UPS prevents downtime and safeguards critical operations.
The QUINT-UPS/24DC/24DC/10 combines high efficiency, robust performance, and intelligent diagnostics to give industries a dependable backup power solution. It supports tool-free battery replacement during operation, fast charging, and communication options for seamless integration into existing systems. With features such as POWER BOOST for heavy start-up loads and SFB technology for quick circuit breaker tripping, it ensures equipment protection in demanding conditions. In practice, this means fewer unplanned shutdowns, extended service life of batteries, and uninterrupted performance across automation, transport, and energy applications. The result is higher productivity, reduced maintenance costs, and peace of mind in critical environments.
Because it’s more than just a UPS—it’s an intelligent safeguard for your automation systems. With real-time monitoring, predictive diagnostics, and IQ technology, it ensures uninterrupted 24 V DC power. Compact yet powerful, it adapts seamlessly into industrial environments, protecting your operations against failures and giving engineers complete control over energy storage performance.
Unplanned downtime and power interruptions can cripple automation lines, damage equipment, and disrupt productivity. The QUINT-UPS/24DC/24DC/10 eliminates these risks by maintaining continuous power, optimizing battery life, and handling demanding start-up currents. It solves the problem of unreliable energy supply, ensuring sensitive processes run smoothly even during outages, fluctuations, or demanding operating conditions.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage Range | 18…30 V DC | Provides flexibility for different DC supply conditions |
| Nominal Output Voltage | 24 V DC | Stable power delivery for automation and control systems |
| Output Current | 10 A continuous (15 A POWER BOOST) | Handles high start-up loads without shutdowns |
| Efficiency | >98% (mains and battery mode) | Minimizes energy loss, lowers operating costs |
| Buffer Time | Up to 3 hours (with 38 Ah battery module) | Ensures extended runtime during power failures |
| IQ Technology | Intelligent battery monitoring & management | Optimizes battery usage and extends service life |
| Battery Charging | Rapid charging with temperature compensation | Ensures fast recovery and reliable performance |
| Circuit Protection | SFB technology up to 60 A | Enables quick tripping of standard circuit breakers |
| Operating Temperature | -25 °C to +70 °C | Suitable for harsh industrial environments |
| Mounting Type | DIN rail (NS 35) | Space-saving, easy integration into control cabinets |
| Signaling & Interfaces | Relay outputs, LED, IFS interface | Clear status indication and easy communication |
| Housing Material | Metal (zinc-plated steel & aluminum) | Provides durability and long-term stability |
| Certifications | UL, cUL, EAC, DNV, BV, KC, IEC | Trusted compliance for global industrial standards |
Download Phoenix Contact QUINT-UPS/24DC/24DC/10 (2320225) Datasheet
| Commercial Attribute | Details |
|---|---|
| GTIN (EAN) | 4046356554206 |
| Customs Tariff Number | 85371091 |
| Weight (Excl. Packaging) | 513 g |
| Weight (Incl. Packaging) | 702.8 g |
| Country of Origin | India |
In modern factories, production lines rely on uninterrupted power to keep PLCs, sensors, and robotic systems running smoothly. Even a brief power drop can stop conveyors, desynchronize processes, or damage sensitive equipment. The QUINT-UPS/24DC/24DC/10 ensures continuous 24 V DC supply during these events. With its POWER BOOST feature, motors and drives receive the surge current they need without shutdowns. Preventive monitoring warns operators about battery status in advance, avoiding surprise failures. This combination of stable power, predictive diagnostics, and robust load handling protects productivity, reduces costly downtime, and keeps the manufacturing process consistent and reliable.
Power outages in infrastructure such as water treatment plants, building automation systems, or traffic management networks can compromise safety and disrupt essential services. The QUINT-UPS/24DC/24DC/10 provides a secure window of backup power that allows operators to shut down systems in a controlled manner or maintain critical functions until mains power returns. Its intelligent energy storage management optimizes runtime, ensuring batteries are always ready when needed. With reliable circuit breaker tripping through SFB technology, connected equipment remains protected. This UPS minimizes unplanned shutdowns, safeguards data, and gives engineers the time needed to act during emergencies.
Telecommunication towers, data nodes, and edge computing units are often deployed in remote or harsh environments where power quality is unpredictable. A single interruption can result in lost data, disrupted communication, or costly service downtime. The QUINT-UPS/24DC/24DC/10 guarantees stable DC output, maintaining connectivity for routers, modems, and monitoring equipment even during brownouts. Its rapid charging system ensures the backup source is quickly restored, while compact DIN-rail mounting makes integration easy in tight enclosures. This solution ensures uninterrupted communication, protects network integrity, and provides operators with continuous visibility and control of critical telecom infrastructure.
Railway signaling units and marine navigation equipment demand the highest reliability, as even short-term power losses can cause operational and safety risks. The QUINT-UPS/24DC/24DC/10 is designed to withstand tough environments, with wide operating temperature tolerance and robust housing. Its seamless switchover to battery mode ensures continuous operation of signal controllers, navigation systems, or onboard communication panels. By intelligently managing battery health and offering quick breaker response, it minimizes risks caused by unstable supply. Engineers benefit from peace of mind knowing that essential systems remain powered, whether on a railway trackside cabinet or within a ship’s control deck.
| Category | Model | Part Number | Benefit |
|---|---|---|---|
| Battery Modules (VRLA-AGM) | UPS-BAT/PB/24DC/1.2AH | 1274520 | Compact backup for short buffer times |
| UPS-BAT/PB/24DC/4AH | 1274117 | Longer runtime for small control systems | |
| UPS-BAT/PB/24DC/7AH | 1274118 | Balanced capacity for mid-sized loads | |
| UPS-BAT/PB/24DC/12AH | 1274119 | Extended runtime for critical operations | |
| UPS-BAT/PB/24DC/20AH | 1348516 | High-capacity storage for long outages | |
| UPS-BAT/PB/24DC/40AH | 1354641 | Maximum runtime for demanding systems | |
| Lithium-Ion & Capacitor Storage | UPS-BAT/LI/24DC/128WH | 1396415 | Lightweight LiFePO4 with long cycle life |
| UPS-CAP/24DC/10A/10KJ | 2320377 | Maintenance-free capacitor storage | |
| UPS-CAP/24DC/20A/20KJ | 2320380 | High-capacity capacitor for long buffering | |
| Mounting Accessories | QUINT-PS-ADAPTERS7/1 | 2938196 | Adapter for S7-300 rail installation |
| UTA 107/30 | 2320089 | Universal DIN rail adapter (supplied) | |
| UWA 182/52 | 2938235 | Wall adapter for vibration resistance | |
| Communication & Configuration | IFS-RS232-DATACABLE | 2320490 | RS-232 data connection to UPS/PC |
| IFS-USB-DATACABLE | 2320500 | USB interface for PC integration | |
| IFS-CONFSTICK | 2986122 | Stores and transfers UPS configuration | |
| IFS-CONFSTICK-L | 2901103 | Memory block with handle for easy backup |
