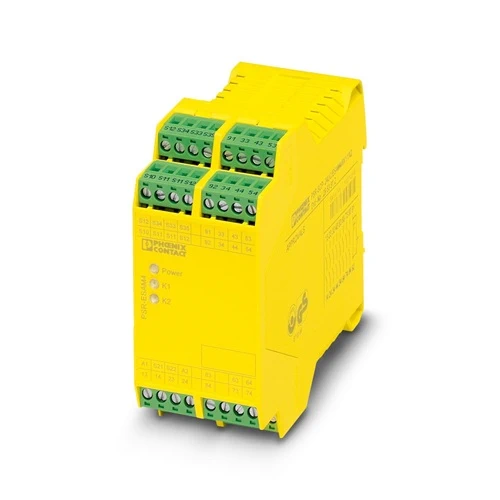

Phoenix Contact PSR-SCP-24UC/ESAM4/8X1/1X2 relay delivers SIL3, Cat4 safety, 8 outputs, fast response, and durable protection for machines and operators.
The Phoenix Contact PSR-SCP-24UC/ESAM4/8X1/1X2 Safety Relay provides dependable protection for emergency stop buttons and safety door monitoring. Designed to meet rigorous safety classifications up to SIL 3 and Category 4, Performance Level e, it ensures reliable machine and operator safety. This unit supports both single- and dual-channel control and incorporates eight independent safety outputs, giving engineers flexibility when designing safety circuits. Its compact DIN rail mounting saves space in control cabinets, while force-guided relay contacts guarantee safe switching. Built for industrial reliability, it helps manufacturers comply with global safety standards while maintaining operational efficiency.
The PSR-SCP-24UC/ESAM4/8X1/1X2 Safety Relay offers practical advantages for industries that demand continuous uptime and secure operations. It supports manual and automatic start functions in one device, simplifying setup and minimizing wiring complexity. Fast response times help reduce hazards during emergency conditions, while its long mechanical service life of up to ten million cycles ensures durability in demanding environments. With multiple safety outputs and a dedicated signaling path, it enables flexible integration into complex systems. This makes it an excellent choice for applications such as automated assembly lines, packaging equipment, and high-speed production machinery where reliability, compliance, and worker safety are top priorities.
Why Phoenix Contact PSR-SCP-24UC/ESAM4/8X1/1X2?
The Phoenix Contact PSR-SCP-24UC/ESAM4/8X1/1X2 stands out because it combines advanced safety certifications with exceptional reliability. It integrates both manual and automatic restart modes into one device, reducing setup complexity and wiring time. With eight enabling outputs and robust force-guided relay contacts, it offers engineers the flexibility to design fault-tolerant safety systems. This makes it a trusted choice for industries seeking compact, high-performance solutions that ensure both compliance and peace of mind.
What problem does it solve?
This safety relay solves the challenge of protecting both operators and machines in high-risk environments. It ensures that emergency stops and safety door monitoring respond instantly and reliably, preventing accidents and costly downtime. By providing redundant safety paths, quick fault detection, and long service life, it minimizes the risks associated with equipment failures or unsafe operations. Manufacturers gain a dependable safeguard that balances productivity with the highest level of functional safety.
Feature | Details | Benefit |
---|---|---|
Safety Certifications | SIL 3 (IEC 61508/62061), Cat. 4, PL e (EN ISO 13849) | Meets strict international safety standards |
Operating Voltage | 24 V DC (±10%) | Standardized control voltage for industrial systems |
Outputs | 8 enabling safety paths, 1 signaling output | Supports complex safety circuit integration |
Start Modes | Manual and automatic in one device | Flexible setup for different applications |
Response Time | < 140 ms (manual), < 120 ms (auto) | Fast reaction enhances operator safety |
Service Life | Up to 10 million mechanical cycles | Long-lasting durability in demanding use |
Mounting Type | DIN rail, vertical or horizontal | Easy installation and cabinet integration |
Protection Rating | IP20 (device), min. IP54 (installation) | Reliable protection in industrial environments |
Operating Temperature | -20 °C to +55 °C | Wide range ensures adaptability to harsh conditions |
Housing Color | Yellow (RAL 1018) | Clear visual identification for safety components |
Download Phoenix Contact PSR-SCP-24UC/ESAM4/8X1/1X2 – Article 2963912 Datasheet
Commercial Data | Details |
---|---|
GTIN Number | 4017918899707 |
Customs Tariff Number | 85371098 |
Weight per Piece | 339.64 g (without packing) / 369.67 g (with packing) |
Country of Origin | Germany (DE) |
On long conveyor lines used in logistics and packaging, safety relays like the PSR-SCP-24UC/ESAM4/8X1/1X2 allow multiple emergency-stop buttons to be connected along the belt. If an operator presses any button, the relay disconnects power within milliseconds, stopping motors before accidents occur. The eight enabling outputs provide redundancy for different motor sections, while force-guided contacts ensure the shutdown is fail-safe. This setup reduces the risk of entrapment and increases worker confidence when operating large automated transport systems.
In factories where operators work close to heavy presses or molding equipment, safety mats are installed at access zones. When someone steps onto the mat, the PSR-SCP relay detects the signal through dual channels and immediately halts machine movement. Its ability to detect wiring faults adds another layer of protection, ensuring the safety circuit cannot be bypassed. By supporting both automatic and manual reset options, the relay allows flexible operation while keeping operators safe during interventions or setup activities.
Robotic cells often include protective doors or gates to separate people from moving machinery. The PSR-SCP safety relay connects to interlock switches, disabling power whenever a door is opened. Its quick response time minimizes hazards from unexpected entry into the work cell. The multiple safety outputs can control several actuators or contactors at once, giving engineers flexibility when designing safety systems. Thanks to its long mechanical service life, it performs reliably even with frequent door access in high-cycle manufacturing environments.
High-speed packaging machines use light curtains to detect intrusion into dangerous areas such as sealing jaws or cutting stations. The PSR-SCP relay evaluates these signals and cuts off power instantly if a beam is interrupted. Its dual-channel design ensures that even sensor faults or wiring errors are recognized and safely managed. Because of its fast switching time, the relay minimizes machine movement after a safety event, protecting workers while keeping overall production efficiency high in demanding packaging operations.
Category | Model | Part Number | Description & Benefit |
---|---|---|---|
Coding Profile | CP-MSTB | 1734634 | Red coding element for plugs or headers. Prevents mismatched connections and improves wiring reliability. |
Coding Section | CR-MSTB | 1734401 | Red coding piece for headers or plugs. Ensures only correct connectors are used, reducing wiring errors. |
Crimping Tool | CRIMPFOX 6 | 1212034 | Crimping pliers for ferrules 0.25–6.0 mm². Delivers secure wire terminations and long-lasting safety connections. |
Emergency Stop Actuator | PSR-ESS-M0-H110 | 1221757 | Actuator with anti-lock collar for modular E-stop switches. Provides strong feedback and durability in safety systems. |
Module Holder | PSR-ESS-ACC-CB1-C3 | 1221747 | Connects actuator and contact block with bayonet lock. Allows fast assembly and safe modular installation. |
Contact Module | PSR-ESS-ACC-CB1-NC-SC | 1221752 | Force-guided NC contact block for modular E-stop switches. Enables shutdowns up to PL e / SIL 3 safety levels. |
