Compact 24V relay module with manual switch, 6 A load capacity, safe isolation, and easy push-in wiring for efficient industrial automation.

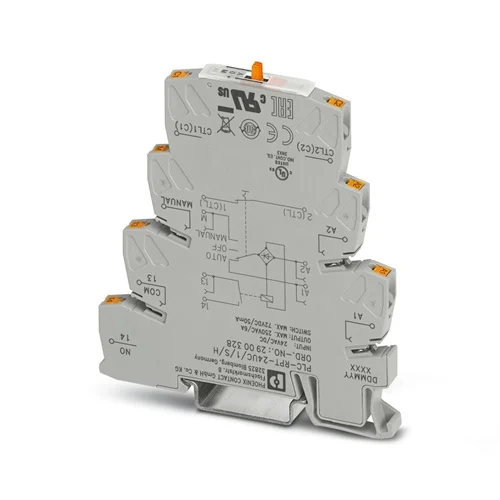

The Phoenix Contact PLC-RPT-24UC/1SH relay module is a slim 6.2 mm interface component built for reliable switching and electrical isolation in automation systems. It operates on 24 V AC/DC and integrates a relay with manual control options for “Manual, Zero, and Automatic” operation. With a switching capacity up to 6 A, robust insulation levels, and compact DIN-rail mounting, it solves the challenge of saving cabinet space while ensuring dependable performance. Its design is optimized for engineers needing a safe, versatile, and maintenance-friendly switching solution.
Engineered for durability and flexibility, the Phoenix Contact PLC-RPT-24UC/1SH supports both AC and DC control voltages, making it suitable for a wide range of control applications. The module features quick push-in connections that speed up installation and ensure secure wiring in compact panels. A built-in LED indicator provides clear visibility of the relay’s operating state, while the floating confirmation contact enhances system monitoring. Designed for harsh environments, the flame-retardant housing and shipbuilding approvals make it reliable under vibration and fluctuating humidity. With manual override functionality, it simplifies troubleshooting and helps maintain system availability with minimal downtime.
Why Phoenix Contact PLC-RPT-24UC/1SH?
Because it’s more than just a relay module — it’s a precision-engineered, space-saving solution designed for control panels where every millimeter matters. Its manual override switch, robust 6 A load capacity, and simple push-in connections make it the smart choice for engineers who want safety, efficiency, and flexibility in one compact unit.
What problem does it solve?
The PLC-RPT-24UC/1SH addresses the constant struggle of balancing reliability, compactness, and easy maintenance in automation systems. Instead of wasting cabinet space or facing wiring complexity, this module provides a unified solution with clear status indication, safe isolation, and manual operation options — helping operators reduce downtime, simplify troubleshooting, and keep processes running smoothly.
| Feature | Details | Benefit |
|---|---|---|
| Width | 6.2 mm | Saves panel space, ideal for compact control cabinets |
| Nominal Input Voltage | 24 V AC/DC (19.4–33.6 V range) | Flexible use in mixed-voltage environments |
| Maximum Switching Current | 6 A | Handles demanding loads with reliable performance |
| Switching Contact | 1 N/O contact, AgSnO with hard gold plating | Long service life with secure, low-resistance connections |
| Manual Switch Functions | Manual / Zero / Automatic | Quick manual override for setup, maintenance, or troubleshooting |
| Operating Indicator | Integrated yellow LED | Clear visual status for rapid system diagnostics |
| Insulation Voltage | 250 V AC, surge up to 6 kV | Safe isolation between coil and contact side |
| Housing Material | UL 94 V0 rated | Flame-retardant for enhanced safety in industrial settings |
| Temperature Range | –20 °C to +60 °C | Suitable for demanding industrial and shipbuilding environments |
| Connection Type | Push-in terminals | Faster installation with secure, vibration-resistant wiring |
| Approvals | CE, UKCA, Shipbuilding certified | Verified compliance for global and marine applications |
Download Phoenix Contact PLC-RPT-24UC/1SH 2900328 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356507554 |
| Tariff Number | 85364190 |
| Weight | 30 g (excluding packing) |
| Country of Origin | Germany (DE) |
In large office or commercial buildings, relay modules like the PLC-RPT-24UC/1SH act as the bridge between low-voltage control systems and HVAC components such as fans, dampers, and heating elements. The integrated manual switch allows technicians to take direct control during maintenance or testing, while the LED indicator gives instant status feedback. By offering safe isolation between coil and contacts, the module ensures building automation systems operate reliably, even in environments with multiple voltage levels or when space in the control cabinet is limited.
High-speed packaging and manufacturing lines require responsive relay interfaces to handle motor starters, solenoids, and safety circuits. The PLC-RPT-24UC/1SH supports up to 6 A switching, making it suitable for these control loads. Its compact 6.2 mm design is ideal for panels where dozens of relays must fit side by side. The push-in wiring terminals cut installation time and reduce miswiring risks, while the manual override switch helps operators restart or isolate a section of the line quickly after a stoppage, minimizing downtime and increasing productivity.
On ships and offshore platforms, reliability under vibration, salt air, and fluctuating humidity is critical. The PLC-RPT-24UC/1SH relay module is well-suited for pump management, ballast systems, or valve actuation tasks in these environments. Its flame-retardant housing and compliance with marine approvals provide additional confidence in harsh conditions. The floating confirmation contact helps ensure that switching actions are verified, while the manual operating mode gives crews the ability to override automation in emergencies or during maintenance work.
Railway infrastructure and onboard systems rely on relays to safely translate control signals into switching actions for lights, interlocks, and auxiliary circuits. The PLC-RPT-24UC/1SH is compact enough for crowded enclosures yet robust enough to withstand the voltage fluctuations common in traction applications. With isolation between coil and contact, it protects sensitive electronics from surges, while the LED status indication improves diagnostics during service checks. The manual switch also makes it easier for engineers to carry out quick troubleshooting or force a circuit when automatic systems are not available.
