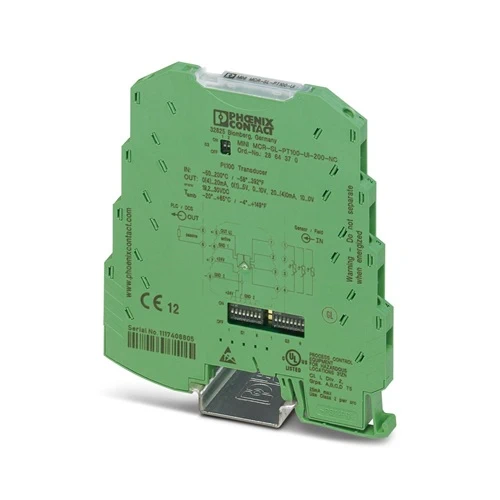

Phoenix Contact MINI MCR-SL-PT100-UI-200-NC Transmitter

Phoenix Contact MINI MCR-SL-PT100-UI-200-NC Temperature Transmitter

The Phoenix Contact MINI MCR-SL-PT100-UI-200-NC temperature transmitter is an ultra-compact device engineered for precise measurement and reliable signal conditioning. Designed to handle Pt100 sensors across a wide range of -50 °C to +200 °C, it ensures safe isolation and accurate signal conversion in industrial systems. With its slim 6.2 mm housing and convenient DIN rail mounting, it helps engineers save space while maintaining high accuracy in temperature monitoring. This transmitter is ideal for applications where consistent performance, electrical isolation, and secure integration into control systems are critical.

The MINI MCR-SL-PT100-UI-200-NC combines flexibility with reliability to improve industrial automation efficiency. It allows users to configure outputs via DIP switches, ensuring compatibility with different process control requirements. Built-in LED diagnostics support fast error detection, which helps minimize downtime and maintenance costs. Its ability to work with 2-, 3-, or 4-wire Pt100 sensors gives installation teams the freedom to adapt to various setups without sacrificing measurement stability. By reducing signal noise and offering dependable long-term operation, this transmitter enables precise temperature tracking in manufacturing plants, HVAC systems, and energy facilities—supporting smarter and more efficient operations.

Why Phoenix Contact MINI MCR-SL-PT100-UI-200-NC?

Choose the Phoenix Contact MINI MCR-SL-PT100-UI-200-NC because it delivers compact precision, reliable signal isolation, and easy configuration—all in just 6.2 mm width. It transforms raw Pt100 sensor data into stable, interference-free analog signals, giving engineers a dependable solution for demanding industrial automation. Its diagnostic features and adaptability make it an investment in accuracy and uptime.

What Problem Does It Solve?

This transmitter solves the challenge of inaccurate, noisy, or unstable temperature readings that can disrupt process control. By isolating, amplifying, and converting sensor inputs, it ensures that control systems receive clean, reliable signals. The result is fewer errors, faster troubleshooting, and optimized performance in critical systems like manufacturing, HVAC, and energy monitoring.

Key Features & Specifications – Phoenix Contact MINI MCR-SL-PT100-UI-200-NC: 2864370

Download Phoenix Contact MINI MCR-SL-PT100-UI-200-NC 2864370 Datasheet

Commercial Information – Phoenix Contact MINI MCR-SL-PT100-UI-200-NC: 2864370

The Applications

1. Building Energy Management Systems

In commercial complexes and office towers, temperature stability is vital for both comfort and efficiency. Pt100 sensors combined with this transmitter provide precise measurements that can be converted into clean, interference-free signals for building automation systems. By using configurable outputs, engineers can link HVAC units directly to controllers without noise distortion. The transmitter’s compact design saves space in crowded control panels, while diagnostic indicators allow quick identification of wiring or sensor faults. This leads to lower maintenance time, optimized energy use, and consistent indoor conditions across multiple floors, reducing both operating costs and environmental impact.

2. Chemical Processing and Reactor Control

Industrial chemical plants rely heavily on accurate temperature monitoring to maintain safe and consistent reactions. This transmitter isolates and converts Pt100 sensor inputs, ensuring stable outputs even in noisy environments filled with motors and pumps. Its fast response time allows control systems to react immediately to changes in process heat, minimizing the risk of product deviations or unsafe temperature rises. By supporting multiple wiring methods, it adapts easily to different installation requirements. Maintenance teams benefit from its built-in error indication, making troubleshooting more efficient. The result is smoother operations, reduced downtime, and safer handling of temperature-sensitive chemical processes.

3. Food and Beverage Production

In food processing facilities, accurate temperature control is essential for pasteurization, storage, and packaging. The transmitter works with Pt100 sensors to deliver stable readings that comply with strict safety standards. Its ability to maintain accuracy under humidity and frequent wash-downs makes it well suited for production lines. Configurable outputs allow seamless integration with PLCs and monitoring systems, ensuring temperatures remain within narrow tolerances. Quick fault detection through LED diagnostics prevents unnoticed deviations, reducing the risk of spoilage. By guaranteeing dependable measurement and transmission, the device helps producers maintain quality, extend shelf life, and protect consumer safety.

4. Boiler and Steam System Monitoring

Boilers and steam distribution networks must operate under precise thermal conditions for safety and energy efficiency. This transmitter ensures that Pt100 sensor data is reliably isolated and transmitted without interference from heavy industrial equipment. Its accuracy over a broad range provides dependable control of both water and steam temperatures. With configurable analog outputs, it connects easily to supervisory systems for continuous monitoring. The compact housing saves panel space in crowded boiler rooms, while built-in diagnostics alert operators to potential sensor issues. This combination supports stable steam quality, prevents equipment damage, and optimizes fuel consumption, making operations safer and more economical.
