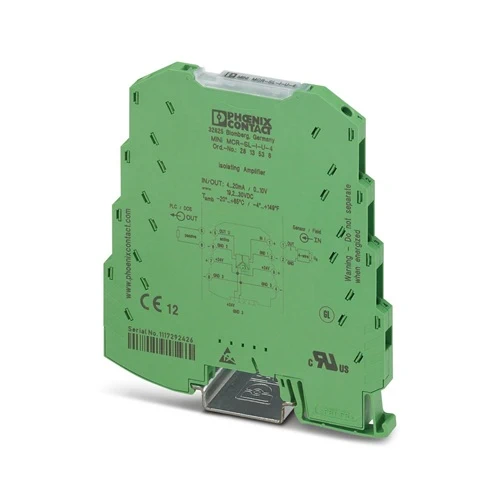

Phoenix Contact MINI MCR-SL-I-U-4 Signal Conditioner

Phoenix Contact MINI MCR-SL-I-U-4 Signal Conditioner – Compact 3-Way Isolation for Reliable Signal Conversion

The Phoenix Contact MINI MCR-SL-I-U-4 signal conditioner (Article No. 2813538) is designed to provide dependable isolation and precise signal conversion in industrial environments. It converts a 4–20 mA current input into a 0–10 V voltage output, ensuring smooth and accurate transmission of analog data. Its slim 6.2 mm housing allows space-saving installation on DIN rails, making it highly practical for control cabinets where compactness is crucial. By eliminating ground loop issues and reducing signal noise, this unit offers engineers and system integrators a reliable tool for maintaining consistent performance in process automation.

The MINI MCR-SL-I-U-4 isolating amplifier delivers three-way electrical separation between input, output, and power supply, significantly improving operational safety and reducing susceptibility to interference. Its low energy demand and option for TBUS power distribution simplify setup while lowering overall system costs. With a fast response time of around 3.5 ms and a transmission accuracy of better than 0.1%, it ensures precise real-time signal handling. This makes it especially valuable in applications where dependable data conversion directly impacts efficiency—such as monitoring, process control, or machinery automation—helping operators reduce downtime and achieve stable, long-term performance.

Why Phoenix Contact MINI MCR-SL-I-U-4?

The Phoenix Contact MINI MCR-SL-I-U-4 is the ideal choice for engineers who demand accuracy, reliability, and efficiency in compact form. With its slim 6.2 mm design, it saves valuable cabinet space while ensuring dependable signal conversion from 4–20 mA to 0–10 V. Its three-way isolation protects sensitive equipment, while the fast response time guarantees precision in dynamic processes. For projects that need both safety and performance in demanding environments, this model stands out as a cost-effective yet professional-grade solution.

What problem does it solve?

The MINI MCR-SL-I-U-4 tackles one of the most common challenges in automation: signal distortion caused by ground loops and electrical interference. By providing robust electrical isolation, it ensures that signals remain accurate and stable throughout the system. This means operators can trust their measurement values, avoid downtime caused by faulty readings, and improve the efficiency of control loops. In industries where reliable data drives productivity and safety, this signal conditioner eliminates uncertainty and creates a dependable bridge between field devices and control systems.

Key Features & Specifications – Phoenix Contact MINI MCR-SL-I-U-4: 2813538

Download MINI MCR-SL-I-U-4 (2813538) Datasheet

Commercial Data – Phoenix Contact MINI MCR-SL-I-U-4: 2813538

The Applications

1. Wastewater Treatment Plant Monitoring

In municipal wastewater facilities, reliable sensor signals are critical for controlling aeration, dosing, and pumping. However, long cable runs and heavy electrical equipment often introduce interference. The MINI MCR-SL-I-U-4 converts a standard 4–20 mA loop into a stable 0–10 V signal while providing complete isolation between input, output, and power supply. This ensures that controllers receive accurate readings despite electrical noise or ground differences. As a result, dosing systems maintain proper chemical balance, reducing operating costs and ensuring compliance with environmental standards. The conditioner helps operators keep processes stable while preventing unplanned shutdowns in demanding treatment operations.

2. Safety in Hazardous Gas Detection

Industrial facilities with explosive risk zones depend on gas detectors that send continuous measurement signals. These sensors usually work with 4–20 mA loops, but interference can lead to false alarms or missed hazards. By isolating and converting signals to a 0–10 V output, the MINI MCR-SL-I-U-4 ensures that monitoring systems receive clean and dependable data. The three-way isolation is particularly valuable because it blocks ground loops and prevents cross-channel disturbances. With accurate signals feeding into the central safety system, operators can react quickly to genuine threats while minimizing downtime caused by erroneous alarms.

3. HVAC Pressure and Airflow Control

Commercial buildings and hospitals rely on HVAC systems to regulate airflow and maintain indoor air quality. Differential pressure sensors typically generate 4–20 mA outputs, yet many building management controllers require 0–10 V inputs. The MINI MCR-SL-I-U-4 bridges this gap with fast conversion and minimal error. Its rapid response time means changes in pressure or filter status are detected almost instantly, keeping air distribution balanced. The compact 6.2 mm housing also saves valuable control cabinet space. By ensuring noise-free, accurate signals, the conditioner helps facility managers improve efficiency, cut energy costs, and maintain comfort for occupants.

4. Remote Water Pumping Stations

Water utilities operate remote pumping and reservoir stations that transmit flow and pressure signals back to centralized SCADA systems. Long transmission distances often run near power lines, making them prone to noise and voltage shifts. The MINI MCR-SL-I-U-4 provides robust three-way isolation, stabilizing the signal and converting it into a format easily read by control equipment. Its wide operating temperature range ensures consistent performance outdoors or in unheated enclosures. This reliability allows utilities to monitor pump performance, detect leaks or faults early, and maintain uninterrupted water supply to communities. It also reduces costly on-site troubleshooting visits.
