$ 140.76
Compact Phoenix Contact MINI MCR-2-SPS-24-15-PT constant voltage source delivers precise 15 V DC output, ideal for powering sensors and automation.

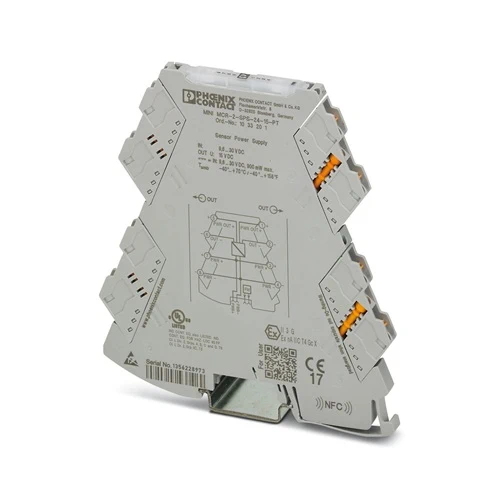

The Phoenix Contact MINI MCR-2-SPS-24-15-PT constant voltage source is a compact module that reliably generates a stable 15 V DC output. Designed for applications where sensors or field devices lack their own supply, it ensures consistent performance in automation and control environments. With its slim 6.2 mm housing, the device helps save valuable space in control cabinets while maintaining safe operation through reinforced insulation. Quick push-in connection technology allows straightforward installation, making it the right choice for industries that need dependable and interference-resistant sensor power.
The MINI MCR-2-SPS-24-15-PT offers wide input flexibility, accepting supply voltages between 9.6 and 30 V DC. Its precise 15 V output, combined with low ripple and minimal transmission error, guarantees reliable measurement signals. Electrical isolation between input and output enhances protection against interference and extends component life. The module’s robust design supports operation in temperatures from -40 °C to +70 °C, ensuring stability in challenging conditions. Users benefit from faster wiring, reduced downtime, and seamless integration into safety-critical or space-limited systems. Certifications for industrial, hazardous, and marine environments add further assurance for global use.
The MINI MCR-2-SPS-24-15-PT stands out because it delivers precision power in a housing only 6.2 mm wide, saving critical panel space without sacrificing performance. It ensures a reliable 15 V supply even in harsh industrial settings, with galvanic isolation protecting devices from electrical noise and interference. Its robust certifications make it globally deployable across automation, process, and marine environments. This combination of compact design, reliability, and universal approvals makes it a trusted solution for powering sensors and control devices where stability is non-negotiable.
Modern sensors and control components often lack their own supply, creating instability when powered by inconsistent sources. The MINI MCR-2-SPS-24-15-PT solves this challenge by providing a highly stable 15 V output with minimal ripple and low transmission error. It eliminates measurement inaccuracies caused by fluctuating voltages, reduces downtime linked to unreliable sensor performance, and ensures consistent operation across wide temperature ranges. By integrating reinforced insulation and safety approvals, it addresses the dual problem of reliability and compliance, offering engineers a dependable way to maintain uninterrupted signal quality.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Constant voltage source, MINI Analog Pro series | Reliable supply for sensors and devices without internal power |
| Output Voltage | 15 V DC (≤0.4% transmission error, <20 mV ripple) | Ensures stable and accurate sensor operation |
| Output Current | Up to 30 mA | Sufficient for powering multiple low-power sensors |
| Input Voltage Range | 9.6…30 V DC | Flexible use with various industrial power supplies |
| Electrical Isolation | Reinforced isolation, 300 Vrms, 3 kV AC test voltage | Protects systems from interference and ensures operator safety |
| Housing Width | 6.2 mm | Saves valuable space in control cabinets |
| Connection Type | Push-in pluggable connection | Faster, tool-free wiring and easy maintenance |
| Operating Temperature | –40 °C … +70 °C | Reliable use in harsh industrial conditions |
| Protection Rating | IP20 | Suitable for safe control cabinet installation |
| Compliance & Approvals | CE, UL, ATEX, IECEx, DNV-GL (marine) | Certified for global industrial, hazardous, and shipboard applications |
| Current Consumption | <38.2 mA at 24 V | Energy-efficient design reduces overall system load |
| Material | PBT housing, RAL 7042 gray | Durable, flame-resistant, and compliant with railway fire protection |
| Status Indicator | Green LED for supply voltage | Quick visual confirmation of operational state |
| Mounting | DIN rail (EN 60715), any orientation | Flexible installation in varied cabinet layouts |
Download Phoenix Contact MINI MCR-2-SPS-24-15-PT 1033201 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626537696 |
| Customs Tariff Number | 85437090 |
| Weight | 85 g (excluding packaging) / 106.4 g (including packaging) |
| Country of Origin | Germany (DE) |
In industrial motor drives, insulated supplies are essential for powering IGBT and MOSFET gate drivers. A stable 15 V source ensures that transistors switch correctly, even when exposed to high common-mode voltages. By providing low ripple and reinforced isolation, the MINI MCR-2-SPS-24-15-PT helps protect circuits from mis-firing and electrical stress. This translates into smoother motor control, extended equipment life, and fewer interruptions in demanding production environments.
Solar inverters and wind turbine controllers often rely on precise sensor readings to manage energy flow safely. These sensors need a clean and isolated supply to avoid distorted measurements caused by fluctuating voltages. With its wide input range and highly accurate 15 V output, the device powers sensitive measurement circuits while maintaining safety through galvanic isolation. This allows renewable energy systems to deliver consistent performance, safeguard operators, and ensure compliance with strict grid standards.
In petrochemical plants and other potentially explosive zones, equipment must maintain safe and reliable operation under strict certification standards. Many sensors in these areas lack their own regulated power supply. The MINI MCR-2-SPS-24-15-PT delivers a dependable 15 V output that reduces the risk of instability or sparks from fluctuating power. Its slim housing and robust approvals make it a trusted choice for hazardous environments where both reliability and safety are critical.
Railway and marine systems face constant vibration, electrical noise, and wide temperature variations. Monitoring devices in these settings require a dependable and isolated voltage supply to deliver accurate data. The constant 15 V output with reinforced insulation ensures uninterrupted sensor operation, shielding circuits from interference caused by heavy electrical equipment. With its rugged design and compliance to transport safety standards, the device provides long-term stability for monitoring systems onboard ships and trains.
| Category | Model | Part Number | Purpose & Benefit |
|---|---|---|---|
| Bus Connectors | ME 6,2 TBUS-2 | 2695439 / 2869728 | Bridges supply voltage across modules, gold-plated contacts for long-term reliability |
| Connector Sets | FASTCON PRO-SET / FASTCON PRO-SET-PT | 2906227 / 2906228 | Provides screw or push-in plug connections, simplifies wiring for MINI Analog Pro modules |
| Marking Accessories | UCT-EM, SK, UC-EMLP, US-EMLP Series | 0801505 – 0830348 | Labels and marker strips for clear identification and cabinet organization |
| Setpoint Adjusters | EMG 30-SP-4K7LIN / EMG 30-SP-10K LIN | 2940252 / 2942124 | Adjustable potentiometers for fine-tuning setpoints in control and monitoring systems |
| Power Terminal Blocks | MINI MCR-2-PTB / MINI MCR-2-PTB-PT | 2902066 / 2902067 | Supplies voltage to DIN rail connectors, available in screw or push-in versions |
| Power Supply Units | QUINT4-SYS-PS/1AC/24DC/2.5/SC | 2904614 | Reliable 24 V DC / 2.5 A supply, integrates seamlessly with TBUS DIN rail connectors |
| Monitoring Modules | MINI MCR-2-FM-RC / MINI MCR-2-FM-RC-PT | 2904504 / 2904508 | Fault monitoring blocks for supply voltage supervision and error reporting |
| Tools | SZS 0,6X3,5 Screwdriver | 1205053 | Insulated screwdriver for terminal blocks, ergonomic and safe to use |
