$ 184.00

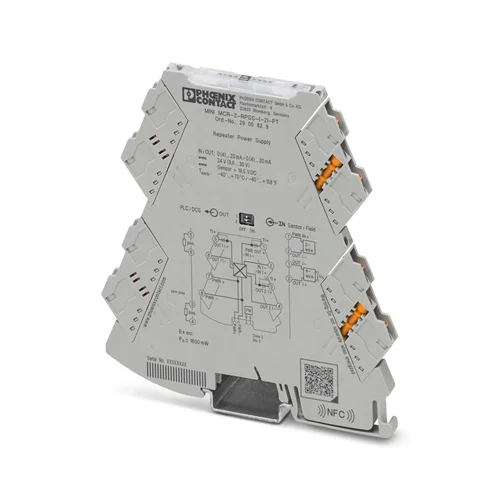

Compact Phoenix Contact MINI MCR-2-RPSS-I-2I-PT repeater power supply with 4-way isolation, HART support, and precise signal duplication for automation.
The Phoenix Contact MINI MCR-2-RPSS-I-2I-PT repeater power supply is a space-saving signal and power duplicator designed for reliable process automation. It delivers 4-way galvanic isolation to safeguard systems against interference while maintaining accurate current signal transmission. Handling both 0–20 mA and 4–20 mA signals, it supports HART-transparent communication for seamless integration into modern control systems. With its slim 6.2 mm housing and push-in connection technology, this unit is ideal for DIN rail installation, enabling engineers to optimize cabinet space, reduce wiring complexity, and improve system uptime in demanding industrial environments.
The Phoenix Contact MINI MCR-2-RPSS-I-2I-PT is engineered for efficiency and safety in critical signal paths. It powers field transmitters while duplicating and isolating the measurement signal to feed two independent loads without loss of accuracy. Its integrated monitoring and NFC capabilities provide fast diagnostics and simple configuration, reducing commissioning time. High precision with minimal transmission error ensures trustworthy measurement values in control systems. Certified for use in hazardous areas and built to withstand harsh conditions, this repeater power supply offers dependable performance for chemical, energy, and manufacturing facilities that demand robust signal integrity and operational reliability.
Because it’s more than just a repeater power supply—it’s a precision-driven solution built for reliability. With its ultra-slim housing, intelligent signal duplication, and 4-way isolation, this device saves space while delivering maximum accuracy. It transforms complex wiring tasks into straightforward setups, ensuring engineers achieve both safety and performance in demanding automation projects.
Industrial processes often struggle with noisy signals, limited transmitter power, and unreliable communication between systems. The Phoenix Contact MINI MCR-2-RPSS-I-2I-PT eliminates these issues by isolating, duplicating, and powering signals with complete accuracy. It ensures seamless data integrity, even in interference-prone environments, so operators can trust every measurement and maintain stable, error-free plant operation.
| Feature | Details | Benefit |
|---|---|---|
| Function | Repeater power supply / signal duplicator | Powers field transmitters while duplicating isolated signals |
| Input Signal | 0…20 mA or 4…20 mA | Supports both standard current signal ranges |
| Outputs | 2 isolated current outputs | Enables dual load connection without signal loss |
| Isolation | 4-way isolation, 3 kV test voltage | Protects systems from interference and cross-talk |
| Accuracy | ≤0.05% transmission error | Ensures precise, reliable measurements |
| Response Time | < 400 µs | Fast signal processing for dynamic applications |
| Power Supply | 9.6–30 V DC, typical 24 V DC | Flexible supply range for various installations |
| Communication | HART-transparent, NFC configuration | Allows modern diagnostics and easy setup |
| Operating Temp. | -40 °C to +70 °C | Reliable operation in extreme conditions |
| Housing Width | 6.2 mm | Saves panel space and supports compact system design |
| Approvals | CE, UL, ATEX, IECEx, DNV | Certified safe for global and hazardous environments |
Download Phoenix Contact MINI MCR-2-RPSS-I-2I-PT 2905629 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356999441 |
| Customs Tariff Number | 85437090 |
| Weight | 120 g (without packaging) / 120.6 g (with packaging) |
| Country of Origin | Germany |
In chemical production, critical transmitters for pressure, level, or flow often need to serve both the main control system and a backup safety unit. This repeater power supply makes it possible by splitting one transmitter’s signal into two clean, isolated outputs. The isolation shields equipment from interference, while the compact housing allows easy integration in crowded panels. By ensuring identical, stable signals across systems, it improves plant reliability and helps engineers maintain uninterrupted monitoring and control.
Oil, gas, and petrochemical facilities frequently require instrumentation in hazardous zones. This device provides the necessary power to field transmitters while isolating and duplicating their signals for safe transfer into non-hazardous areas. Its ability to support HART communication means diagnostic data remains accessible, adding a layer of operational assurance. By combining signal integrity with intrinsic safety, it reduces risk and keeps plant monitoring both compliant and dependable.
In water treatment and pumping stations, sensor readings must often be distributed to both local automation equipment and remote supervisory systems. The MINI MCR-2-RPSS-I-2I-PT makes this possible without overloading the transmitter. Each duplicated output delivers accurate, interference-free data to independent devices, ensuring the same signal quality is maintained across long distances. This allows operators to optimize resource management, monitor system performance remotely, and maintain control even under harsh operating conditions.
Power generation facilities demand continuous oversight of key parameters such as fuel flow, steam pressure, or cooling conditions. With this module, a single transmitter’s signal can be reliably sent to both the primary control room and an independent logging system. The high precision and fast response ensure that both channels remain synchronized. This redundancy reduces the risk of data loss, provides reliable backup records, and supports seamless handover between systems during maintenance or fault situations.
| Category | Model | Part Number | Description | Benefit |
|---|---|---|---|---|
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GY | 2695439 | 5-position DIN rail bus connector | Bridges supply voltage across modules, reducing wiring effort |
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GN | 2869728 | DIN rail bus connector with gold-plated contacts | Provides reliable long-term electrical connections |
| Separating Plate | MCR-DP | 1430594 | Partition plate for DIN rail | Maintains safe isolating distance between Ex i and non-Ex i devices |
| Module Carrier | TC-D37SUB-AIO16-MP-PS-UNI | 2906640 | Universal termination carrier for 16 MINI Analog Pro devices | Simplifies connection to I/O cards with HART multiplexer support |
| Module Carrier | TC-D37SUB-ADIO16-MP-P-UNI | 2906639 | Universal termination carrier with D-SUB connector | Enables quick integration with digital/analog I/O systems |
| Communication Module | MINI MCR-2-V8-MOD-RTU | 2905634 | Modbus/RTU network adapter | Integrates up to 8 signal conditioners into Modbus networks |
| Communication Module | MINI MCR-2-V8-MOD-TCP | 2905635 | Modbus/TCP communication adapter | Connects 8 signal conditioners directly to Ethernet networks |
| Communication Module | MINI MCR-2-V8-PB-DP | 2905636 | PROFIBUS DP communication module | Enables PROFIBUS integration of MINI Analog Pro devices |
| Communication Module | MINI MCR-2-V8-PN | 2905637 | PROFINET communication module | Connects multiple devices into industrial PROFINET networks |
| Connector Set | FASTCON PRO-SET | 2906227 | Plug set with screw connection | Provides secure wiring for MINI Analog Pro modules |
| Connector Set | FASTCON PRO-SET-PT | 2906228 | Plug set with push-in connection | Enables faster tool-free wiring |
| Power Terminal Block | MINI MCR-2-PTB | 2902066 | Screw connection terminal block | Supplies voltage to DIN rail connector |
| Power Terminal Block | MINI MCR-2-PTB-PT | 2902067 | Push-in terminal block | Supplies voltage with simplified tool-free wiring |
| Monitoring Module | MINI MCR-2-FM-RC | 2904504 | Fault monitoring module with screw connection | Evaluates and reports group errors from FM system |
| Monitoring Module | MINI MCR-2-FM-RC-PT | 2904508 | Fault monitoring module with push-in connection | Provides supply monitoring and group error reporting |
| Tool | SZS 0,6X3,5 | 1205053 | Insulated screwdriver | For secure terminal and plug actuation during installation |
