Phoenix Contact MCR-SL-D-U-I Digital Display

Phoenix Contact MCR-SL-D-U-I Digital Display – Compact Signal Monitoring

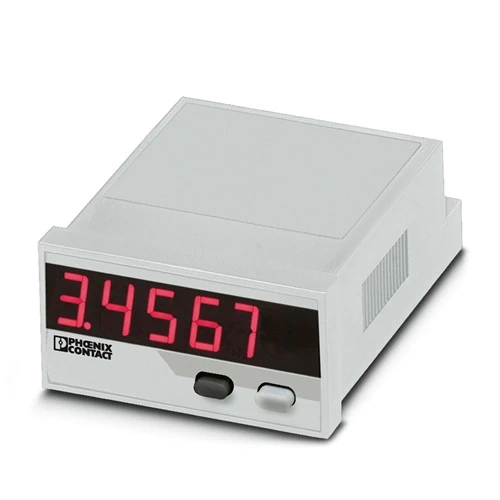

The Phoenix Contact MCR-SL-D-U-I Digital Display is a compact device built to measure and present standard analog signals with high clarity. Its 5-digit LED interface offers accurate readings for voltage and current inputs, including 0…10 V and 0/4…20 mA ranges. With a slim 48 x 24 mm design and IP65 protection at the front, it is ideal for integration in control panels where space and reliability matter. Fast measuring rates, programmable settings, and minimal error margins make it a practical solution for engineers who need dependable, real-time signal monitoring in industrial environments.

The MCR-SL-D-U-I display delivers practical benefits beyond simple measurement. It supports flexible input signals, enabling its use across multiple applications without extra converters. The programmable decimal point and storage of minimum and maximum values simplify diagnostics and improve efficiency. Rugged construction ensures durability in harsh operating conditions, while electrical isolation adds safety in sensitive circuits. By delivering precise information directly where it is needed, the unit helps reduce maintenance effort, supports faster troubleshooting, and increases operational uptime. This makes it a valuable tool in automation systems, energy monitoring, and process control panels.

Why Phoenix Contact MCR-SL-D-U-I?

The MCR-SL-D-U-I stands out because it combines compact design, accuracy, and versatility in one unit. Engineers appreciate its ability to read both voltage and current signals without needing multiple devices. With a clear 5-digit LED display, electrical isolation, and programmable settings, it ensures reliable monitoring under demanding conditions. It’s a trusted choice for control panels where space is tight but performance and safety cannot be compromised.

What Problem Does It Solve?

In many automation systems, operators struggle with unclear signal monitoring, calibration issues, and slow feedback loops. The MCR-SL-D-U-I solves these challenges by providing fast, accurate, and stable signal visualization. Its ability to store min/max values makes diagnostics easier, while rugged housing ensures consistent performance in tough environments. By reducing downtime and improving visibility into processes, it helps industries maintain efficiency and safety with confidence.

Key Features & Specifications – Phoenix Contact MCR-SL-D-U-I: 2864011

Download MCR-SL-D-U-I 2864011 Datasheet

Commercial Data – Phoenix Contact MCR-SL-D-U-I

The Applications

1. Precision Weighing & Load Cells in Industrial Scales

Industrial weighing platforms and load cells often output standard 4-20 mA or 0-10 V signals. A digital display like the MCR-SL-D-U-I provides immediate, accurate visualization of these values directly at the weighing point. Operators can monitor measurements in real time without needing separate converters, which reduces wiring complexity and setup cost. The min/max memory function is especially valuable for detecting overload events, while electrical isolation prevents interference in large installations. Compact panel mounting makes it suitable for weighing stations in logistics, agriculture, and manufacturing, ensuring clear feedback and safer operation.

2. Flow Monitoring in Liquid Processing Systems

In water treatment and chemical dosing processes, flow meters frequently transmit analog signals that must be closely monitored. The MCR-SL-D-U-I converts these signals into clear numerical values on a bright LED display, giving operators immediate insight into flow performance. With fast measuring rates, it can respond quickly to sudden fluctuations, helping prevent system failures. Its programmable scaling allows engineers to adapt readings to preferred units, whether litres per minute or gallons per hour. The durable housing and IP65 protection ensure consistent operation even in damp or corrosive environments, making it ideal for continuous flow supervision.

3. Control Cabinet Voltage and Current Monitoring

Electrical control panels require fast access to signal information for maintenance and troubleshooting. The MCR-SL-D-U-I is compact enough to fit into crowded panels while still offering high readability through its five-digit LED display. Its ability to handle both voltage and current signals means fewer devices are needed to monitor multiple sources. Technicians benefit from direct front-panel programming for flexible configuration, while electrical isolation reduces risks from interference or incorrect wiring. This speeds up diagnostics, minimizes downtime, and increases safety in industrial automation cabinets and machinery enclosures.

4. Ingredient Batching in Food and Pharmaceutical Production

Accurate ingredient dosing is critical in regulated industries such as food and pharmaceuticals. The MCR-SL-D-U-I provides precise display of weight, flow, or level sensor outputs, allowing staff to confirm real-time dosing values. The memory function supports quality assurance by recording min/max deviations, while the bright LED ensures readability even in cleanrooms or low-light areas. Its robust housing with IP65-rated protection resists moisture and sanitation cleaning cycles. By combining reliability with ease of use, the unit helps reduce material waste, maintain compliance, and guarantee consistent product quality in sensitive production environments.
