Discover the Phoenix Contact MACX-TR-1T-MUL timer relay with 13 functions, wide 24–240V range, and precision control for industrial automation systems.

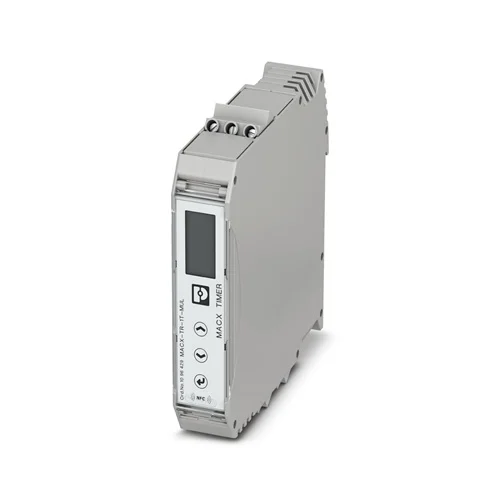

The Phoenix Contact MACX-TR-1T-MUL multifunction timer relay provides precise control for timing operations in a wide range of automation systems. It features 13 selectable time functions and supports a broad input voltage range of 24 to 240 V AC/DC, ensuring compatibility with many industrial environments. With a time setting span from 10 milliseconds up to 999 hours 59 minutes, it adapts easily to short and long-duration control tasks. Compact at only 22.5 mm wide, it includes two changeover outputs, password protection, and accepts PNP or NPN input signals, offering dependable and flexible time-based control for machine and process operations.
The MACX-TR-1T-MUL delivers a blend of precision timing, operational stability, and easy integration for control engineers. Its robust insulation, high dielectric strength, and flame-retardant PBT housing guarantee safe operation in harsh conditions. Installation is quick via standard DIN-rail mounting, and configuration is simplified with dual setup options and clear time adjustment. Suitable for machine automation, conveyor sequencing, process start delays, or lighting control, it enhances efficiency by minimizing wiring complexity and setup time. The unit’s wide supply range and excellent repeat accuracy ensure consistent performance and reduce downtime across diverse industrial applications.
Why MACX-TR-1T-MUL?
Because it’s more than just a timer — it’s an intelligent control companion. The Phoenix Contact MACX-TR-1T-MUL adapts to any timing task with 13 programmable modes, extreme voltage flexibility, and millisecond precision. Designed for engineers who demand reliability and freedom, it turns complex automation timing into a simple, seamless operation.
What Problem Does It Solve?
Inconsistent timing, wiring complexity, and limited configuration options often slow industrial systems. The MACX-TR-1T-MUL eliminates these issues with universal voltage support, multiple timing functions, and rapid setup. It brings precision, versatility, and protection together—solving control timing challenges in manufacturing, process automation, and machinery synchronization.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Multifunction Timer Relay | Enables precise control of automation processes with multiple timing modes. |
| Timing Functions | 13 programmable functions (including Ip and Ii) | Offers flexibility for a wide range of industrial timing tasks. |
| Time Range | Adjustable from 10 ms to 999 h 59 min | Supports both short-cycle and long-duration control applications. |
| Input Voltage Range | 24 V AC/DC to 240 V AC/DC (±10%) | Operates reliably in diverse power environments. |
| Contacts / Outputs | 2 floating changeover contacts (PDT), AgNi material | Ensures high switching reliability and long service life. |
| Switching Capacity | Max. 8 A / 250 V AC, 2000 VA resistive load | Handles demanding electrical loads with stable performance. |
| Power Consumption | 2.5 VA (0.8 W) | Energy-efficient design for reduced operational cost. |
| Mounting Type | DIN rail (NS 35, EN 60715) | Simplifies installation in control panels. |
| Dimensions (W x H x D) | 22.5 × 109 × 114 mm | Compact design saves valuable panel space. |
| Insulation Voltage | 300 V AC | Provides safe electrical isolation. |
| Dielectric Strength | 2 kV for 60 seconds | Ensures protection against voltage surges. |
| Ambient Operating Temperature | -25 °C to +60 °C | Suitable for wide industrial temperature ranges. |
| Degree of Protection | IP20 | Protects internal components from dust and accidental contact. |
| Housing Material | Flame-retardant PBT, RAL 7042 gray | Durable and compliant with UL 94 V0 safety standards. |
| Connection Method | Screw terminal, 0.2–2.5 mm² cable | Provides secure and vibration-resistant wiring. |
| Control Input Compatibility | PNP and NPN proximity switch | Allows integration with various sensor types. |
| Accuracy | Setting accuracy ≤0.5%, repeat accuracy ≤0.05% | Delivers stable and repeatable timing performance. |
| Certifications | CE, UL/C-UL Listed, CCC | Meets global standards for safety and quality. |
Download MACX-TR-1T-MUL 1096429 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626931791 |
| Customs Tariff Number | 85364190 |
| Weight (Net / Gross) | 126 g / 182 g |
| Country of Origin | China (CN) |
In automated conveyor setups, motors must start in a defined sequence to avoid high inrush currents. The MACX-TR-1T-MUL precisely manages delay intervals between motor activations, ensuring each section starts smoothly. Its adjustable timing range allows operators to fine-tune startup intervals, preventing mechanical stress and reducing downtime from overload trips. This improves equipment longevity and overall line efficiency in packaging, sorting, and assembly operations.
Water supply and treatment plants often require pumps to run in cycles to maintain pressure or flow balance. The MACX-TR-1T-MUL enables timed pump control by automatically turning pumps on and off based on preset durations. With its wide voltage range and millisecond-level precision, it maintains stable operation under variable electrical conditions, minimizing energy use and mechanical wear in pumping stations or filtration systems.
After heavy-duty equipment shuts down, residual heat can damage components if cooling fans stop immediately. The MACX-TR-1T-MUL provides an off-delay function that keeps fans running for a specific time after power-off, allowing safe temperature reduction. Its excellent repeat accuracy ensures consistent cooling durations, protecting electronic modules, control cabinets, and power drives from overheating during continuous operation.
In industrial zones, stairwells, or warehouses, lighting systems can be automated to stay on for a limited time after activation. The MACX-TR-1T-MUL timer relay’s one-shot or interval modes allow lighting to operate only when needed, turning off automatically after a set duration. This smart control reduces unnecessary energy consumption while maintaining proper illumination for safety and worker convenience in intermittently used areas.
| Category | Model / Accessory Name | Part Number | Purpose / Benefit |
|---|---|---|---|
| Accessory | MACX-BLUETOOTH-NFC Adapter | 1142259 | Enables wireless configuration and monitoring of MACX series relays via smartphone or PC. |
| PSR-MXF Safety Relay | 2902163 | Integrates safety monitoring and control with MACX timer relays for secure automation. | |
| UNO POWER Power Supply 24V/2.5A | 2902990 | Provides stable and efficient 24V power for MACX relay modules and control systems. | |
| NS 35 DIN Rail (35 mm) | 1204127 | Ensures easy and secure installation of MACX-TR-1T-MUL within control cabinets. | |
| Related Product | MACX-TR-1T-PT | 1096431 | Simplified version for dedicated timing tasks where multi-function is unnecessary. |
| MACX-TR-1T-UNI | 1096430 | Offers versatile configuration for broad industrial timing requirements. | |
| MACX-TR-2T-MUL | 1096432 | Provides independent timing channels for advanced sequential control. | |
| MACX MCR-SL-SC Series | Various | Converts and isolates process signals for integration with MACX timing systems. |
