$ 580.52
Compact Phoenix Contact MACX MCR-TS-I-OLP transducer ensures accurate temperature signal conversion with HART, SIL 2 safety, and loop-powered design.

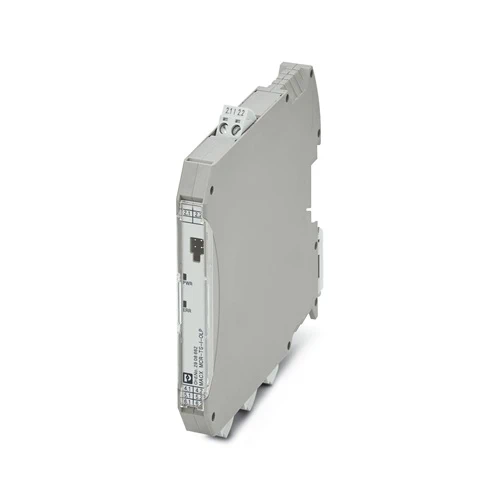

The Phoenix Contact MACX MCR-TS-I-OLP temperature measuring transducer is a loop-powered device built to convert temperature signals into reliable 4–20 mA outputs. Supporting up to two inputs from RTD, thermocouples, resistance, or low-voltage sensors, it provides precise signal conditioning for critical processes. With integrated HART communication, electrical isolation, and SIL 2 safety certification, the transducer delivers dependable performance in demanding industrial settings. Its slim 12.5 mm design and DIN rail mounting save space in crowded control cabinets, while its robust operating range ensures stable measurements for automation, energy, and process industries.
The MACX MCR-TS-I-OLP helps engineers achieve accurate and interference-free temperature monitoring without requiring an external power supply. It adapts to a wide variety of sensor types and can measure extreme ranges from cryogenic levels up to very high process temperatures. Built with functional safety in mind, it integrates smoothly into existing systems and enables diagnostics through HART protocol. Its compact size, global approvals, and durable construction reduce installation effort, increase measurement reliability, and make it suitable for hazardous areas as well as conventional industrial environments. The result is lower downtime, greater process safety, and simplified maintenance.
The Phoenix Contact MACX MCR-TS-I-OLP stands out as a space-saving, safety-certified transducer designed for precision in critical environments. Its ability to directly power itself from the loop, combined with HART communication and compatibility with multiple sensor types, makes it a versatile choice for modern plants. Engineers value it not just for accuracy, but also for reliability under extreme conditions, helping industries achieve higher efficiency and simplified integration.
In industrial processes, inaccurate or unstable temperature signals can lead to costly downtime, safety risks, and reduced product quality. The MACX MCR-TS-I-OLP solves this by converting raw sensor signals into clean, standardized 4–20 mA outputs that are resistant to interference. With safety approval up to SIL 2 and support for a wide temperature range, it ensures reliable monitoring even in harsh environments, enabling operators to maintain process integrity and protect assets with confidence.
| Feature | Details | Benefit |
|---|---|---|
| Signal Conversion | Converts RTD, TC, resistance, and voltage sensor inputs to 4–20 mA | Provides accurate and standardized outputs for PLCs and DCS systems |
| Number of Channels | 2 input channels | Allows measurement of two sensors simultaneously |
| Power Supply | Loop-powered, 12–42 V DC (12–32 V DC SIL mode) | No external power required, reduces wiring complexity |
| Communication | HART Protocol, Version 7 | Remote configuration and diagnostics for modern systems |
| Safety Certification | SIL 2 / SC 3 according to IEC 61508 | Suitable for safety-critical industrial applications |
| Electrical Isolation | Input/Output, 2 kV AC test voltage | Ensures signal integrity and system protection |
| Operating Temperature | –40 °C … +85 °C (–40 °C … +70 °C in SIL mode) | Reliable performance in harsh environments |
| Temperature Measuring Range | –250 °C … +2500 °C (depending on sensor type) | Covers both cryogenic and high-temperature processes |
| Mounting Type | DIN rail mounting (EN 60715) | Fast and secure installation in control panels |
| Housing Width | 12.5 mm | Space-saving design for compact control cabinets |
| Approvals | CE, ATEX, UL, CSA, FM, DNV GL | Global acceptance for wide industrial use |
Download Phoenix Contact MACX MCR-TS-I-OLP 2908662 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626355450 |
| Customs Tariff Number | 85437090 |
| Weight | 171.8 g (net) / 201.7 g (gross with packing) |
| Country of Origin | Germany |
Steel furnaces operate at extreme heat, requiring accurate temperature data to prevent structural damage and maintain product quality. By using the MACX MCR-TS-I-OLP, engineers can capture signals from both thermocouples and RTDs, ensuring precise monitoring of internal walls and molten material. Its SIL-certified safety features provide reliable shutdown in the event of over-temperature conditions, while electrical isolation protects against electromagnetic interference. This allows plants to maintain consistent steel quality, extend equipment life, and improve worker safety in one of the harshest industrial environments.
In power stations, boilers and steam pipelines must be carefully regulated to avoid efficiency losses or damage to turbines. The MACX MCR-TS-I-OLP transducer provides stable conversion of RTD and thermocouple signals into a standardized 4–20 mA output, ensuring long-distance transmission without loss of accuracy. Its fast response time allows operators to adjust parameters in real-time, keeping steam within optimal limits. With wide measuring ranges and robust isolation, the device supports reliable performance in noisy electrical environments typical of large power facilities.
Chemical reactors often require simultaneous monitoring of internal reaction zones and external jackets for heat exchange. The dual-input capability of the MACX MCR-TS-I-OLP makes this possible with a single compact device. One channel can track the reactor’s core temperature, while the second monitors the jacket system. Functional safety compliance ensures that if temperatures deviate, protective systems engage immediately. Built-in HART communication allows operators to diagnose sensor issues early, reducing downtime. This improves process consistency, reduces waste, and safeguards both product quality and plant safety.
Sanitization cycles in food processing demand precise temperature control of hot water and steam as they move through narrow pipelines. The MACX MCR-TS-I-OLP delivers accurate, interference-free measurements, ensuring that sterilization is carried out at the correct temperature for regulatory compliance. Its loop-powered design simplifies installation in compact equipment setups, while safety approvals guarantee reliability in humid, high-temperature cleaning environments. By ensuring correct sterilization every cycle, the device helps protect product integrity, maintain hygiene standards, and reduce the risk of production downtime due to contamination.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Programming Adapter | MCR-PAC-T-USB | 2309000 | Enables easy configuration and parameter setting of MCR modules |
| Communication Adapter | GW HART USB Modem | 1003824 | Provides HART communication between PC and device for diagnostics |
| Connector Accessory | EA-MSTB 2,5/5 Cover | 1831016 | Protects screw shafts, ensuring safety and clean installation |
| Insulating Sleeve | MPS-IH (White, Red, Blue, Yellow, Green, Gray, Black) | 0201663 / 0201676 / 0201689 / 0201692 / 0201702 / 0201728 / 0201731 | Enhances terminal insulation and allows easy visual identification |
| Test Plug | MPS-MT | 0201744 | Enables quick and safe testing without rewiring |
| Labeling Accessory | UC-EMLP / US-EMLP Plastic Labels | 0819291 / 0822602 / 0824547 / 0824548 / 0828094 / 0828098 / 0828789 / 0828871 / 0828872 | Provides durable labeling options for device identification |
| Device Markers | LS-EMLP | 0831678 / 0831705 / 0831732 | Supports efficient equipment marking with adhesive labels |
| Power & Error Module | MACX MCR-PTB | 2865625 | Adds power distribution and fault monitoring with screw connection |
| Power & Error Module | MACX MCR-PTB-SP | 2924184 | Provides power and error signaling with fast Push-in connection |
| Power Supply | QUINT4-SYS-PS/1AC/24DC/2.5/SC | 2904614 | Delivers stable 24 V DC supply via DIN rail for MACX systems |
| Installation Tool | SZS 0,6X3,5 Screwdriver | 1205053 | Safe insulated tool designed for ST terminal block installations |
