$ 365.24
Discover the Phoenix Contact MACX MCR-T-UI-UP-SP transducer for precise, safe, and flexible temperature measurement in demanding industrial applications.

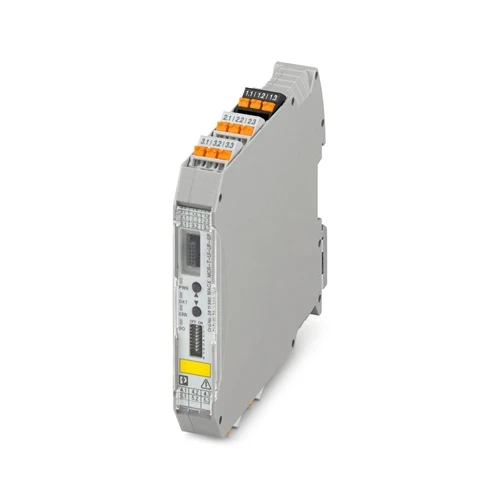

The Phoenix Contact MACX MCR-T-UI-UP-SP temperature measuring transducer is a compact, high-performance device engineered for accurate signal conversion in modern automation systems. Capable of working with resistance thermometers, thermocouples, mV sources, and potentiometers, it provides a broad measuring range that supports diverse applications. With integrated four-way electrical isolation and safety approvals up to SIL 2 and Performance Level d, it ensures operational security in critical environments. Its universal power supply and slim DIN-rail housing simplify installation, while flexible configuration options allow it to adapt to varied measurement tasks. This transducer is ideal for maintaining stable, reliable temperature signals in complex industrial processes.
The MACX MCR-T-UI-UP-SP transducer delivers both precision and flexibility for engineers handling demanding process control tasks. Its programmable analog outputs and relay switching functions enable reliable monitoring and automatic response to temperature changes. Features such as cold-junction compensation and compatibility with a wide range of sensors ensure consistent accuracy, even under fluctuating operating conditions. Certified for safe use in potentially hazardous areas, it provides peace of mind in industries such as chemical processing, power generation, and oil & gas. Quick push-in connections reduce setup time, while diagnostic indicators simplify troubleshooting. By combining safety compliance with adaptability, it enhances system reliability and lowers downtime.
The MACX MCR-T-UI-UP-SP is more than just a temperature transducer—it is a safety-focused solution designed for industries where precision and reliability cannot be compromised. With its wide input compatibility, advanced isolation, and programmable outputs, it adapts seamlessly to diverse applications. Certified for hazardous areas and offering fast installation with push-in technology, it empowers engineers to save time, reduce risk, and achieve consistent results in high-demand environments.
Industrial processes often suffer from unreliable measurements, electrical interference, and safety risks when handling temperature signals. The MACX MCR-T-UI-UP-SP overcomes these challenges by ensuring stable signal transmission through four-way isolation, fault detection via relay switching, and built-in cold-junction compensation. This guarantees accurate monitoring, even under extreme conditions, reducing costly downtime and safeguarding operations in industries such as oil & gas, power, and chemical processing.
| Feature | Details | Benefit |
|---|---|---|
| Input Compatibility | RTD (Pt, Ni, Cu), Thermocouples, mV sources, Potentiometers | Wide flexibility to integrate different sensors |
| Measuring Range | -250 °C to +2500 °C (depending on sensor) | Covers extreme temperature environments with accuracy |
| Output Options | Analog current/voltage, relay changeover contact | Enables flexible signal integration into control systems |
| Electrical Isolation | 4-way isolation | Protects system integrity by eliminating interference |
| Safety Certification | SIL 2, PL d | Meets strict safety standards for critical applications |
| Supply Voltage | 19.2–253 V AC/DC | Wide supply range ensures compatibility across installations |
| Configuration | Software or operator interface (FDT/DTM, IFS-OP-UNIT) | Simple customization without complex rewiring |
| Mounting | DIN rail, 17.5 mm width | Space-saving design for compact control cabinets |
| Connection Technology | Push-in terminals | Fast, tool-free wiring reduces installation time |
| Protection Rating | IP20 | Suitable for safe cabinet installation |
| Operating Temperature | -20 °C to +65 °C | Reliable in varied industrial environments |
Download Phoenix Contact MACX MCR-T-UI-UP-SP 2811860 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356629119 |
| Tariff Number | 85437090 |
| Weight | 150 g (excluding packing) |
| Country of Origin | Germany (DE) |
In refinery operations, the temperature of crude oil pipelines must be monitored closely to prevent issues like wax buildup or loss of flow efficiency. The MACX MCR-T-UI-UP-SP transducer ensures accurate conversion of sensor signals from thermocouples or RTDs into reliable outputs for control systems. Its strong isolation shields signals from electrical disturbances caused by nearby heavy equipment. With an integrated relay, it can activate alarms or safety mechanisms whenever temperatures drift outside critical thresholds, reducing the risk of unplanned shutdowns while maintaining product quality and operational safety.
Paper mills rely heavily on steam for drying, bleaching, and energy generation. If steam lines run too hot or too cold, efficiency drops and safety risks increase. The MACX MCR-T-UI-UP-SP provides accurate signal conditioning for sensors measuring boiler and steam pipe temperatures. Its cold-junction compensation corrects measurement errors, even in fluctuating ambient conditions. With programmable outputs, the system can react quickly by adjusting valves or burners. The device’s rugged build and certifications allow it to operate reliably in humid, chemically aggressive environments, safeguarding equipment while improving energy use.
Engine rooms on ships are challenging environments with high vibration, confined spaces, and diverse power supplies. Accurate temperature supervision of engines, gearboxes, and exhaust systems is vital to avoid costly breakdowns. The compact, DIN-rail mountable MACX MCR-T-UI-UP-SP simplifies installation during vessel maintenance. Its wide supply voltage range makes it adaptable to both DC and AC shipboard networks. With four-way isolation, the transducer prevents electrical noise from corrupting critical measurements. The safety relay provides automatic shutdown triggers when overheating occurs, helping protect crew and equipment during demanding marine operations.
In chemical production, precise temperature control inside reactors determines product quality and process safety. Deviations can lead to inefficient reactions or dangerous conditions. The MACX MCR-T-UI-UP-SP supports multiple sensor types, making it suitable for diverse reactor setups. Its programmable measuring spans provide flexibility to adapt across different chemical processes. Cold-junction compensation maintains accuracy when surrounding temperatures fluctuate. Safety approvals up to SIL 2 and Performance Level d allow integration into critical shutdown systems. By enabling fast response through relay outputs, the transducer helps prevent runaway reactions, ensuring safer, more stable chemical production.
| Category | Model / Name | Part Number | Benefit |
|---|---|---|---|
| Programming Adapter | IFS-USB-PROG-ADAPTER | 2811271 | Allows easy configuration via USB without interrupting operation |
| Programming Adapter (Wireless) | IFS-BT-PROG-ADAPTER | 2905872 | Enables wireless programming and monitoring over Bluetooth |
| Cold Junction Compensation Plug | MACX MCR-CJC | 2924993 | Ensures precise thermocouple measurements by compensating ambient variations |
| Current Signal Plug | MACX MCR-I20 | 2905680 | Provides safe switching of ±20 mA current signals with MACX transducers |
| Separating Plate | MCR-DP | 1430594 | Maintains safe isolation distances when mounting devices side by side |
| Insulating Sleeves | MPS-IH Series (WH/RD/BU/YE/GN/GY/BK) | Various (0201663–0201731) | Offers color-coded insulation for safe wiring and identification |
| Test Plug | MPS-MT | 0201744 | Simplifies testing and maintenance of electrical connections |
| Plastic Labels | UC-EMLP / US-EMLP Series | Various (0819291–0828872) | Provides durable labeling for device identification |
| Device Markers | LS-EMLP Series | Various (0831678–0831732) | Adhesive markers for quick and clear equipment labeling |
| Power Supply | QUINT4-SYS-PS/1AC/24DC/2.5/SC | 2904614 | Reliable DIN-rail power supply with protective coating for harsh environments |
| Tool | SZS 0,6X3,5 Screwdriver | 1205053 | Special insulated screwdriver for safe terminal block actuation |
