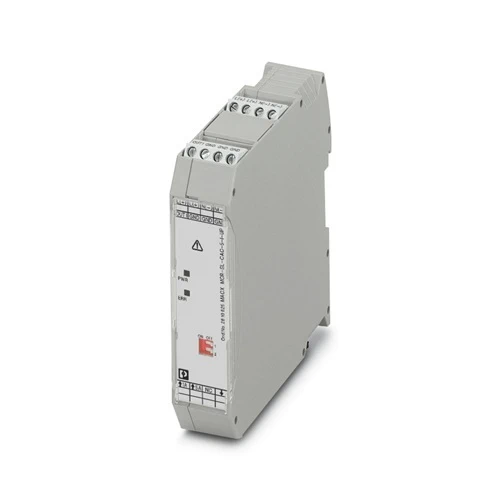

Phoenix Contact MACX MCR-SL-CAC-5-I-UP Current Transducer

Phoenix Contact MACX MCR-SL-CAC-5-I-UP Current Transducer

The Phoenix Contact MACX MCR-SL-CAC-5-I-UP current transducer is a compact and precise device for converting alternating current signals into standardized analog outputs. Designed to work with either 1 A or 5 A sinusoidal currents, it delivers reliable measurements in 0–20 mA or 4–20 mA ranges. With a broad supply voltage capability from 19.2 V to 253 V AC/DC, the unit adapts seamlessly to various industrial settings. Convenient DIP switch adjustments and clear LED indicators simplify configuration and monitoring, while the slim DIN rail design saves panel space. This transducer ensures stable and accurate current detection for energy monitoring, process automation, and safety-critical systems.

The MACX MCR-SL-CAC-5-I-UP transducer is engineered to deliver consistent performance in demanding industrial environments. Its configurable input and output settings allow engineers to tailor it quickly to application requirements, reducing installation time and errors. Built-in galvanic isolation enhances safety by separating measurement, supply, and output circuits, while surge protection safeguards against unexpected spikes. With an error margin below 0.5%, it supports precise current measurement essential for energy efficiency and process reliability. By integrating this transducer into monitoring or control systems, users benefit from improved fault detection, smoother operations, and reduced downtime, ensuring long-term stability and compliance with international standards.

Why Phoenix Contact MACX MCR-SL-CAC-5-I-UP?

The Phoenix Contact MACX MCR-SL-CAC-5-I-UP stands out as a compact yet powerful transducer that transforms raw AC currents into actionable analog signals. With versatile DIP switch configuration, wide voltage adaptability, and LED status display, it empowers engineers to achieve reliable monitoring with minimal setup. Its precision and robustness make it a trusted choice for industrial automation, energy management, and process control systems.

What Problem Does It Solve?

Uncontrolled or inaccurate current measurements can compromise system safety, efficiency, and reliability. The MACX MCR-SL-CAC-5-I-UP addresses this by ensuring safe, isolated, and accurate conversion of AC currents into standardized signals. It eliminates measurement errors, reduces downtime, and prevents costly failures, enabling seamless integration into monitoring and control setups where dependable current data is critical.

Key Features & Specifications – Phoenix Contact MACX MCR-SL-CAC-5-I-UP: 2810625

Download Phoenix Contact MACX MCR-SL-CAC-5-I-UP 2810625 Datasheet

Commercial Information – Phoenix Contact MACX MCR-SL-CAC-5-I-UP: 2810625

The Applications of the Phoenix Contact MACX MCR-SL-CAC-5-I-UP

1. Energy Monitoring in Solar Power Systems

In modern solar plants, accurate current monitoring is essential for balancing loads between inverters and grid connections. The MACX MCR-SL-CAC-5-I-UP converts alternating currents from inverter outputs into precise analog signals that can be read by supervisory systems. Its configurable ranges allow seamless adjustment for different circuit conditions, while galvanic isolation prevents disturbances from affecting sensitive control electronics. With its fast response time, the transducer enables early detection of current fluctuations, helping operators improve energy efficiency, reduce downtime, and optimize grid feed-in reliability across large photovoltaic installations.

2. Motor Protection in Industrial Water Pumps

Large water treatment facilities rely on motor-driven pumps that must run continuously under varying loads. The MACX current transducer helps protect these motors by monitoring current consumption in real time. If a pump motor experiences overload due to clogging or pressure surges, the device delivers a standardized signal to trigger warnings or shut-down commands. Its high accuracy ensures even small deviations are visible before costly failures occur. Surge protection and isolation features safeguard connected control systems, while the slim DIN rail design allows engineers to integrate it neatly into existing panels without major modifications.

3. HVAC System Reliability in Large Buildings

Heating, ventilation, and air conditioning systems in commercial complexes consume significant amounts of power. Monitoring the current drawn by compressors, blowers, and fans allows facility managers to detect abnormal patterns that signal wear or blockages. The MACX transducer provides accurate, isolated analog signals that can be fed into building automation systems for real-time diagnostics. Its wide voltage compatibility makes it suitable for diverse electrical zones, while LED status indicators give maintenance staff instant feedback. By using this device, operators can reduce unexpected equipment breakdowns, improve overall energy usage, and extend the service life of critical HVAC components.

4. Process Safety in Chemical Production Plants

Chemical manufacturing often involves motors driving mixers, agitators, and pumps, all of which must operate reliably under demanding conditions. The MACX current transducer enables operators to track the current draw of each motor with precision, ensuring the process stays within safe operating limits. Its robust isolation protects sensitive control electronics from high-voltage disturbances and transients, while DIP switch configuration allows quick adaptation for different equipment setups. By integrating this transducer into the process control system, plants gain better visibility into energy usage, faster fault detection, and increased safety, ultimately minimizing downtime and maintaining consistent product quality.
