Why FLKM 50-PA-S300?
Choose the FLKM 50-PA-S300 for its effortless integration with Siemens S7-300 systems and precise signal management. It transforms complex wiring tasks into a simple plug-in process, saving valuable setup time while maintaining dependable electrical performance. Designed for reliability, it ensures every connection is stable, organized, and ready for continuous industrial operation.
What Problem Does It Solve?
The FLKM 50-PA-S300 eliminates messy, error-prone manual wiring between PLCs and field devices. It streamlines connectivity by offering a pre-engineered interface that reduces downtime, wiring mistakes, and maintenance complexity. Ideal for automation engineers, it brings order, clarity, and efficiency to system installations and upgrades in industrial control environments.

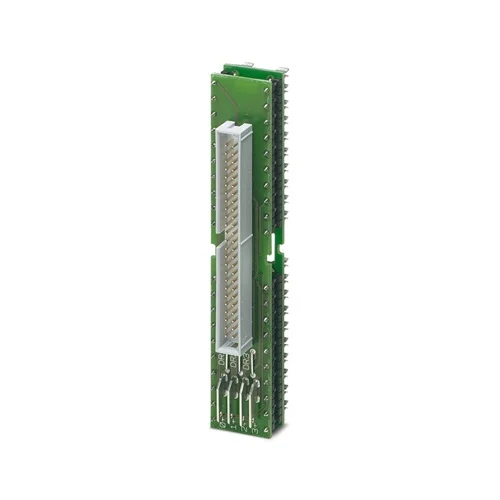

Key Features & Specifications – Phoenix Contact FLKM 50-PA-S300: Article Number 2294445
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Front Adapter | Provides a reliable connection interface between Siemens S7-300 I/O modules and VARIOFACE wiring systems. |
| Supported Controllers | Siemens SIMATIC® S7-300 / ET 200M | Enables seamless integration with widely used PLC systems for flexible automation setups. |
| Number of Channels | 1 x 32 channels | Allows efficient and organized signal distribution, reducing cabling effort. |
| Connection Method (Control Level) | Plug-in connection (40 positions) | Ensures quick installation and replacement without tools. |
| Connection Method (Field Level) | IDC/FLK pin strip (50 positions) | Provides stable, error-free transmission for signal integrity. |
| Supply Connection | Spade connection, 4 positions (2.8 x 0.8 mm) | Facilitates secure voltage supply connections. |
| Operating Voltage | ≤ 30 V AC / ≤ 60 V DC | Suitable for standard low-voltage automation systems. |
| Current Load (per branch) | ≤ 1 A (up to 8 A via spade connection) | Delivers safe current handling for control signal applications. |
| Rated Insulation Voltage | 63 V | Prevents short circuits and ensures system protection. |
| Operating Temperature Range | -20 °C … +50 °C | Performs reliably in various industrial conditions. |
| Mounting Type | Plug-in mounting | Simplifies setup and reduces installation time. |
| Degree of Protection | IP00 (module), IP54 (installation location) | Suitable for enclosed control environments. |
| Compliance | EU RoHS, REACH compliant | Environmentally safe and globally certified for industrial use. |
| Compatible Accessories | FLK50 cable assemblies, VIP-2 interface modules | Expand connectivity with Phoenix Contact accessories for Siemens S7-300. |
Download FLKM 50-PA-S300 2294445 Datasheet
Commercial Information – Phoenix Contact FLKM 50-PA-S300: Article Number 2294445
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918129767 |
| Traffic Number (Customs Tariff) | 85369010 |
| Weight (Without Packaging) | 30.8 g |
| Country of Origin | Germany (DE) |
