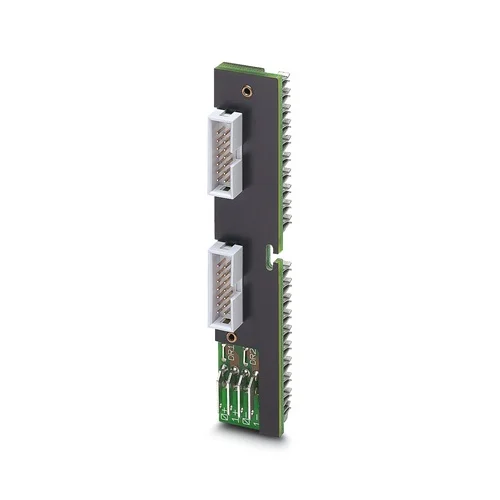

The Applications – Phoenix Contact FLKM 14-PA-S300 Front Adapter
1. Automated Packaging Line Safety Integration
In high-speed packaging plants, multiple sensors and safety switches must connect reliably to the main PLC system. The FLKM 14-PA-S300 provides a quick, plug-in interface that consolidates signals from various safety devices into one organized channel group. Its compact form minimizes clutter in the cabinet while maintaining secure insulation between circuits. This allows maintenance teams to easily trace wiring, replace modules faster, and keep machines operating continuously without long downtime.
2. Water Treatment Skid System Connection
Water treatment skids often move between installations and require rapid reconnection to plant control systems. The FLKM 14-PA-S300 simplifies this process by offering a preconfigured, multi-channel front interface that links the local control cabinet to field sensors and actuators. Its sturdy IDC/FLK connectors withstand frequent handling and vibration during relocation. Engineers benefit from reduced installation time, consistent wiring accuracy, and improved reliability of signal transmission in mobile or modular system setups.
3. Process Plant Modernization Projects
When upgrading existing Siemens S7-300 installations, rewiring can be costly and time-consuming. The FLKM 14-PA-S300 solves this by allowing direct connection to modern I/O modules without disturbing existing circuits. It creates a transitional interface that supports both legacy and new wiring standards. With its functional insulation and multiple connection options, it enables safer retrofits and structured cable management—ideal for industries looking to expand automation without halting production.
4. Conveyor Control in Food and Beverage Automation
Compact conveyor systems in food processing require efficient wiring for multiple sensors, drives, and actuators within limited space. The FLKM 14-PA-S300 provides a reliable link between these field devices and the main PLC, using its 14-position FLK connector to streamline cabling. Its narrow 22.5 mm width conserves space in control panels while ensuring clean signal separation. The adapter’s modular design supports quick replacement during maintenance, keeping production lines running smoothly with minimal interruption.
Related Products & Accessories – Phoenix Contact FLKM 14-PA-S300 (Article 2299770)
| Category | Model Name | Part Number | Description / Compatibility |
|---|---|---|---|
| System Cable | FLK 14/EZ-DR/30/KONFEK | 2295729 | 0.3 m round system cable with 14-position IDC/FLK connectors on both ends — ideal for short-distance module connections. |
| System Cable | FLK 14/EZ-DR/50/KONFEK | 2288901 | 0.5 m preassembled round cable for compact control cabinet wiring between the adapter and interface modules. |
| System Cable | FLK 14/EZ-DR/100/KONFEK | 2288914 | 1 m round cable providing reliable signal transmission between PLC and field terminals. |
| System Cable | FLK 14/EZ-DR/150/KONFEK | 2288927 | 1.5 m round cable for medium-distance wiring layouts within automation panels. |
| System Cable (Shielded) | FLK 14/EZ-DR/100/KONFEK/S | 2296980 | 1 m shielded cable with separate braided ground termination for high-noise environments. |
| System Cable (Halogen-Free) | FLK 14/EZ-DR/HF/100/KONFEK | 2305965 | 1 m halogen-free, preassembled round cable ideal for cleanroom or low-emission applications. |
| Interface Module (Screw Type) | VIP-2/SC/2FLK14(1–20)/S7 | 2315230 | VARIOFACE interface module for Siemens S7-300 with screw connection, compatible with FLKM 14-PA-S300. |
| Interface Module (Push-in Type) | VIP-2/PT/2FLK14(1–20)/S7 | 2903802 | Push-in terminal type interface board for Siemens S7-300, offering fast wiring without tools. |
| Termination Board | FLKM-2FLK14/KDS3-MT/PPA/S7 | 2295062 | VARIOFACE termination board supporting Siemens S7-300, used with FLKM front adapters for signal distribution. |
| System Connection (Input) | PLC-V8/FLK14/IN | 2296553 | Adapter module for 8 × PLC-INTERFACE input terminals with FLK14 connection to S7-300. |
| System Connection (Output) | PLC-V8/FLK14/OUT | 2295554 | Interface adapter for 8 × PLC-INTERFACE output terminals, designed for seamless connection with the FLKM front adapter. |
| System Connection (Large Output) | PLC-V8L/FLK14/OUT | 2299660 | Variant for wider (14 mm) PLC-INTERFACE output cards, maintaining compatibility with the same FLK14 adapter type. |
