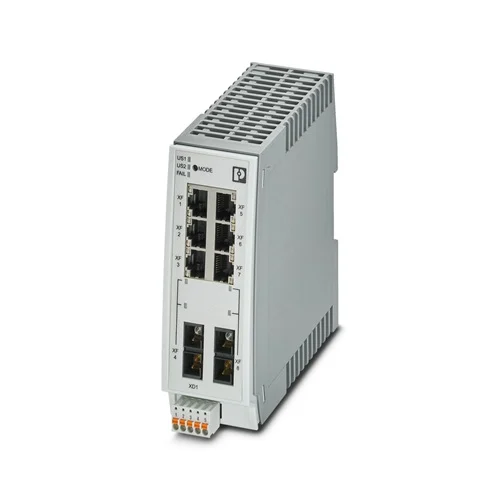

Phoenix Contact FL SWITCH 2206-2FX – Managed Industrial Ethernet Switch
The Phoenix Contact FL SWITCH 2206-2FX is a managed industrial Ethernet switch designed for dependable and secure network communication in challenging industrial environments. It features six RJ45 copper ports and two SC multimode fiber ports for flexible connectivity at 10/100 Mbps. Built to perform in PROFINET and EtherNet/IP™ applications, it offers stable operation in temperatures from –40 °C to +70 °C. Its slim, DIN-rail mountable housing with IP20 protection ensures simple installation even in compact control cabinets, making it ideal for manufacturing, energy, and process control networks that demand continuous data flow.
The FL SWITCH 2206-2FX delivers intelligent network control through functions such as MRP, RSTP, and VLAN to maintain communication stability and minimize downtime. With IEC 62443-compliant cybersecurity, redundant power supply inputs, and extended temperature tolerance, it provides exceptional reliability in industrial operations. The integrated DHCP and SNMP management tools enable quick setup and centralized monitoring, while the fiber-optic uplinks extend communication distances for remote devices. Designed to resist vibration and shock, it ensures consistent performance in demanding applications like automation systems, maritime installations, and energy distribution networks.
Why FL SWITCH 2206-2FX?
Because it blends industrial strength with intelligent control, offering both copper and fiber connectivity in one compact body. The FL SWITCH 2206-2FX ensures seamless communication across long distances, protects uptime through redundancy, and empowers engineers with easy web-based management — all while thriving in harsh, high-temperature environments.
What Problem Does It Solve?
It eliminates network instability and downtime in mission-critical systems. By combining redundant power, VLAN segmentation, and fiber-optic range extension, the FL SWITCH 2206-2FX transforms scattered industrial networks into secure, high-performance communication grids — perfect for factories, utilities, and transportation systems that can’t afford data interruptions.
Key Features & Specifications – Phoenix Contact FL SWITCH 2206-2FX (Article No. 2702330)
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Managed Industrial Ethernet Switch | Provides advanced network control for industrial automation systems. |
| Ports Configuration | 6 × RJ45 (10/100 Mbps), 2 × SC Multimode Fiber (100 Mbps) | Enables mixed copper and fiber connections for flexible network layouts. |
| Network Protocol Support | PROFINET, EtherNet/IP™, Modbus/TCP | Ensures compatibility across multiple automation platforms. |
| Redundancy Functions | MRP, RSTP, FRD, LACP | Maintains continuous operation even during network failures. |
| Security Compliance | IEC 62443-4-1 and IEC 62443-4-2 Certified | Provides cybersecurity assurance for industrial communication. |
| Management Interface | Web-based GUI, SNMPv1/v2/v3, CLI (Telnet/SSH) | Simplifies configuration, monitoring, and diagnostics. |
| Power Supply | Dual redundant 9…57 V DC input | Ensures high availability and protection against power loss. |
| Operating Temperature | –40 °C to +70 °C | Suitable for harsh and outdoor industrial environments. |
| Housing & Mounting | Polycarbonate, DIN-rail mountable | Compact and durable for control cabinets and field installations. |
| Protection Rating | IP20 | Designed for use in protected industrial enclosures. |
| Diagnostics | SysLog, RMON, CRC Surveillance | Allows proactive maintenance and fault detection. |
| VLAN & QoS | Up to 32 VLANs, 8 priority classes | Optimizes traffic flow for real-time communication. |
| Fiber Transmission Distance | Up to 11 km (multi-mode fiber 62.5/125 µm) | Reliable long-distance data transmission for distributed systems. |
| MTTF (Mean Time To Failure) | Up to 343 years (SN 29500 at 25°C) | Exceptional product lifespan and long-term reliability. |
| Certifications | ATEX, IECEx, UL, DNV GL, RINA, EAC Ex | Approved for global industrial and maritime applications. |
Download Phoenix Contact FL SWITCH 2206-2FX (2702330) Datasheet
Commercial Information – Phoenix Contact FL SWITCH 2206-2FX (Article No. 2702330)
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626136479 |
| Traffic (Customs Tariff) Number | 85176200 |
| Weight (Net) | 260 g |
| Weight (Including Packaging) | 430.2 g |
| Country of Origin | Germany (DE) |
The Applications
1. Automated Assembly Line Integration
In high-speed manufacturing plants, such as automotive or electronics production, seamless data exchange between robots, sensors, and PLCs is vital. The FL SWITCH 2206-2FX acts as a reliable communication hub, connecting copper and fiber links within each cell. Its VLAN and redundancy features ensure that even if one connection fails, operations continue without interruption. The compact DIN-rail design allows easy installation inside control panels, helping engineers maintain stable, synchronized automation networks.
2. Renewable Energy Farm Monitoring
In large-scale solar and wind farms, monitoring and control devices are often spread over long distances. The fiber uplink capability of this switch allows data from remote inverters and monitoring nodes to reach the central control room quickly and securely. Its redundant power inputs ensure uninterrupted communication during voltage fluctuations, while VLAN configuration keeps control and diagnostic traffic separated for efficient management and improved system reliability.
3. Process Plant Safety & Control Zones
Industrial plants such as refineries and chemical processing facilities depend on reliable communication between safety systems and operational controls. The FL SWITCH 2206-2FX enables precise data handling by segmenting critical zones through VLANs and supporting redundant ring topologies. With a rugged enclosure and wide temperature tolerance, it ensures dependable performance in areas exposed to heat, vibration, and electrical interference, helping maintain safety and process stability.
4. Railway & Transportation Signaling Networks
In transportation systems, especially rail and metro networks, dependable data transmission is crucial for signaling, surveillance, and monitoring. This switch provides high-speed Ethernet connections for control cabinets and field devices, using fiber to bridge long station-to-station distances. The vibration-resistant build and extended operating temperature range make it ideal for harsh outdoor and onboard environments, ensuring that signaling and communication systems stay operational even under continuous mechanical stress.
