Compact 5-port Gigabit Ethernet switch for industrial automation. Ensures reliable, energy-efficient, and real-time data communication.
$ 129.26
Compact 5-port Gigabit Ethernet switch for industrial automation. Ensures reliable, energy-efficient, and real-time data communication.

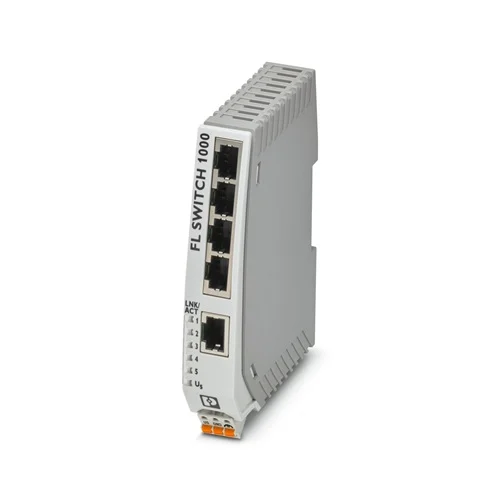

The Phoenix Contact FL SWITCH 1105N is a slim 5-port unmanaged Ethernet switch engineered to deliver reliable gigabit communication for industrial automation systems. Each RJ45 port supports transfer speeds up to 10/100/1000 Mbps, ensuring smooth and uninterrupted data flow between connected devices. Designed with auto-negotiation and autocrossing detection, the switch automatically adjusts to different cable types and data rates, minimizing setup effort. Its compact 22.5 mm housing makes it perfect for control cabinets or machinery installations where space is limited, offering a durable and efficient solution for expanding or segmenting industrial networks.
Created for demanding industrial environments, the FL SWITCH 1105N combines simplicity and stability to enhance plant-floor communication. The unit provides high-priority message handling (QoS) for time-critical automation data and supports PROFINET Conformance Class A, ensuring consistent real-time performance. With jumbo-frame capability up to 9216 bytes, it efficiently transfers large data packets—ideal for high-resolution vision systems or synchronized motion control. Its energy-saving Ethernet function reduces power draw during low activity, while the polycarbonate housing and IP30 rating safeguard the device against mechanical stress. Easy DIN-rail mounting and wide 9–32 V DC power input make it a practical choice for long-term, maintenance-free operation.
Why Phoenix Contact FL SWITCH 1105N?
Because it brings gigabit reliability to compact industrial spaces—the Phoenix Contact FL SWITCH 1105N combines high-speed performance with effortless installation. Its auto-sensing ports, energy-efficient operation, and rugged housing make it the perfect choice for engineers who need dependable connectivity without overcomplicating system design.
What Problem Does It Solve?
It eliminates network bottlenecks and communication instability in automation systems. By intelligently prioritizing data and supporting real-time protocols, the FL SWITCH 1105N ensures seamless communication between PLCs, HMIs, and sensors, even in high-traffic industrial environments—keeping production lines running efficiently and downtime to a minimum.
| Feature | Details | Benefit |
|---|---|---|
| Ethernet Ports | 5 × RJ45 ports supporting 10/100/1000 Mbps | High-speed data transmission for seamless device communication |
| Switch Type | Unmanaged Industrial Ethernet Switch | Simple, plug-and-play installation with no configuration required |
| Compact Design | 22.5 mm width, DIN-rail mountable | Saves cabinet space and allows flexible mounting |
| Auto-Negotiation & Autocrossing | Automatically detects data speed and cable type | Reduces setup time and minimizes connection errors |
| Quality of Service (QoS) | Prioritizes critical automation traffic | Ensures smooth communication for time-sensitive data |
| PROFINET Conformance Class A | Certified for industrial real-time networks | Reliable communication in synchronized control systems |
| Jumbo Frame Support | Up to 9216 bytes per frame | Efficient transfer of large data packets for high-speed applications |
| Energy-Efficient Ethernet | Compliant with IEEE 802.3az standard | Lowers energy consumption during idle periods |
| Diagnostic Indicators | LED status for power, link, and activity | Easy visual monitoring and quick troubleshooting |
| Housing Material | Reinforced polycarbonate, IP30-rated | Provides durability in harsh industrial environments |
| Power Supply Range | 9–32 V DC / 18–30 V AC | Flexible power options suitable for diverse systems |
| Operating Temperature | -10 °C to +60 °C | Reliable performance under wide environmental conditions |
| MTTF (Reliability) | Up to 1058 years (SN 29500 standard) | Long service life for maintenance-free operation |
| Mounting Type | Standard 35 mm DIN rail | Quick and secure installation in control panels |
| Compliance | UL, CE, FCC, and RoHS compliant | Meets global safety and environmental standards |
Download Phoenix Contact FL SWITCH 1105N (1085254) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN (EAN Code) | 4055626835402 |
| Customs / Tariff Number | 85176200 |
| Weight (with packaging) | 217 g |
| Weight (net, without packaging) | 137 g |
| Country of Origin | Taiwan (TW) |
1. Smart Factory Equipment Integration
In advanced manufacturing lines, various robots, conveyors, and controllers must communicate seamlessly for synchronized operation. The Phoenix Contact FL SWITCH 1105N enables fast and stable data exchange between PLCs, HMIs, and sensors using its five Gigabit ports. The auto-negotiation feature adapts to different devices instantly, while QoS ensures that control signals take priority over less critical traffic. Its narrow body fits easily into control cabinets, helping engineers expand connectivity within confined spaces without compromising performance.
2. Vision Inspection and Quality Control Systems
High-speed camera systems used for defect detection and inspection demand smooth, high-bandwidth communication. The FL SWITCH 1105N handles large image data efficiently through jumbo frame support, allowing real-time image transfer to analysis units. Its PROFINET compatibility ensures time-sensitive synchronization across controllers and image processors. With durable construction and reliable 24-volt power input, the switch maintains consistent performance in areas exposed to vibration or temperature fluctuations, reducing the risk of downtime in automated inspection setups.
3. Building Automation and Control Rooms
In smart buildings or energy management systems, numerous controllers and monitoring devices must stay connected around the clock. The FL SWITCH 1105N acts as a central node linking HVAC units, lighting controllers, and monitoring panels. Its autocrossing feature allows flexible cabling, and energy-efficient Ethernet minimizes power use during low network activity. The switch’s strong insulation and IP30-rated housing ensure stable operation even in dusty electrical rooms, supporting continuous building management network uptime.
4. Water and Wastewater Monitoring Systems
Distributed control networks in treatment facilities rely on dependable Ethernet switches to transmit sensor and valve data across large distances. The FL SWITCH 1105N delivers reliable performance under variable temperatures and humidity levels. Its rugged polycarbonate enclosure and wide voltage range support installations in remote control cabinets. Engineers benefit from its plug-and-play design, which eliminates configuration steps while providing consistent communication between local field devices and centralized SCADA control units.
| Category | Product Name | Article Number | Description / Function |
|---|---|---|---|
| Mounting Accessory | FL DIN-RAIL ADAPTER 22.5 | 1085485 | Adapter for mounting 22.5 mm-wide devices on a 35 mm DIN rail, ensuring a secure and aligned installation. |
| FL PANEL ADAPTER 22.5 | 1085488 | Adapter plate for flush mounting of 22.5 mm devices onto flat panels or enclosures. | |
| Power Connector | FKCT 2,5/3-ST KMGY | 1998263 | Push-in spring PCB connector (3-position) for 2.5 mm² conductors, providing fast tool-free power wiring. |
| MVSTBW 2,5/3-ST-5,08 GY | 1783685 | Screw-type PCB connector (3-position, 5.08 mm pitch) compatible with COMBICON plug system for reliable power connection. | |
| Network Cable | FL CAT5 PATCH 0,5 | 2832263 | Factory-terminated 0.5 m CAT5 Ethernet patch cable for short-distance network links. |
| FL CAT5 PATCH 1,0 | 2832276 | 1 m CAT5 Ethernet patch cable for device interconnections in control cabinets. | |
| FL CAT5 PATCH 2,0 | 2832289 | 2 m CAT5 Ethernet patch cable for flexible routing between switches and controllers. | |
| Network Cable (High Speed) | NBC-R4AC/10G-R4AC/10G-94F/2,0 | 1408360 | CAT6A 10 Gbps Ethernet cable, shielded and PUR-sheathed, ideal for motion or robotics environments. |
| NBC-R4AC/10G-R4AC/10G-94F/3,0 | 1408365 | 3 m version of the high-speed CAT6A cable for longer interconnections in field networks. | |
| Surge Protection | DT-LAN-CAT.6+ | 2881007 | Gigabit surge protection device for Ethernet and PoE lines; safeguards the switch from voltage spikes. |
| Dust Protection | FL RJ45 PROTECT CAP | 2832991 | Dust caps for RJ45 ports to protect unused connections from dirt and moisture. |
| End Clamp | E/NS 35 N | 0800886 | End bracket for securing DIN-rail-mounted components, preventing movement or vibration. |
