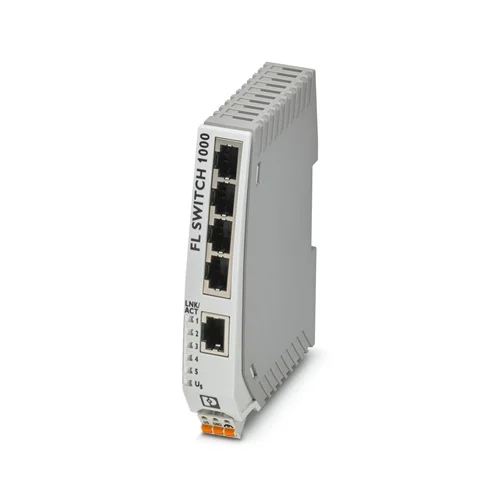

Why FL SWITCH 1005N?
The FL SWITCH 1005N stands out for its compact design, energy-efficient performance, and hassle-free setup. It automatically adapts to network speeds, prioritizes critical data, and ensures seamless PROFINET communication. Built for reliability, it brings industrial-grade stability and plug-and-play simplicity to even the most demanding automation environments.
What Problem Does It Solve?
Industrial networks often face data delays, instability, and complex cabling. The FL SWITCH 1005N eliminates these issues by offering auto-negotiation, QoS prioritization, and durable connectivity in a single unit. It ensures uninterrupted communication between devices, reduces setup time, and keeps automation systems running smoothly with minimal maintenance.
Key Features & Specifications – Phoenix Contact FL SWITCH 1005N: [Article Number 1085039]
| Feature | Details | Benefit |
|---|---|---|
| Network Ports | 5 × RJ45 ports supporting 10/100 Mbps | Connect multiple Ethernet devices easily with stable performance |
| Communication Standard | IEEE 802.3 / 802.3u / 802.3az | Ensures compatibility and energy-efficient communication |
| Switch Type | Unmanaged (Store-and-Forward mode) | Simple plug-and-play setup without software configuration |
| PROFINET Compatibility | Conformance Class A with PTCP filter | Reliable communication in automation networks |
| Quality of Service (QoS) | IEEE 802.1p prioritization | Optimized traffic handling for real-time data |
| Energy Efficiency | IEEE 802.3az standard | Reduces power consumption and operational costs |
| LED Indicators | Power, Link, and Activity per port | Quick visual status diagnostics for easier maintenance |
| Housing Material | Fiber-reinforced polycarbonate | Durable and resistant to vibration and shock |
| Mounting Type | DIN rail mounting | Easy and secure installation in control cabinets |
| Protection Rating | IP30 | Protection against dust and accidental contact |
| Operating Voltage | 9–32 V DC / 18–30 V AC | Flexible power input for various applications |
| Power Consumption | 0.99 W (typical) | Low power requirement for energy-conscious systems |
| Ambient Temperature | –10 °C to +60 °C | Stable operation in demanding industrial environments |
| Dimensions (W × H × D) | 22.5 × 117 × 84 mm | Compact form factor for space-limited panels |
| MTTF (Reliability) | Up to 1627 years (SN 29500 standard) | Exceptional long-term reliability and uptime |
| Compliance | UL, FCC, CE, RoHS, REACH | Meets global safety and environmental standards |
Download Phoenix Contact FL SWITCH 1005N [1085039] Datasheet
Commercial Information – Phoenix Contact FL SWITCH 1005N [Article Number 1085039]
| Commercial Data | Details |
|---|---|
| GTIN Number | 4055626834320 |
| Traffic Number | 85176200 |
| Weight (Without Packaging) | 131 g |
| Weight (With Packaging) | 210.13 g |
| Country of Origin | Taiwan (TW) |
The Applications
1. Solar Power Plant Monitoring Networks
In large-scale solar farms, hundreds of inverters and sensors must transmit performance data continuously. The FL SWITCH 1005N enables a stable and efficient network backbone, linking these field devices to central control units. Its auto-negotiation and QoS prioritization ensure that essential energy metrics are transmitted without delay. The rugged polycarbonate housing protects the device against dust and temperature extremes, making it a dependable choice for remote, sun-exposed installations where uninterrupted monitoring is critical for energy optimization and fault prevention.
2. Automotive Assembly Line Integration
Modern automotive factories rely on synchronized communication between robots, PLCs, and vision systems. The FL SWITCH 1005N simplifies this environment by aggregating multiple Ethernet connections into one reliable hub. With real-time data handling and PROFINET compatibility, it ensures that production signals and safety feedback travel without latency. Its compact DIN-rail design fits inside tight control panels, and its shock-resistant housing maintains stability even amid vibration and electrical noise typical on assembly floors.
3. Intelligent Building and HVAC Systems
Smart buildings demand seamless communication between sensors, controllers, and climate management systems. The FL SWITCH 1005N provides a fast, energy-efficient network backbone for these devices. Its plug-and-play setup and auto-crossover ports reduce installation time, while LED status indicators allow quick troubleshooting. Compact and power-efficient, it fits discreetly within electrical cabinets or junction boxes, ensuring consistent connectivity for lighting, air conditioning, and access control systems that operate 24/7.
4. Mining and Tunnel Safety Networks
In underground environments, communication reliability directly affects safety. The FL SWITCH 1005N connects distributed monitoring sensors such as gas detectors, ventilation controllers, and environmental alarms to a central system. Its wide temperature tolerance and high vibration resistance make it ideal for harsh, enclosed settings. The auto-negotiation feature enables easy setup without specialized tools, while the QoS function guarantees that critical safety data is prioritized, ensuring real-time alerts and secure operations deep below the surface.
Related Products & Accessories – Compatible with Phoenix Contact FL SWITCH 1005N [Article Number 1085039]
| Category | Product Name | Part Number | Description / Compatibility |
|---|---|---|---|
| DIN Rail Mounting Accessory | FL DIN-RAIL ADAPTER 22.5 | 1085485 | Enables secure mounting of 22.5 mm wide devices (like FL SWITCH 1005N) on a standard 35 mm DIN rail. |
| Panel Mount Adapter | FL PANEL ADAPTER 22.5 | 1085488 | Allows the FL SWITCH 1005N to be panel-mounted flush in control cabinets or enclosure panels. |
| Surge Protection Device | DT-LAN-CAT.6+ | 2881007 | Protects Ethernet connections against lightning and transient overvoltage, suitable for industrial data lines. |
| Patch Cable (CAT5) | FL CAT5 PATCH 0.5 | 2832263 | Assembled 0.5 m Ethernet patch cable for connecting network devices. |
| Patch Cable (CAT5) | FL CAT5 PATCH 1.0 | 2832276 | 1.0 m Ethernet patch cable, ideal for cabinet interconnections. |
| Patch Cable (CAT5) | FL CAT5 PATCH 2.0 | 2832289 | 2.0 m assembled cable for extended Ethernet connections. |
| Industrial Ethernet Cable (CAT6A) | NBC-R4AC/10G-R4AC/10G-94F/2,0 | 1408360 | High-speed 10 Gbps CAT6A cable for Ethernet networking in automation systems. |
| Industrial Ethernet Cable (CAT6A) | NBC-R4AC/10G-R4AC/10G-94F/3,0 | 1408365 | 3.0 m shielded Ethernet cable designed for harsh environments. |
| PCB Connector (Screw Type) | MVSTBW 2,5/3-ST-5,08 GY | 1783685 | PCB connector compatible with the switch’s power interface; 3-position screw connection, 2.5 mm² cross-section. |
| PCB Connector (Push-in Type) | FKCT 2,5/3-ST KMGY | 1998263 | Push-in spring connector option for quick tool-free power wiring to the switch. |
| End Clamp for DIN Rail | E/NS 35 N | 0800886 | Provides secure end-stop fixation for devices mounted on DIN rails, preventing lateral movement. |
| RJ45 Dust Protection Cap | FL RJ45 PROTECT CAP | 2832991 | Protects unused RJ45 ports from dust and contamination in industrial environments. |
