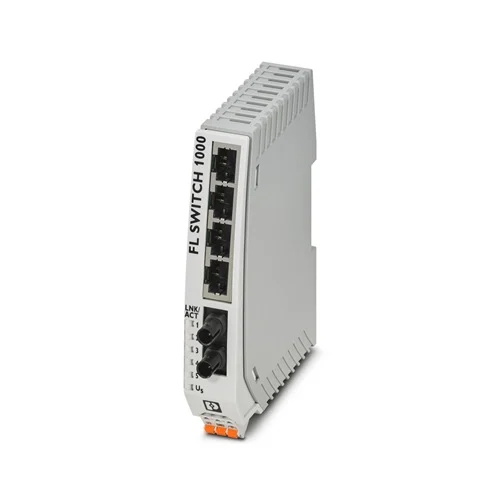

The Applications of Phoenix Contact FL SWITCH 1004N-FX ST
1. Factory Floor Network Expansion
In large manufacturing facilities, communication between production cells often requires bridging long distances. The FL SWITCH 1004N-FX ST enables seamless data flow by connecting copper-based machine networks to fiber lines across the plant. Its fiber port ensures strong, interference-free transmission even in areas with high electrical noise. With QoS prioritization and auto-negotiation, it supports stable real-time data between PLCs, sensors, and control systems—eliminating delays that could impact production efficiency.
2. Power Substation Data Integration
Power substations demand continuous and interference-resistant data transfer between field devices and central monitoring systems. This switch provides both copper and fiber connectivity, allowing reliable communication over long distances while maintaining signal integrity in high-EMI environments. Its PROFINET conformance ensures synchronized and deterministic data exchange. The durable housing and wide temperature tolerance make it suitable for outdoor or temperature-fluctuating installations where stability and safety are critical.
3. Tunnel and Transportation Monitoring Systems
In road and rail tunnels, hundreds of devices—such as lighting, ventilation, and surveillance cameras—need constant communication with a control center. The FL SWITCH 1004N-FX ST connects local RJ45-based devices to backbone fiber networks, enabling reliable long-range data transfer. Its compact DIN-rail mounting fits into confined control cabinets, while traffic prioritization ensures essential alarm and safety signals are transmitted first. The fiber connection prevents data loss caused by electromagnetic interference common in such environments.
4. Wind Farm Control Networks
Wind farms rely on stable, low-latency communication between turbine controllers, sensors, and central SCADA systems. The combination of copper and fiber interfaces in this switch makes it ideal for linking distant turbines to monitoring stations. Fiber connections allow data transmission over several kilometers without degradation, while energy-efficient Ethernet minimizes power consumption. The switch’s rugged design and high reliability ensure continuous operation, supporting real-time diagnostics and predictive maintenance in remote and harsh environmental conditions.
Related Products & Accessories – Compatible with Phoenix Contact FL SWITCH 1004N-FX ST
| Category | Product Name | Part Number | Description | Function / Compatibility |
|---|---|---|---|---|
| DIN Rail Adapter | FL DIN-RAIL ADAPTER 22.5 | 1085485 | Adapter designed for mounting 22.5 mm wide devices on standard 35 mm DIN rails. | Enables secure installation of the FL SWITCH 1004N-FX ST on DIN rails in control cabinets. |
| Panel Adapter | FL PANEL ADAPTER 22.5 | 1085488 | Mounting panel adapter for 22.5 mm wide devices. | Allows the switch to be mounted flush to control panels or enclosures. |
| End Bracket | E/NS 35 N | 0800886 | End clamp, 9.5 mm width, gray color. | Secures the switch and accessories in place on the DIN rail. |
| Surge Protection Device | DT-LAN-CAT.6+ | 2881007 | Surge protection for Ethernet lines up to 10 Gbps, suitable for PoE applications. | Protects the FL SWITCH 1004N-FX ST and connected devices from voltage surges. |
| RJ45 Dust Protection Cap | FL RJ45 PROTECT CAP | 2832991 | Protective cap for RJ45 ports. | Shields unused Ethernet ports from dust and contaminants. |
| Ethernet Patch Cable (CAT5) | FL CAT5 PATCH 0.5 m | 2832263 | Factory-assembled CAT5 Ethernet cable, 0.5 m length. | Provides ready-to-use connection between switch ports and field devices. |
| Ethernet Patch Cable (CAT5) | FL CAT5 PATCH 1.0 m | 2832276 | Factory-assembled CAT5 Ethernet cable, 1.0 m length. | Provides flexible short-distance Ethernet links in control panels. |
| Ethernet Patch Cable (CAT5) | FL CAT5 PATCH 2.0 m | 2832289 | Factory-assembled CAT5 Ethernet cable, 2.0 m length. | Enables reliable data transfer between equipment. |
| Ethernet Patch Cable (CAT6A) | NBC-R4AC/10G-R4AC/10G-94F/2.0 | 1408360 | Shielded CAT6A patch cable, 2.0 m, 10 Gbps, straight connection. | Supports high-speed communication between automation systems. |
| Ethernet Patch Cable (CAT6A) | NBC-R4AC/10G-R4AC/10G-94F/3.0 | 1408365 | Shielded CAT6A patch cable, 3.0 m, 10 Gbps. | Ensures robust data transfer in demanding industrial environments. |
| PROFINET Patch Cable (CAT5) | NBC-R4AC/1.0–93B/R4AC | 1408968 | Industrial PROFINET cable, 1.0 m, green, IP20 rated. | Suitable for connecting PROFINET-enabled devices. |
| PROFINET Patch Cable (CAT5) | NBC-R4AC/2.0–93B/R4AC | 1408969 | Industrial PROFINET cable, 2.0 m, green, IP20 rated. | Provides reliable copper network connection for field installations. |
| PROFINET Patch Cable (CAT5) | NBC-R4AC/5.0–93B/R4AC | 1408970 | Industrial PROFINET cable, 5.0 m, green, IP20 rated. | Ideal for connecting remote I/O modules and switches. |
| Fiber Optic Patch Cable (ST-ST) | FOC-ST:PA-ST:PA-OM2:D01/1 | 1115560 | OM2 duplex multimode jumper, ST-ST connectors, 1 m. | Connects fiber ports between two industrial switches. |
| Fiber Optic Patch Cable (ST-ST) | FOC-ST:PA-ST:PA-OM2:D01/2 | 1115557 | OM2 duplex multimode jumper, ST-ST connectors, 2 m. | Provides longer-distance optical connection with minimal signal loss. |
| Fiber Optic Patch Cable (ST-SC) | FOC-ST:PA-SC:PA-OM2:D01/1 | 1115574 | OM2 duplex multimode jumper, ST-SC connectors, 1 m. | Enables hybrid fiber connectivity between different interface types. |
| Fiber Optic Patch Cable (ST-SC) | FOC-ST:PA-SC:PA-OM2:D01/2 | 1115573 | OM2 duplex multimode jumper, ST-SC connectors, 2 m. | Connects fiber switches to other optical network components. |
| Fiber Optic Patch Cable (LC-ST) | FOC-LC:PA-ST:PA-OM2:D01/1 | 1115588 | OM2 duplex multimode jumper, LC-ST connectors, 1 m. | Links LC-terminated fiber devices to ST-type ports. |
| Fiber Optic Patch Cable (LC-ST) | FOC-LC:PA-ST:PA-OM2:D01/2 | 1115587 | OM2 duplex multimode jumper, LC-ST connectors, 2 m. | Provides flexible and secure fiber connections for extended range. |
