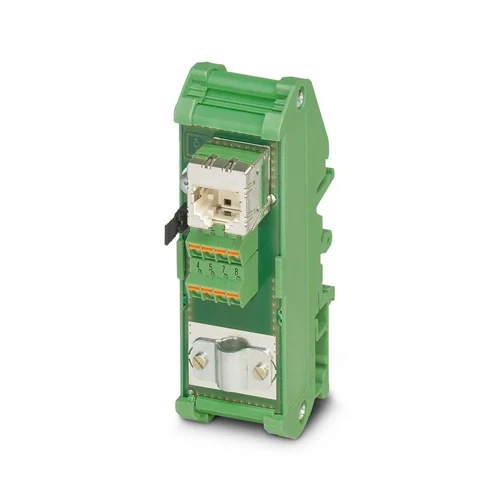

The Applications of Phoenix Contact FL-PP-RJ45-SCC Patch Panel
1. Automated Factory Control Station
In modern production lines, reliable data exchange between sensors, PLCs, and control systems is critical. The FL-PP-RJ45-SCC patch panel streamlines Ethernet cabling inside control cabinets, connecting field devices without the need for crimped connectors. Its spring-cage terminals enable quick wiring changes during maintenance, while shield grounding ensures signal stability near high-power machinery. The result is cleaner layouts, shorter downtime, and stronger network reliability across automated processes.
2. Shipboard Communication Network
Marine environments demand compact, vibration-resistant components. Installed on a DIN rail, the FL-PP-RJ45-SCC serves as a central hub for Ethernet cabling between navigation sensors, monitoring systems, and onboard controllers. Its PoE-capable design reduces cabling clutter by delivering both power and data through a single line. The optional shield connection improves resistance to noise and corrosion, ensuring uninterrupted operation in humid, high-vibration ship compartments.
3. Food & Beverage Processing Line
In automated packaging and inspection systems, the FL-PP-RJ45-SCC supports high-speed Ethernet connections between cameras, sensors, and industrial PCs. The tool-free spring terminals simplify reconfiguration during equipment upgrades, while the CAT5e performance maintains accurate data transmission over long distances. Its compact form factor fits neatly into stainless-steel cabinets, minimizing space usage while keeping data flow reliable under wet or temperature-fluctuating conditions.
4. Smart Building Automation Systems
Commercial and industrial buildings rely on Ethernet-based systems for HVAC, lighting, and access control. The FL-PP-RJ45-SCC enables organized and secure cable management within floor-level network enclosures. The 1:1 terminal mapping simplifies troubleshooting and expansion, and the shield jumper helps minimize cross-talk from nearby electrical circuits. This patch panel provides an efficient way to integrate intelligent devices while keeping building communication networks stable and future-ready.
Related Products & Accessories – Phoenix Contact FL-PP-RJ45-SCC (Article No. 2901642)
| Category | Product Name | Part Number | Purpose / Compatibility |
|---|---|---|---|
| Alternative Patch Panel (Screw Type) | FL-PP-RJ45-SC | 2901643 | Ideal for installations preferring screw-type wiring. |
| Alternative Patch Panel (LSA Type) | FL-PP-RJ45-LSA | 2901645 | Suitable for punch-down wiring in structured cabling. |
| Double RJ45 Patch Panel | FL-PP-RJ45/RJ45 | 2901646 | Enables direct RJ45-to-RJ45 connections between devices. |
| DIN Rail Adapter | FL DIN RA | 2891053 | Allows easy integration into rack-mounted systems. |
| Assembly Tool | FL CRIMPTOOL | 2744869 | Used for quick, on-site RJ45 cable assembly. |
| Actuation Tool / Screwdriver | SZF 0-0,4X2,5 | 1204504 | Enables safe and efficient terminal operation. |
| Network Isolator (100 Mbps) | FL ISOLATOR 100-RJ/RJ | 2313931 | Protects devices from voltage surges in low-speed networks. |
| Network Isolator (1 Gbps) | FL ISOLATOR 1000-RJ/RJ | 2313915 | Ensures safe high-speed data transmission with galvanic separation. |
| Patch Cable CAT5e (0.5 m) | FL CAT5 PATCH 0,5 | 2832263 | Provides short, reliable network links inside control panels. |
| Patch Cable CAT5e (1 m) | FL CAT5 PATCH 1,0 | 2832276 | Commonly used for internal cabinet interconnections. |
| Patch Cable CAT6A (2 m) | NBC-R4AC/10G-R4AC/10G-94F/2,0 | 1408360 | Supports 10 Gbps data for advanced network devices. |
| RJ45 Connector (CAT6A) | VS-08-RJ45-10G/Q | 1419001 | High-performance connector for robust Ethernet terminations. |
| Stripping Tool | VS-CABLE-STRIP-VARIO | 1657407 | Simplifies cable preparation during network setup. |
