$ 115.92
Phoenix Contact EMG 17-OV-24DC/240AC/3 solid-state relay ensures compact, reliable, and maintenance-free AC load switching for industrial automation.

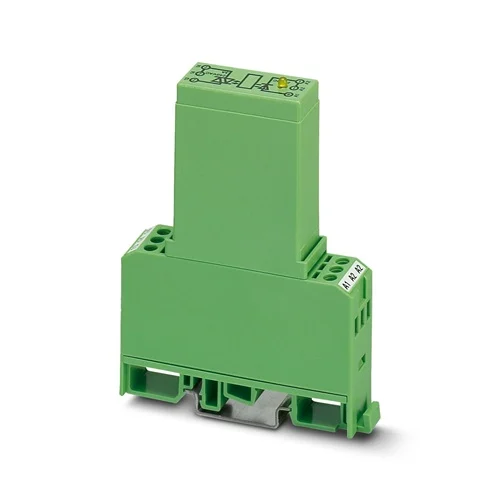

The Phoenix Contact EMG 17-OV-24DC/240AC/3 Solid-State Relay Module is designed for efficient and reliable switching of AC loads in industrial automation. Powered by a 24 V DC input, it controls outputs from 48 to 280 V AC with a continuous load of up to 3 A. The compact 17.5 mm housing allows easy DIN-rail mounting, saving valuable control cabinet space. With integrated LED indication, reverse polarity safeguards, and built-in surge suppression, this module ensures dependable operation. It provides a long service life, making it a strong alternative to mechanical relays in demanding environments.
The EMG 17-OV-24DC/240AC/3 relay module offers durable switching without the mechanical wear common in traditional relays, helping reduce downtime and maintenance costs. Its protective features, including polarity and surge protection, provide stability under challenging electrical conditions. Fast switching response times support smooth integration into PLC-based automation systems. Ideal for applications such as HVAC control, industrial lighting, and machinery operation, the relay delivers quiet, efficient performance. Its robust insulation and compliance with industrial standards make it a trusted choice for engineers who need reliable and maintenance-free load control in compact installations.
The Phoenix Contact EMG 17-OV-24DC/240AC/3 stands out as a compact, maintenance-free relay solution that delivers fast and silent switching. Unlike mechanical relays, it minimizes wear, saves panel space, and offers advanced protection features. Its dependable design ensures engineers can trust it for continuous operation in automation systems where efficiency and reliability are essential.
This solid-state relay solves the recurring issues of mechanical relay failures, excessive maintenance, and unreliable switching in high-demand environments. By combining surge suppression, polarity protection, and robust insulation, it protects sensitive control systems from electrical stress. Engineers gain a stable, long-lasting solution for handling AC loads, reducing downtime while ensuring safe, efficient power control.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Solid-State Relay Module | Reliable switching without mechanical wear |
| Input Voltage | 24 V DC (19.2–28.8 V DC range) | Stable control signal for automation |
| Output Voltage | 48–280 V AC | Wide range for industrial loads |
| Max. Continuous Current | 3 A | Suitable for small to medium AC loads |
| Surge Current | 160 A (10 ms) | Handles inrush currents safely |
| Insulation | 3.5 kV test voltage | Strong electrical isolation for safety |
| Response Time | 10 ms (on/off) | Fast switching for dynamic control |
| Protection Features | Reverse polarity, surge suppression, RC element | Increases reliability and protects system |
| LED Indication | Yellow LED | Quick visual status check |
| Mounting Type | DIN-rail, 17.5 mm width | Saves cabinet space, easy installation |
| Operating Temperature | -20 °C … +60 °C | Reliable in demanding environments |
| Degree of Protection | IP20 | Suitable for control cabinets |
| Compliance | RoHS, REACH, IEC 60664, EN 50178 | Meets international safety standards |
Download EMG 17-OV-24DC/240AC/3 – 2954235 Datasheet
| Commercial Data | Value |
|---|---|
| GTIN (EAN) | 4017918084899 |
| Customs Tariff Number | 85364190 |
| Weight (per piece, net) | 81.36 g |
| Weight (per piece, with packaging) | 85.92 g |
| Country of Origin | Germany (DE) |
Heating and cooling systems demand precise control of fans, pumps, and dampers that often cycle repeatedly during operation. Mechanical relays in these applications wear quickly and produce noise, leading to frequent replacements. The EMG 17-OV-24DC/240AC/3 solid-state relay offers a silent, durable alternative with fast switching times and built-in surge protection. Its compact design fits neatly into HVAC control panels, while the LED status indicator simplifies monitoring. Engineers benefit from longer service life, reduced downtime, and improved energy efficiency when managing climate control systems in commercial and industrial buildings.
Modern packaging lines rely on multiple conveyor belts, feeders, and small AC motors that must switch on and off in quick succession. Traditional relays can degrade under high inrush currents, causing unplanned maintenance. The EMG 17-OV-24DC/240AC/3 withstands these stresses, ensuring smooth motor control with a maximum continuous load of 3 A and transient handling up to 160 A. Its fast 10 ms response enhances system accuracy, while protective circuits secure the electronics from voltage spikes. By using this relay, packaging operations achieve consistent output, minimize machine stoppages, and extend the overall lifespan of the automation equipment.
Factories, warehouses, and logistics hubs often require remote management of lighting systems that run on scheduled or sensor-based activation. Switching large numbers of AC lights with mechanical relays causes arcing and premature wear. The EMG 17-OV-24DC/240AC/3 relay delivers a maintenance-free solution, capable of handling repetitive cycles without contact erosion. Reverse polarity and surge protection safeguard the control system, while its slim housing optimizes space in crowded electrical panels. This ensures dependable performance in environments where reliability, energy savings, and reduced maintenance are essential for facility operations.
Industrial processes in chemical, food, or material production often involve heating elements that must be cycled rapidly to maintain stable temperatures. Mechanical relays struggle with such demands, leading to heat build-up and failure. The EMG 17-OV-24DC/240AC/3 excels in this environment, switching resistive loads reliably and silently. Its 3.5 kV insulation rating enhances safety, and its protective features guard against transient disturbances common in high-power systems. Engineers benefit from precise thermal control, reduced system failures, and long-term durability, making this relay a dependable choice for zone heating applications in demanding industrial processes.
