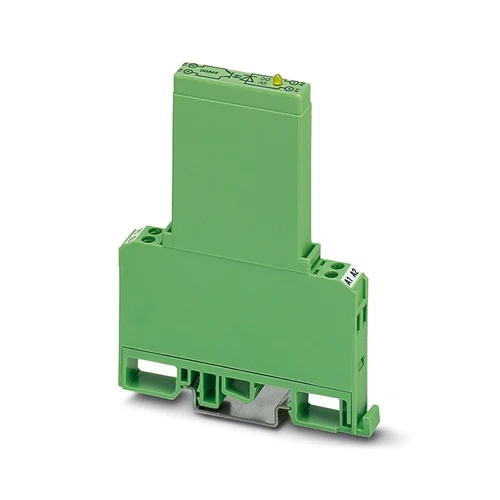

Phoenix Contact EMG 10-OV-5DC/24DC/1 Solid-State Relay

$ 68.31

Discover the Phoenix Contact EMG 10-OV-5DC/24DC/1 solid-state relay. Compact, fast, and reliable switching with LED status and protective circuits.

SKU Phoenix-2944203 Category

Product Description

Phoenix Contact EMG 10-OV-5DC/24DC/1 Solid-State Relay Module – Compact & Reliable Switching

The Phoenix Contact EMG 10-OV-5DC/24DC/1 solid-state relay module is designed for precise, maintenance-free signal switching in industrial environments. With a 5 V DC nominal input and an output range from 5 to 36 V DC at up to 1 A, it provides consistent performance for automation tasks. The integrated LED indicator allows quick status checks, while built-in protective circuits safeguard the relay against polarity errors. Its slim 10 mm housing and DIN rail mounting make it an excellent choice for space-limited control cabinets, where long-lasting operation and dependable signal transmission are essential.

The EMG 10-OV-5DC/24DC/1 relay module offers a practical solution for applications requiring high-speed and reliable switching without mechanical wear. With response times as low as 0.1 ms, it ensures precise control in modern digital systems. The module is built to handle a broad operating temperature range and is protected against environmental stress, making it suitable for demanding conditions. Easy screw terminal connections simplify installation, while the LED display reduces downtime by providing immediate operational feedback. By combining durability, efficiency, and protective features, this module supports smooth and safe performance in factory automation, machinery control, and energy distribution setups.

Why Phoenix Contact EMG 10-OV-5DC/24DC/1?

The EMG 10-OV-5DC/24DC/1 stands out for its combination of compact design, ultra-fast response, and built-in protection. Unlike mechanical relays, it provides wear-free switching, ensuring a longer service life and greater reliability in continuous operation. With LED indication for quick status checks and secure screw connections, it saves valuable time for engineers during installation and troubleshooting. It’s not just a relay—it’s a smart, durable choice for precision-driven automation.

What Problem Does It Solve?

This solid-state relay module eliminates the common challenges of slow response times, mechanical wear, and wiring complexity in automation systems. By delivering high-speed switching at 0.1 ms and protecting against polarity errors, it prevents downtime and costly failures. Its slim 10 mm profile frees up control cabinet space, while the wide operating range ensures stable performance in harsh environments. In short, it solves the need for reliable, efficient, and space-saving signal switching in modern industrial applications.




Key Features & Specifications – Phoenix Contact EMG 10-OV-5DC/24DC/1 : Article Number 2944203

Feature Details Benefit
Product Type Solid-state relay module Maintenance-free switching with no mechanical wear
Nominal Input Voltage 5 V DC (range 4.5–5.5 V DC) Stable operation with standard control signals
Output Voltage Range 5–36 V DC Flexible integration into diverse systems
Continuous Current Up to 1 A Reliable power handling for automation tasks
Surge Current 2 A for 1 s Enhanced protection during overload events
Response Time 0.1 ms (on), 0.2 ms (off) Ultra-fast switching for precise digital control
Status Display Yellow LED Immediate operational feedback
Protective Circuits Reverse polarity and diode protection Prevents damage and reduces downtime
Insulation Test Voltage 3.5 kV AC (input/output) High safety margin in industrial setups
Mounting Type DIN rail, 10 mm width Space-saving installation in control cabinets
Connection Type Screw terminals, up to 4 mm² Easy and secure wiring
Operating Temperature -20 °C … +50 °C Reliable performance in harsh environments
Protection Rating IP20 Safe for cabinet installations
Housing Material Green, UL 94 V0 flame-resistant High safety and durability
Weight per Piece ~38 g Lightweight for flexible integration
Certifications EAC, RoHS compliant Meets global compliance standards

Download Phoenix Contact EMG 10-OV-5DC/24DC/1 – 2944203 Datasheet




Commercial Information – Phoenix Contact EMG 10-OV-5DC/24DC/1 : Article Number 2944203

Commercial Data Details
GTIN Number 4017918081508
Customs Tariff Number 85364190
Weight per Piece 37.78 g (including packing), 39.46 g (net)
Country of Origin Germany (DE)




The Applications of Phoenix Contact EMG 10-OV-5DC/24DC/1 Solid-State Relay

1. Solar Power System Protection

In solar installations, relays are needed to isolate panels during faults or maintenance. The EMG 10-OV-5DC/24DC/1 ensures rapid disconnection within milliseconds, reducing the risk of reverse current damage. Its compact DIN rail design allows it to fit inside inverter or combiner boxes without consuming much space. The protective circuits safeguard sensitive electronics against polarity errors and voltage surges, enhancing overall system reliability in large-scale solar farms.

2. Precision Heating in Industrial Furnaces

Manufacturers using DC heating elements in furnaces and drying ovens require precise switching to control temperature profiles. With ultra-fast switching times and no moving parts, this relay module delivers repeatable performance under heavy cycling conditions. Its ability to handle up to 1 A continuous current supports stable power delivery to heaters. The LED indicator provides immediate feedback, helping maintenance teams quickly confirm operation during process adjustments.

3. Automation in Conveyor and Motor Control

In modern material handling systems, conveyor belts and shuttle mechanisms rely on quick and dependable motor control. The EMG module eliminates contact bounce issues common with electromechanical relays, ensuring smooth and consistent switching. Its built-in polarity protection helps protect motors and control systems from wiring errors. Compact dimensions and easy screw terminal connections make it straightforward to integrate into control cabinets, improving uptime in busy logistics facilities.

4. Power Management in Backup and Telecom Systems

Backup power installations and telecom networks often need rapid load switching and isolation of faulty sections. The EMG relay provides reliable cut-off with minimal leakage when off, ensuring backup systems remain efficient. Its fast response supports uninterrupted service during power routing changes. The robust insulation and wide operating temperature range allow it to function effectively in challenging environments, from outdoor telecom shelters to critical emergency power systems.




Related Products & Accessories – Phoenix Contact EMG 10-OV-5DC/24DC/1

Category Model Part Number Benefits / Use Case
Marking Accessories EMG-SGKS 10 2947585 Narrow equipment marker for EMG modules; ensures clear labeling and organized control cabinets.
Relay Module – Alternative Input EMG 10-OV-12DC/24DC/1 Same design with 12 V DC input, suitable for systems requiring higher control voltage.
Relay Module – Higher Current EMG 30-OV-24DC/60DC/2 Handles higher current loads; ideal when applications exceed 1 A requirement.
DIN Rail Terminal Blocks UK 5 N 3005 series Compatible terminal blocks that simplify and secure wiring connections.
End Brackets for DIN Rail CLIPFIX 35 3022276 Prevents module movement on DIN rails, maintaining stability under vibration.
Power Supply Units QUINT POWER 24 V / 2.5 A Provides stable 24 V DC output, ensuring reliable relay performance.
Surge Protection Devices TERMITRAB Complete (TTCP series) Protects relay circuits from transient voltage spikes in industrial systems.
