$ 93.38
Compact solid-state relay for 24V DC control. Offers fast, reliable, and maintenance-free switching for industrial automation and signal control systems.

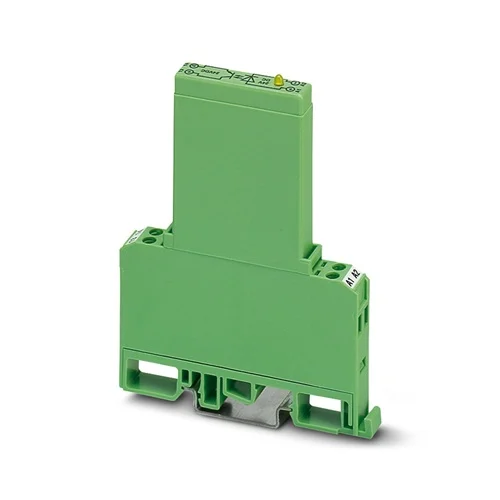

The Phoenix Contact EMG 10-OV-24DC/24DC/1 Solid-State Relay Module is engineered for reliable, noise-free DC switching in compact control systems. It replaces mechanical relays with a fully electronic design that offers longer life, faster operation, and consistent switching performance. With a 24 V DC input and an adjustable 5–36 V DC output, it ensures smooth integration into industrial automation setups. Its 10 mm slim DIN-rail housing saves space in panels, while its sturdy insulation and IP20 protection enable dependable operation in a wide range of environments.
The EMG 10-OV-24DC/24DC/1 provides high-speed signal response, ideal for precision control in production lines, conveyors, and machine interfaces. Its built-in polarity and overload protection safeguard connected devices from faults, while an integrated LED indicator allows instant visual status checks. The solid-state design minimizes energy loss and eliminates mechanical wear, ensuring quiet, maintenance-free performance. Designed for continuous duty, this relay module supports high reliability under constant use, improving process uptime and reducing overall maintenance costs in industrial and automation applications.
Why Phoenix Contact EMG 10-OV-24DC/24DC/1?
The Phoenix Contact EMG 10-OV-24DC/24DC/1 stands out for its precision, speed, and endurance. Unlike mechanical relays, it switches silently and instantly, even under continuous operation. Its compact design fits tight control cabinets while maintaining high insulation safety. Built with advanced protection and LED diagnostics, it ensures dependable automation control for years of maintenance-free performance.
What Problem Does It Solve?
Traditional relays wear out, overheat, and cause signal noise in fast-switching DC applications. The EMG 10-OV-24DC/24DC/1 eliminates these issues through solid-state technology that delivers silent, contactless, and consistent switching. It enhances signal integrity, reduces downtime, and provides safe, efficient performance for modern automation systems where precision and reliability are critical.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Solid-State Relay Module | Provides reliable DC switching without mechanical wear, ensuring long operational life. |
| Input Voltage | 24 V DC (range 21.6–26.4 V DC) | Stable operation even with minor voltage fluctuations. |
| Output Voltage Range | 5–36 V DC | Flexible compatibility with various DC control and signal circuits. |
| Limiting Continuous Current | 1 A (surge up to 2 A, 1s) | Handles dynamic load changes without overheating. |
| Response Time | 0.1 ms (turn-on), 0.2 ms (turn-off) | Enables ultra-fast signal transmission in automation systems. |
| Insulation Voltage (Input/Output) | 3.5 kV AC | Ensures electrical isolation for enhanced equipment safety. |
| Protective Circuits | Reverse polarity and polarity protection diode | Prevents damage from incorrect wiring or transient surges. |
| Status Display | LED (yellow) | Provides clear visual indication for operational status and troubleshooting. |
| Mounting Type | DIN rail mounting (zero spacing) | Easy and compact installation in control panels. |
| Housing Width | 10 mm | Space-saving design ideal for high-density installations. |
| Operating Temperature Range | -20 °C to +50 °C | Suitable for a wide range of industrial environments. |
| Material / Color | Flame-retardant plastic, green (RAL 6021) | Durable and compliant with UL 94 V0 flammability standards. |
| Degree of Protection | IP20 | Protects internal components from dust and accidental contact. |
Download Phoenix Contact EMG 10-OV-24DC/24DC/1 (2944229) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918081522 |
| Tariff / Customs Number | 85364190 |
| Weight per Piece | 39.35 g |
| Country of Origin | Germany (DE) |
1. Automated Conveyor Motor Control Systems
In modern production lines, precision timing between conveyor sections is crucial. The EMG 10-OV-24DC/24DC/1 relay enables quick, silent control of DC motors or solenoids through PLC outputs. Its fast 0.1 ms switching time ensures accurate synchronization even at high conveyor speeds. The built-in reverse polarity protection prevents circuit damage during installation, while its 3.5 kV insulation isolates the control system from load disturbances. This combination increases equipment uptime and minimizes maintenance, making it ideal for continuous industrial automation environments.
2. Solar Energy Battery Switching and Control
In solar storage and hybrid energy systems, battery charge and discharge cycles demand frequent, reliable switching. The EMG 10-OV-24DC/24DC/1 supports safe DC load management from 5 V to 36 V, ensuring smooth transitions between solar panels, batteries, and controllers. Its solid-state architecture avoids contact wear and sparking during repetitive switching. With low voltage drop and minimal heat generation, it maximizes system efficiency and lifespan, providing stable energy management even under high cycling conditions.
3. Laboratory Heating and Precision Temperature Control
Laboratory instruments often require exact temperature regulation to maintain test accuracy. The EMG 10-OV-24DC/24DC/1 enables fine control of small DC heating elements by switching rapidly and quietly without mechanical bounce. The LED status display helps operators verify performance instantly, while its compact 10 mm housing fits into tight instrument panels. By providing stable switching and low electrical noise, it ensures consistent temperature profiles essential for analytical or testing environments.
4. Industrial LED Signage and Display Control
In illuminated signage and display systems, continuous on-off switching is required to achieve dimming or animation effects. The EMG 10-OV-24DC/24DC/1 handles this task seamlessly, offering high-frequency switching without flicker or noise. Its wide voltage compatibility supports different LED drivers, and the contactless operation ensures silent performance even in public or indoor installations. With long operational life and low maintenance needs, it provides reliable lighting control for displays running 24 hours a day.
| Category | Model Name | Part Number | Description | Benefits / Use Case |
|---|---|---|---|---|
| Accessory | EMG-SGKS 10 | 2947585 | Marking material for EMG series modules | Provides clear labeling and easy identification in control panels. |
| Alternative Model | Solid-State Relay Module | 2966650 | Higher current version of DC solid-state relay | Handles larger load currents while maintaining silent and fast switching. |
| Solid-State Relay Module | 2900352 | DC input/output relay module | Enhanced power dissipation and improved stability for automation systems. | |
| Solid-State Relay Module | 2900358 | Compact solid-state relay for DC circuits | Ideal for space-constrained control enclosures with quick response performance. | |
| Interface Relay | Interface Relay Module | 2905293 | Relay interface for PLC signal conversion | Enables safe voltage isolation and reliable signal transfer between PLC and load. |
| PLC Interface Module | PLC-OPT-230UC/24DC/2 | — | PLC interface relay module with 24 V DC input | Ensures secure signal isolation between control units and external devices. |
| Mounting Accessory | Relay Base / Socket | — | Compatible mounting base for relay modules | Allows quick installation, replacement, and modular wiring in control panels. |
