$ 229.31
Ensure safe, reliable fluid level control with Phoenix Contact EMD-SL-LL-230 monitoring relay. Compact, durable, and designed for industrial efficiency.

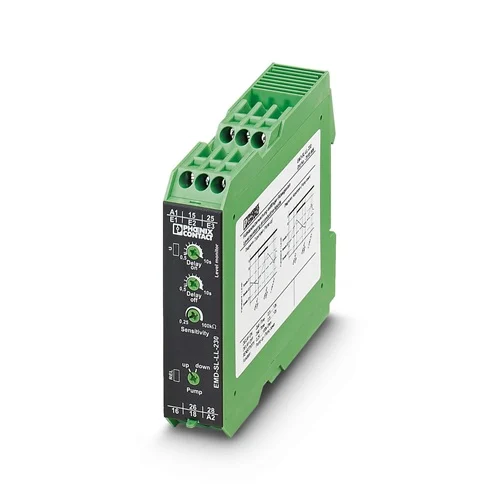

The Phoenix Contact EMD-SL-LL-230 monitoring relay is designed for accurate supervision of conductive liquid levels in industrial systems. Operating on a 230 V AC supply with two independent changeover contacts, it ensures both minimum and maximum level monitoring. Its compact DIN rail housing saves valuable panel space while still delivering reliable performance. Clear LED status indicators make it easy to see operating conditions at a glance, while system faults can be quickly detected and managed. Built to support uninterrupted operations, this monitoring relay helps companies reduce downtime and maintain safety across process, energy, and automation environments.
The EMD-SL-LL-230 monitoring relay offers advanced protection and versatility for liquid level management. Integrated short-circuit and open-circuit detection increases system reliability, while the built-in test/reset button streamlines maintenance checks. Adjustable sensitivity settings allow it to adapt to different types of conductive fluids and application demands. Supporting both pump-up and pump-down control modes, it is suitable for filling and draining operations in tanks or pipelines. The rugged housing, compliance with global safety approvals, and efficient 22.5 mm design make it an excellent fit for modern control cabinets. By ensuring stable monitoring, it extends equipment life, safeguards processes, and boosts overall system efficiency.
Why Phoenix Contact EMD-SL-LL-230?
The Phoenix Contact EMD-SL-LL-230 is the ideal choice for engineers who need precise, reliable liquid level control in demanding environments. Its compact design, advanced fault detection, and flexible sensitivity adjustments make it both versatile and efficient. By combining safety, durability, and ease of integration, it helps industries achieve smooth, uninterrupted operation with confidence.
What problem does it solve?
The EMD-SL-LL-230 addresses the critical challenge of preventing equipment damage and costly downtime caused by uncontrolled fluid levels. Whether avoiding tank overflows, ensuring pumps do not run dry, or safeguarding automation systems from fluid-related failures, it provides constant monitoring and fast fault signaling. This proactive protection keeps systems safe, stable, and highly efficient.
| Feature | Details | Benefit |
|---|---|---|
| Supply Voltage | 230 V AC (195.5…264.5 V AC) | Stable operation across a wide input range ensures reliability. |
| Monitoring Function | Minimum and maximum fluid level monitoring | Prevents overflow or dry-running in tanks and pipelines. |
| Contacts | 2 floating changeover contacts | Flexible switching options for diverse control applications. |
| Response Time | Adjustable 0.5…10 s | Provides precise control while tolerating minor fluctuations. |
| Sensitivity Range | 0.25 kΩ…100 kΩ | Adapts to various conductive liquids with different properties. |
| Probe Compatibility | SK1, SK2, SK3 conductive probes | Simple integration with standard probes for level detection. |
| Protection Features | Short-circuit & open-circuit monitoring | Enhances safety by identifying wiring or probe faults quickly. |
| Test/Reset Button | Integrated manual control | Enables quick function checks without disrupting operations. |
| Mounting Type | DIN rail, NS 35 | Easy installation into existing control cabinets. |
| Dimensions (W x H x D) | 22.5 × 90 × 113 mm | Compact footprint saves space in tight electrical panels. |
| Operating Temperature | -25 °C to +55 °C | Reliable performance in harsh industrial environments. |
| Service Life | 2×10⁷ mechanical cycles, 2×10⁵ electrical cycles | Long operational life reduces replacement costs. |
| Country of Origin | Austria (AT) | Manufactured under strict European quality standards. |
| Approvals | CE, UL (cULus) | Meets international safety and compliance requirements. |
Download EMD-SL-LL-230 2885906 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356144148 |
| Tariff Number | 85364900 |
| Weight | 193 g (net) |
| Country of Origin | Austria (AT) |
In wastewater plants, pumps can be damaged if they run without fluid or if tanks overflow. The EMD-SL-LL-230 relay helps manage both risks by monitoring the lowest and highest liquid points with precision. When water drops too low, the system automatically stops pumps, avoiding dry-run damage. If levels rise too high, the relay signals shutdown to prevent spillage. Its flexible sensitivity settings ensure accurate switching even with fluctuating fluid conductivity, while the short-circuit and open-circuit monitoring protects against faulty wiring. This makes it highly reliable for large treatment basins that must handle diverse liquid conditions while maintaining safety and uptime.
Chemical plants often store fluids with different conductivity, from acids to solvents, which makes reliable level detection challenging. The EMD-SL-LL-230 monitoring relay adapts with adjustable sensitivity, ensuring dependable operation across a wide range of substances. Its dual monitoring capability prevents overfilling of hazardous chemicals while also ensuring that tanks do not run dangerously low. Built-in error detection safeguards against wiring issues, allowing operators to respond before a fault leads to a spill or equipment failure. By providing fast, accurate switching and the ability to work with conductive probes, this relay helps manufacturers maintain consistent product quality and strict safety standards.
Backup generators depend on a steady fuel supply to ensure continuous power in emergencies. The EMD-SL-LL-230 is well-suited for monitoring diesel or oil storage tanks, preventing both shortages and overfills. Its two independent changeover contacts allow one channel to feed control logic for the generator while the other triggers alarms or notifications for operators. Because it tolerates varying cable lengths and different fuel conductivities, it performs reliably even when tanks are located at a distance from control systems. By protecting fuel supply integrity, it minimizes downtime risk, ensures readiness, and extends the life of critical backup systems in remote facilities.
In food and beverage processing, maintaining precise ingredient levels in mixing tanks is essential for consistent recipes. The EMD-SL-LL-230 ensures that ingredients such as syrups, cream, or liquid additives stay within safe ranges. Its monitoring function stops processes if tanks approach empty levels, preventing air entry, and halts filling if the tank is close to overflowing. The integrated test/reset button allows quick verification of sensor performance without halting production. Its compact design fits easily into crowded control cabinets, and its compliance with safety standards supports hygienic plant environments. By delivering stable fluid control, it helps producers guarantee quality and reduce waste.
