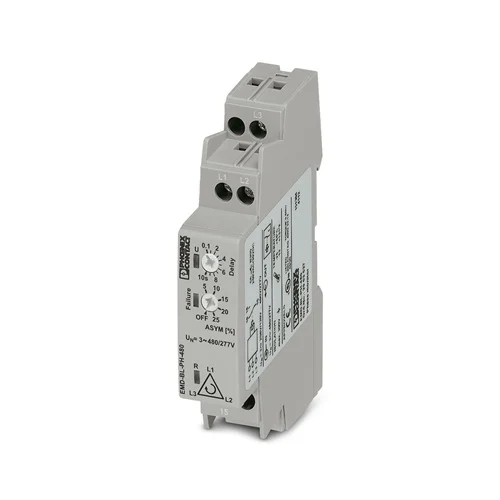

Phoenix Contact EMD-BL-PH-480 Phase Monitoring Relay

Phoenix Contact EMD-BL-PH-480 Phase Monitoring Relay

The Phoenix Contact EMD-BL-PH-480 phase monitoring relay provides dependable protection for three-phase electrical systems operating between 208 and 480 V AC. It continuously checks phase sequence, detects failures, and identifies voltage imbalance to maintain safe and efficient operation. Compact in size and easy to mount on DIN rails, it delivers fast status updates through clear LED indicators. This design minimizes downtime and helps avoid damage to motors or control equipment, making it a valuable safeguard in industrial automation, building services, and energy distribution systems.

Engineered for demanding environments, the EMD-BL-PH-480 relay combines adjustable response delays, high detection accuracy, and a versatile changeover contact for integration with existing control systems. Its ability to pinpoint asymmetry within set thresholds protects equipment from long-term stress and reduces maintenance costs. In practical use, the relay prevents incorrect motor rotation, shields machinery from voltage drops, and ensures process continuity. Its slim 17.5 mm housing saves valuable control cabinet space, while robust insulation and recognized safety approvals guarantee reliable performance over time. This makes it a practical choice for manufacturing plants, chemical facilities, and building infrastructure alike.

Why Phoenix Contact EMD-BL-PH-480?

The Phoenix Contact EMD-BL-PH-480 is the smart choice for safeguarding three-phase networks. With its slim design, configurable settings, and clear LED indicators, it blends advanced monitoring with everyday practicality. Unlike standard relays, it doesn’t just detect faults—it actively prevents downtime by ensuring motors and control equipment always run with the correct phase balance. This model stands out for its precision, space-saving build, and reliability in demanding environments.

What Problem Does It Solve?

Unnoticed phase loss, incorrect wiring, or voltage imbalance can lead to severe motor damage, process interruptions, and costly repairs. The EMD-BL-PH-480 solves these issues by continuously supervising the power supply and instantly signaling abnormalities. By catching faults before they escalate, it prevents unplanned shutdowns, extends machine life, and reduces maintenance costs. It offers peace of mind for industries where uninterrupted operation is mission critical.

Key Features & Specifications – Phoenix Contact EMD-BL-PH-480 : 2903527

Download Phoenix Contact EMD-BL-PH-480 2903527 Datasheet

Commercial Data – Phoenix Contact EMD-BL-PH-480 : 2903527

The Applications of the Phoenix Contact EMD-BL-PH-480

1. Safeguarding Motors in Manufacturing Lines

In large factories, three-phase motors run conveyors, presses, and heavy machinery. If a phase is lost or reversed, the motor may overheat, vibrate abnormally, or stall. The EMD-BL-PH-480 continuously checks phase sequence and imbalance, shutting down systems before costly damage occurs. Its configurable delay avoids unnecessary trips during short disturbances, keeping production stable while still protecting equipment. By ensuring motors operate under balanced conditions, plants can minimize downtime, extend motor life, and reduce maintenance expenses.

2. Reliable HVAC Operation in Commercial Buildings

High-capacity HVAC systems depend on balanced three-phase input. An error in phase sequence or voltage imbalance can cause compressors to run inefficiently, leading to higher energy use or mechanical wear. With the EMD-BL-PH-480 installed, the system immediately detects irregularities, signaling faults with LEDs or isolating the equipment when needed. This quick response prevents damage to compressors and fans, while also ensuring uninterrupted climate control. Building operators benefit from lower energy costs, fewer service calls, and consistent comfort for occupants.

3. Protecting Pumps in Water Treatment Facilities

Water treatment plants operate pumps around the clock, and even minor electrical faults can disrupt operations. A missing phase or excessive imbalance puts pumps under stress, reducing flow and potentially causing overheating. The EMD-BL-PH-480 monitors each phase in real time, triggering an alarm or disconnect if conditions exceed safe limits. Adjustable asymmetry settings make it adaptable to different supply environments. By preventing seal failure or motor burnout, it ensures steady pumping performance and reduces the risk of unplanned service interruptions.

4. Ensuring Safe Generator Power Transfer

Hospitals, data centers, and critical infrastructure rely on backup generators when grid power fails. If the generator supply is out of sequence or unstable, switching loads onto it can damage sensitive equipment. Installed in transfer panels, the EMD-BL-PH-480 verifies correct phase sequence and balanced voltage before allowing the switchover. Its adjustable delay feature filters out brief instabilities, providing smooth transitions. This guarantees reliable backup power availability while protecting essential systems from harmful electrical conditions.
