Compact hybrid motor starter with reversing, overload protection, and SIL 3 safety. Ideal for reliable three-phase motor control up to 500 V and 9 A.

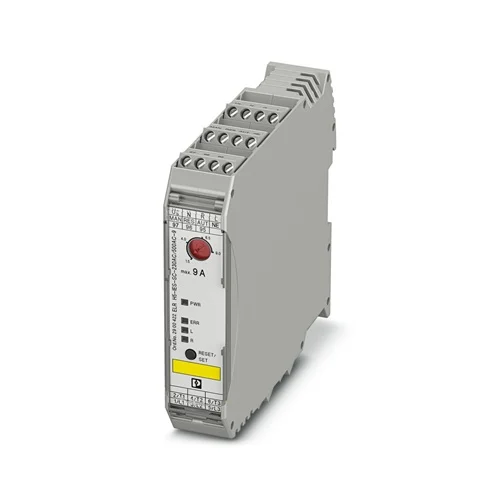

The Phoenix Contact ELR H5-IES-SC-230AC/500AC-9 hybrid motor starter provides a reliable way to control and protect three-phase AC motors up to 500 V and 9 A. With a slim 22.5 mm design and 230 V AC control input, it combines motor reversing, overload shutdown, and emergency stop protection in one unit. This reduces wiring work, saves space in panels, and ensures compliance with SIL 3 and PL e safety levels. Its hybrid switching design minimizes wear, offering extended service life and dependable performance in demanding automation tasks.
The ELR H5-IES-SC-230AC/500AC-9 hybrid motor starter is engineered to simplify installation while enhancing safety. Adjustable overload protection safeguards motors from damage, and integrated safety functions support quick emergency shutdowns. Built-in three-phase loop bridges streamline wiring, lowering installation effort and cost. Its DIN-rail mounting and compact footprint optimize control cabinet layouts. Low-wear switching extends product longevity, minimizing downtime and maintenance expenses. Suitable for conveyor lines, pump systems, and automated machinery, it ensures smooth and efficient operation while meeting strict industrial safety requirements.
Because it unites motor reversing, overload protection, and SIL 3 emergency stop functions in one slim device. The ELR H5-IES-SC-230AC/500AC-9 saves wiring time, reduces cabinet space, and extends service life with low-wear hybrid switching. It’s the smarter, safer, and more compact way to manage three-phase motors in demanding industries.
It eliminates the need for multiple components by integrating starting, protection, and safety functions into one compact hybrid motor starter. This not only reduces wiring errors and installation costs but also ensures reliable shutdown during overload or emergencies. With it, operators achieve higher uptime, safer systems, and simplified control cabinet design.
| Feature | Details | Benefit |
|---|---|---|
| Width | 22.5 mm | Saves control cabinet space with slim design |
| Motor Control Type | Reversing hybrid starter | Combines starting, reversing, and protection in one unit |
| Rated Control Voltage | 230 V AC (85…253 V AC range) | Flexible supply tolerance ensures reliability |
| Rated Operating Voltage | Up to 500 V AC | Supports a wide range of three-phase applications |
| Rated Operating Current | 9 A (AC-51) | Suitable for motors up to medium loads |
| Emergency Stop Function | SIL 3 / PL e certified | Meets highest functional safety standards |
| Switching Technology | Hybrid low-wear switching | Extends lifespan and reduces maintenance |
| Wiring Support | 3-phase loop bridges | Faster and error-free wiring setup |
| Mounting | DIN rail, vertical | Simple integration into control cabinets |
| Operating Temperature | -25 °C … +70 °C | Reliable operation in harsh environments |
| Approvals | UL, ATEX, CE, UKCA, DNV GL | Meets global safety and compliance standards |
Download Phoenix Contact ELR H5-IES-SC-230AC/500AC-9 (2900422) Datasheet
| Feature | Details | Benefit |
|---|---|---|
| GTIN Number | 4046356504683 | Provides standardized global identification for easy tracking and procurement |
| Traffic Number (Customs Tariff) | 85371098 | Ensures correct classification for international shipping and customs clearance |
| Weight | 222.64 g (net) / 315.8 g (with packing) | Lightweight design makes handling, transport, and cabinet installation more efficient |
| Country of Origin | Germany | German engineering guarantees high quality, reliability, and compliance with global standard |
In modern packaging facilities, conveyor belts must frequently change direction to position products accurately. The hybrid motor starter simplifies this by combining reversing, overload protection, and emergency stop in one device. Its compact design saves space in crowded panels, while its overload monitoring prevents damage during jams. By ensuring smooth motor switching, the system maintains production flow with minimal downtime.
Feed pumps in treatment plants often run under fluctuating loads and require dependable protection. With hybrid switching, motors can start and stop repeatedly without excessive wear. If an impeller is blocked, the overload shutdown prevents overheating and protects the equipment. The built-in emergency stop adds another layer of safety, ensuring reliable shutdown during abnormal flow conditions.
Industrial mixers demand both forward and reverse operation to maintain product quality. The hybrid motor starter delivers this functionality in a single, slim module, eliminating the need for multiple contactors. Low-wear switching reduces stress on mechanical couplings, while the integrated safety functions allow operators to react quickly in hazardous conditions. This results in extended machine life and improved plant safety.
Large dust extraction units are critical in woodworking to maintain safe working conditions. The hybrid motor starter enables secure start-up, monitors motor current for overload caused by filter clogging, and shuts down instantly if a safety circuit is triggered. Its reliable operation helps maintain consistent airflow, reduces fire hazards, and ensures compliance with workplace safety standards.
| Category | Model | Part Number | Benefit |
|---|---|---|---|
| Loop Bridge (2 modules) | BRIDGE-2 | 2900746 | Simplifies wiring between two starters |
| Loop Bridge (3 modules) | BRIDGE-3 | 2900747 | Faster installation for multiple starters |
| Loop Bridge (4 modules) | BRIDGE-4 | 2900748 | Expands wiring efficiency in multi-starter setups |
| Loop Bridge (5 modules) | BRIDGE-5 | 2900749 | Ensures neat, safe, and reliable connections |
| Extended Loop Bridge | BRIDGE-2-1M | 2901542 | Flexible wiring in larger control panels |
| Extended Loop Bridge | BRIDGE-3-1M | 2901655 | Greater reach for modular starter systems |
| Extended Loop Bridge | BRIDGE-4-1M | 2901658 | Optimized for extended installations |
| Extended Loop Bridge | BRIDGE-5-1M | 2901544 | Supports modular expansion with ease |
| Plastic Label Card | US-EMLP (15×5) | 0828790 | Provides clear, professional labeling |
| Plastic Label Sheet | UC-EMLP (15×5) | 0819301 | Helps maintain organized identification |
