$ 181.93

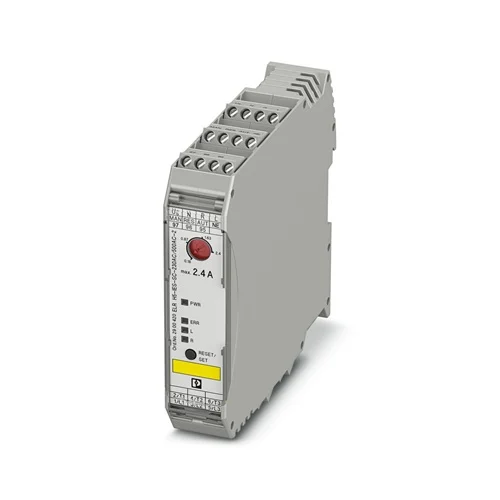

Phoenix Contact ELR H5-IES-SC-230AC/500AC-2 hybrid motor starter with reversing, overload, and SIL 3 safety for compact, reliable motor control.
The Phoenix Contact ELR H5-IES-SC-230AC/500AC-2 Hybrid Motor Starter delivers reliable reversing control for three-phase AC motors up to 500 V AC and 2.4 A. Designed with a slim 22.5 mm housing, it helps engineers save valuable panel space while improving system safety. Built-in overload shutdown and an emergency stop function certified up to SIL 3/PL e provide advanced protection for both equipment and personnel. By combining compact design, dependable switching, and simplified wiring, this hybrid motor starter tackles common challenges in modern automation systems where safety, efficiency, and durability are critical.
The Phoenix Contact ELR H5-IES-SC-230AC/500AC-2 integrates motor reversing, protective functions, and safety features into one compact unit. Its hybrid switching technology reduces wear, extends service life, and lowers maintenance requirements. Adjustable current settings ensure flexibility for various motor loads, while LED indicators make status and fault monitoring straightforward. The result is shorter installation time, reduced wiring effort, and improved uptime. Industrial users benefit from increased reliability in demanding applications such as conveyor lines, machine building, and automated processes, where stable operation and certified safety functions are essential for maintaining productivity and minimizing downtime.
The Phoenix Contact ELR H5-IES-SC-230AC/500AC-2 Hybrid Motor Starter is the ideal choice for industries that demand safe, compact, and efficient motor control. Its hybrid switching reduces mechanical wear, extending service life and cutting downtime. With integrated reversing, overload protection, and SIL 3/PL e certified emergency stop in one unit, it simplifies design and installation. Engineers choose it because it combines reliability, safety, and space-saving performance in a single innovative package.
Motor control often requires multiple devices, wiring complexity, and compromises in safety. The ELR H5-IES-SC-230AC/500AC-2 solves this by merging several critical functions—reversing, protection, and emergency stop—into a single compact solution. It addresses the problem of wasted panel space, time-consuming installation, and costly maintenance. By reducing wiring and integrating advanced safety features, it ensures dependable operation, lower lifecycle costs, and peace of mind in demanding industrial environments.
| Feature | Details | Benefit |
|---|---|---|
| Rated Control Voltage | 230 V AC (85–253 V AC range) | Flexible input ensures compatibility with standard systems |
| Motor Starter Type | Hybrid reversing starter | Combines reversing, protection, and safety in one device |
| Maximum Motor Voltage | Up to 500 V AC | Suitable for a wide range of industrial motor applications |
| Rated Current | 2.4 A (AC-51/AC-53a) | Reliable performance for small and medium-sized motors |
| Safety Certification | SIL 3 / PL e | High-level protection for people and machinery |
| Switching Technology | Hybrid low-wear switching | Extends service life and reduces maintenance |
| Housing Width | 22.5 mm | Saves panel space and allows compact installations |
| Status Indication | LED indicators (green, yellow, red) | Clear visual feedback for operation, status, and faults |
| Mounting Type | DIN rail, vertical installation | Quick installation and alignment with other components |
| Environmental Conditions | -25 °C to +70 °C, IP20 | Operates reliably in demanding environments |
| Service Advantage | Reduced wiring effort | Lowers installation time and costs while minimizing errors |
Download Phoenix Contact ELR H5-IES-SC-230AC/500AC-2 (2900420) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356504065 |
| Tariff Number | 85371098 |
| Weight (Net / With Packaging) | 223.13 g / 313 g |
| Country of Origin | Germany (DE) |
Modern packaging facilities rely on conveyor belts that often change direction to reroute products. This motor starter simplifies the process by combining reversing and overload protection in one compact device. The hybrid switching reduces mechanical wear, while the slim design saves control cabinet space. If a blockage occurs, the integrated emergency stop guarantees a rapid shutdown, protecting both operators and equipment. The result is a highly reliable and space-efficient control solution that minimizes downtime and maintenance in continuous 24/7 production environments.
Gantry cranes in warehouses and factories require precise directional control and dependable safety mechanisms. The ELR H5-IES-SC-230AC/500AC-2 offers smooth reversing capabilities, ensuring accurate handling when lifting or moving heavy loads. Its adjustable overload protection helps prevent damage from overcapacity situations, while built-in safety compliance to SIL 3 / PL e ensures personnel protection. The compact width and reduced wiring demand simplify installation across large crane systems, lowering setup time and ensuring reliable operation in demanding logistics or industrial conditions.
Textile machines, such as weaving or spinning equipment, demand frequent reversing operations to adjust fabric tension or correct alignment. This hybrid motor starter integrates reversing control with motor protection, avoiding the need for multiple components. Its adjustable current settings adapt to fluctuating mechanical loads, while LED indicators make troubleshooting faster during machine adjustments. When a jam or overload occurs, the emergency stop function prevents costly downtime and safeguards both the operator and delicate machine components. Its compact design enables placement close to the drive, ensuring efficient control in space-limited machinery layouts.
In water treatment, chemical plants, and food processing, pumps often need to alternate between filling and draining operations. This motor starter allows efficient bidirectional pump control while protecting against overload or dry running. Hybrid switching technology ensures longevity even under frequent starts and stops, typical in these environments. The emergency stop function ensures quick reaction in case of leaks or system failures, improving safety. By consolidating reversing, motor protection, and safety into one device, the starter reduces wiring complexity and maintenance costs, making it an optimal choice for harsh or high-demand process conditions.
| Category | Model / Accessory | Part Number | Benefit |
|---|---|---|---|
| Loop Bridges (Short Length) | BRIDGE-2 | 2900746 | Connects 2 CONTACTRON modules, simplifies wiring |
| BRIDGE-3 | 2900747 | For 3 modules, efficient multi-device connection | |
| BRIDGE-4 | 2900748 | Links 4 modules, saves cabinet space | |
| BRIDGE-5 | 2900749 | For 5 modules, faster installation | |
| BRIDGE-6 | 2900750 | Connects 6 modules, reduces wiring errors | |
| BRIDGE-7 | 2900751 | For 7 modules, compact cabinet wiring | |
| BRIDGE-8 | 2900752 | Suitable for 8 modules, robust design | |
| BRIDGE-9 | 2900753 | For 9 modules, efficient parallel connection | |
| BRIDGE-10 | 2900754 | Handles 10 modules, ensures quick assembly | |
| Loop Bridges (Extended Cable) | BRIDGE-2-1M | 2901542 | 1 m cable length, flexible installation |
| BRIDGE-3-1M | 2901655 | For 3 modules with extended spacing | |
| BRIDGE-4-1M | 2901658 | For 4 modules, 1 m flexibility | |
| BRIDGE-5-1M | 2901544 | 5 modules, extended connection | |
| BRIDGE-6-1M | 2901649 | For 6 modules with cable reach | |
| Loop Bridges (3 m Cable) | BRIDGE-2-3M | 2901543 | Long distance 2-module connection |
| BRIDGE-3-3M | 2901656 | Extended 3-module wiring | |
| BRIDGE-4-3M | 2901659 | 4 modules, wide cabinet layouts | |
| BRIDGE-5-3M | 2901545 | Reliable 3 m wiring for 5 modules | |
| BRIDGE-6-3M | 2901697 | Long wiring span, 6 modules | |
| BRIDGE-7-3M | 2901698 | For 7 modules, extended flexibility | |
| BRIDGE-8-3M | 2901700 | 8 modules, large panel coverage | |
| BRIDGE-9-3M | 2901701 | For 9 modules across wide spacing | |
| BRIDGE-10-3M | 2901702 | Maximum span, 10 module connection | |
| Special Bridges | BRIDGE-2-2M/0.3M | 2909897 | 2 modules, flexible short/long cable |
| BRIDGE-3-2M/0.3M | 2909898 | For 3 modules, hybrid connection | |
| BRIDGE-4-2M/0.3M | 2909899 | 4 modules, 0.3 m inter-module cable | |
| Labels | US-EMLP (15×5) | 0828790 | White plastic label card, adhesive, unmarked |
| UC-EMLP (15×5) | 0819301 | White sheet label, adhesive, compatible with marking systems |
