Compact hybrid motor starter with IO-Link, overload protection, and SIL 3 safety for reliable, efficient three-phase motor control up to 500V AC.

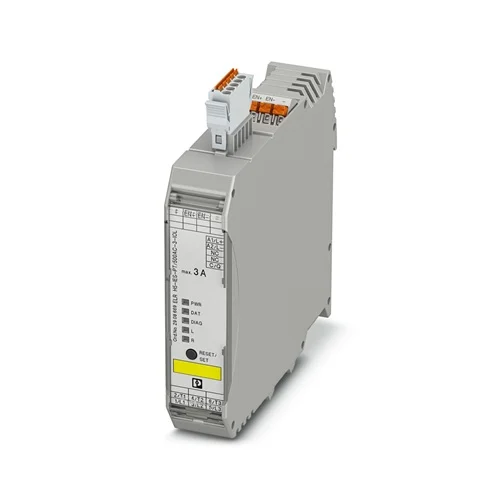

The Phoenix Contact ELR H5-IES-PT/500AC-3-IOL Hybrid Motor Starter is a compact and efficient device designed for reversing three-phase AC motors up to 500 V AC and 3 A. It integrates electronic and electromechanical switching to ensure long service life while providing reliable motor protection. With IO-Link connectivity, the starter allows seamless integration into modern automation systems. Safety is built-in with overload protection and SIL 3/PL e emergency stop functionality. Combined with quick push-in wiring, this solution reduces installation effort, improves operational reliability, and helps industries enhance productivity through streamlined motor control.
The ELR H5-IES-PT/500AC-3-IOL offers real-world advantages by merging advanced control with simplified installation. Its hybrid design minimizes contact wear, lowering maintenance needs and increasing uptime. Integrated IO-Link communication provides valuable diagnostic data, enabling predictive maintenance and reducing unexpected downtime. Safety features such as rapid emergency shutdown and overload response improve system protection in demanding environments. Push-in connections shorten wiring time and minimize errors, making it ideal for high-volume installations. Whether applied in conveyors, pumps, or ventilation systems, the starter ensures smoother operation, energy efficiency, and a longer service life—delivering both technical performance and cost savings.
Because it merges smart digital connectivity with rugged hybrid switching, offering reliable motor control in one compact device. This model saves space, simplifies wiring, extends service life, and provides real-time diagnostics through IO-Link, making it a future-proof choice for industries that demand both safety and efficiency in motor management.
The ELR H5-IES-PT/500AC-3-IOL eliminates frequent downtime and high maintenance costs caused by conventional starters. By combining overload protection, fast emergency shutdown, and hybrid wear-resistant switching, it prevents failures before they escalate. It solves the challenge of integrating motor control with modern automation, giving industries safer, smarter, and more efficient motor operation.
| Feature | Details | Benefit |
|---|---|---|
| Rated Operating Voltage | Up to 500 V AC | Suitable for a wide range of three-phase motor applications |
| Rated Current | 3 A | Provides reliable control for small to medium loads |
| Control Supply Voltage | 24 V DC (19.2…30 V range) | Compatible with common automation control systems |
| Emergency Stop Function | SIL 3 / PL e certified | Delivers maximum safety in critical industrial operations |
| Overload Protection | Adjustable shutdown | Prevents equipment damage and costly downtime |
| IO-Link Connectivity | Version 1.1.1 | Enables smart diagnostics, predictive maintenance, and remote monitoring |
| Connection Method | Push-in terminals | Fast, tool-free wiring that reduces installation time |
| Housing Width | 22.5 mm DIN rail mount | Compact size saves valuable panel space |
| Operating Temperature | -5 °C to +55 °C | Reliable performance across demanding environments |
| Degree of Protection | IP20 | Safe for use in standard industrial control cabinets |
| Switching Frequency | ≤ 2 Hz | Optimized balance between performance and component life |
Download Phoenix Contact ELR H5-IES-PT/500AC-3-IOL 2908669 Datasheet
In modern food production plants, conveyor belts operate continuously, transporting materials between washing, cutting, and packaging stations. The hybrid motor starter ensures smooth operation with reliable forward and reverse control, which is critical for clearing jams without damaging the system. IO-Link connectivity provides operators with valuable data, such as overload tendencies or irregular current draw, so problems can be solved before they cause costly downtime. The integrated SIL 3 emergency stop enhances workplace safety, while push-in wiring reduces installation complexity. This combination results in greater throughput, safer handling, and reduced service interruptions in demanding environments.
Large office towers and shopping complexes rely on ventilation and HVAC systems to regulate air quality and temperature. The hybrid motor starter provides dependable switching for fan motors, supporting both forward and reverse airflow when required. Through IO-Link, facility managers gain remote access to performance data, enabling proactive adjustments and predictive maintenance. Overload protection safeguards against obstructions like blocked filters, while the emergency stop ensures rapid response in fire or safety incidents. The device’s compact size helps optimize panel space, making it easier to integrate into existing systems. The result is cleaner air, energy savings, and fewer unexpected breakdowns.
High-speed packaging systems require precise motor control to handle rollers, sealing units, and indexing mechanisms. Frequent reversing motion for clearing jams is made easier by the hybrid design, which combines the durability of mechanical relays with the speed of electronic switching. IO-Link communication delivers diagnostic insights, such as motor heating or overcurrent warnings, helping teams address issues before they escalate. Emergency stop functions ensure worker and equipment safety during critical events. The push-in wiring system accelerates assembly in production lines with numerous motors. This reduces machine downtime, minimizes waste from damaged packaging, and supports continuous production output.
Pump systems often face variable load conditions, such as sudden pressure changes or blocked flow paths. The hybrid motor starter handles these challenges by reducing electrical wear during frequent switching, thereby extending motor life. Built-in overload protection prevents damage caused by dry running or excessive torque. IO-Link enables operators to monitor pump status, energy consumption, and fault data remotely, ensuring timely intervention. In case of emergencies, the SIL-rated stop function provides a secure and immediate shutdown. Compact dimensions and tool-free wiring simplify integration into control panels. Together, these features deliver reliable water management, lower maintenance costs, and safer operations.
| Category | Model / Accessory Name | Part Number | Benefit |
|---|---|---|---|
| Loop Bridge (1 Module) | BRIDGE-PT 1 | 1161777 | Provides 3-phase loop connection for one CONTACTRON module, simplifying wiring. |
| Loop Bridge (2 Modules) | BRIDGE-PT 2 | 2904490 | Connects two modules in parallel, reducing cabling effort. |
| Loop Bridge (3 Modules) | BRIDGE-PT 3 | 2904491 | Enables easy connection of three modules with push-in technology. |
| Loop Bridge (4 Modules) | BRIDGE-PT 4 | 2904492 | Designed for four-module configurations, streamlines panel wiring. |
| Loop Bridge (5 Modules) | BRIDGE-PT 5 | 2904493 | Extends reliable 3-phase bridging for five CONTACTRON units. |
| Loop Bridge (6 Modules) | BRIDGE-PT 6 | 2904494 | Facilitates multi-unit wiring up to six modules. |
| Loop Bridge (7 Modules) | BRIDGE-PT 7 | 2904495 | Efficient solution for parallel wiring of seven modules. |
| Loop Bridge (8 Modules) | BRIDGE-PT 8 | 2904496 | Designed for extended eight-module installations. |
| Loop Bridge (9 Modules) | BRIDGE-PT 9 | 2904497 | Supports nine-module connection with minimal cabling. |
| Loop Bridge (10 Modules) | BRIDGE-PT 10 | 2904498 | For larger assemblies, ensuring stable 3-phase distribution. |
| Loop Bridge (1m Cable) | BRIDGE-PT 1-1M | 1161778 | Compact bridge with shorter cable for one module. |
| Loop Bridge (2 Modules, 1m Cable) | BRIDGE-PT-2-1M | 1049407 | Short cable version for two-module setups. |
| Loop Bridge (3 Modules, 1m Cable) | BRIDGE-PT-3-1M | 1049408 | Space-saving connection for three modules. |
| Loop Bridge (4 Modules, 1m Cable) | BRIDGE-PT-4-1M | 1049409 | Provides short-distance bridging for four units. |
| Loop Bridge (5 Modules, 1m Cable) | BRIDGE-PT-5-1M | 1049413 | Simplifies wiring in tighter cabinet spaces. |
| Loop Bridge (2 Modules, 0.3m spacing) | BRIDGE-PT-2-2M/0,3M | 1107649 | Flexible cable for two modules with spacing needs. |
| Loop Bridge (3 Modules, 0.3m spacing) | BRIDGE-PT-3-2M/0,3M | 1107650 | Ensures reliable bridging with separation allowance. |
| Loop Bridge (4 Modules, 0.3m spacing) | BRIDGE-PT-4-2M/0,3M | 1107644 | Useful in layouts requiring module separation. |
| Device Labeling | US-EMLP (15×5) Plastic Label | 0828790 | Adhesive white label card, compatible with Phoenix Contact marking systems. |
| Device Labeling | UC-EMLP (15×5) Plastic Label | 0819301 | Sheet-style labeling option for clear device marking. |
| Software Tool | IOL-CONF Configuration Software | 1083065 | Browser-based software for easy startup and diagnostics of IO-Link devices. |
